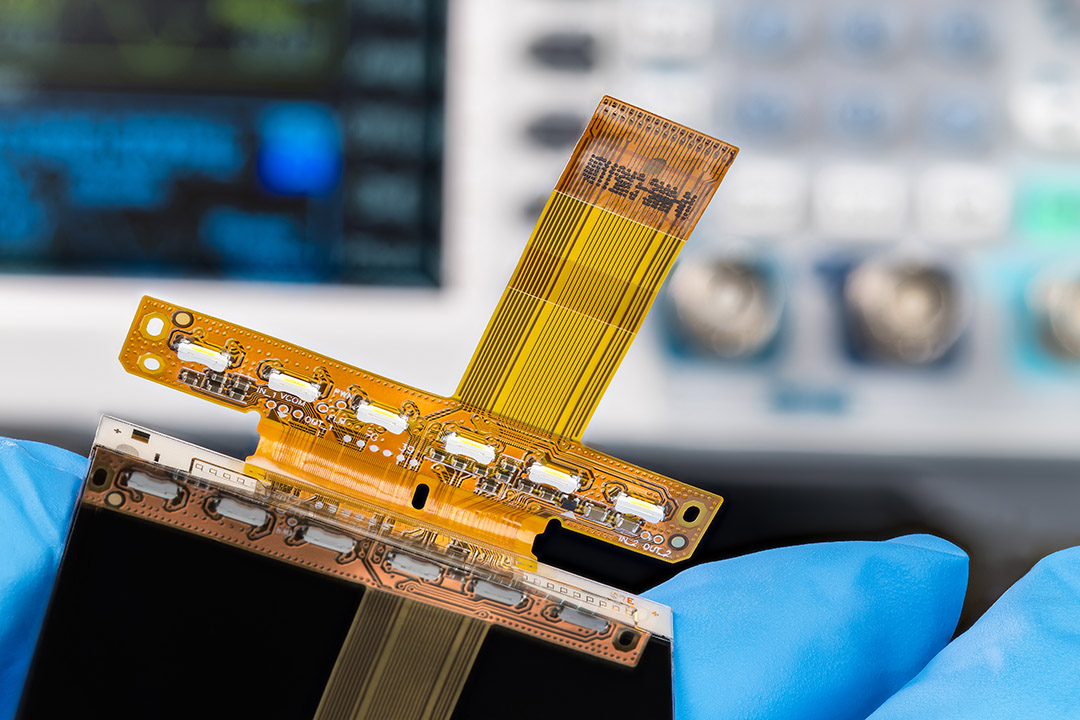

Introduction to Flex PCB Assembly

Electronic technology innovation continuously propels industrial advancement, with flexible circuit board assembly technology evolving into a cornerstone of modern electronics manufacturing and high-end product design. In fields once dominated by rigid circuit boards, flexible PCBs and rigid-flex assembly processes are now being integrated. These technologies support compact designs and high reliability across a wide range of applications, spanning from wearable health monitoring devices to aerospace systems.Traditional views of printed circuit boards as flat and fragile components are shifting toward flexible, high-performance, and three-dimensionally compatible assembly solutions.These solutions provide the necessary design freedom, reliability, and space efficiency for ever-shrinking devices and increasingly complex circuits.

What is a Flex PCB? Core Concepts & Flexible PCB Materials

Flexible printed circuit boards, commonly referred to as flexible PCBs, are a type of circuit board manufactured using flexible materials as the substrate. The substrate materials for such boards primarily consist of polyimide films or polyester films. Compared with the fixed form of traditional rigid PCBs, flexible PCBs can repeatedly withstand bending and torsional stresses during the entire assembly stage and in actual operating conditions. They can also undergo folding processes and be shaped into various three-dimensional structures according to practical assembly requirements.

Key Flex PCB Materials:

Benefits of Flexible Materials: Flexible polyimide substrates exhibit excellent bending resistance, capable of withstanding up to thousands of repeated bending cycles. The cover layer structure provides reliable protection for the internal copper foil circuits. It also significantly enhances the overall chemical corrosion resistance and surface scratch resistance of the circuit board. The comprehensive performance of such flexible PCB materials ensures stable operation of circuit systems in extreme environments. Whether in space aerospace equipment or human medical implantable devices, they can rely on these materials to achieve long‑term and reliable functionality.

Types of PCBs: Flex, Rigid, Rigid-Flex, and Multilayer Solutions

Modern PCB fabrication encompasses a vast landscape of design options:

1. Rigid PCB: Classic, single- or multi-layer rigid circuit board.
2. Flex PCB (Flexible Circuit Board): Fully flexible; single-layer, double-sided flex, or multilayer flex circuits.
3. Rigid-Flex PCB: Combines stable rigid sections (for heavyweight connectors or chips) with flex sections for tight navigation.
4. Multilayer Rigid-Flex: Multiple layers of flexible and rigid materials, capable of extreme routing density and robust 3D form.

LHD TECH’S Benefits of Flexible PCBs and Flex Assemblies

Why do LHD TECH insist on flexible PCB fabrication for critical products?

• Design Freedom:Our flex circuits route through tight, contoured enclosures and move with the end product (think wearable devices or foldable displays).
• Space and Weight Savings:Ultra-thin substrates and layers support compact, lightweight designs. Flex pcbs are up to 70% lighter than their rigid counterparts.
• Reliability in Harsh Environments:Flexible circuit and rigid-flex PCB assemblies resist vibration, repeated bending, temperature variation, and chemical exposure.
• Reduced Connectors and Solder Joints:Eliminating board-to-board connectors reduces failure points, increases signal integrity, and simplifies assembly.
• Streamlined PCB Assembly Process:Our PCB assemblies using flex and rigid-flex speed up final device assembly, especially for high-reliability and high-mix electronic manufacturing.

LHD TECH’S Flex PCB Manufacturing and Fabrication Process

1. Circuit & PCB Design

At the heart of every successful flex PCB is a robust circuit design stage. Our engineers determine the layout of the circuit, choosing the number and arrangement of flex layers and rigid sections, specifying connector placement, and carefully defining bend zones. It’s essential to decide where stiffener materials will reinforce areas near connectors or heavy components, minimizing stress and prolonging the board’s lifespan.

2. Substrate Preparation and Material Selection

The selection of substrate materials determines both the actual bending durability of flexible circuit boards and their adaptability to operational environments. The industry commonly employs high-performance polyimide or specially engineered flexible polyimide laminate materials as substrates. These material systems exhibit significantly superior performance in critical metrics such as high-temperature resistance, chemical corrosion resistance, and mechanical strength when compared to traditional rigid circuit boards. The specific selection of adhesives and copper foils requires systematic matching based on the overall thickness parameters of the board, actual mechanical load requirements, and predetermined environmental tolerance ratings.

3. Imaging, Etching, and Lamination

During the printed circuit board manufacturing process, the production facility first applies a uniform layer of photoresist onto the copper surface. Subsequently, precision imaging tools such as laser direct imaging or traditional photolithography are used to accurately transfer the pre‑designed circuit pattern onto the photoresist layer, thereby defining the final circuit pattern.

• Copper is etched away—leaving only the designed traces.
• Multilayer boards are built up through sequential lamination, using adhesive films and precise registration.
• Coverlaypolyimide or solder mask is laminated and laser-cut to expose pads for soldering components later.

4. Drilling and Via Plating

Ultra-precise drilling forms holes for vias (electrical connections) and component leads. In flex and rigid-flex designs, microvias allow vertical routing without sacrificing flexibility.

• Critical points:Laser drilling is standard for high-density flexible pcb fabrication.
• Plated through holes connect layers across both rigidand flexible circuit.

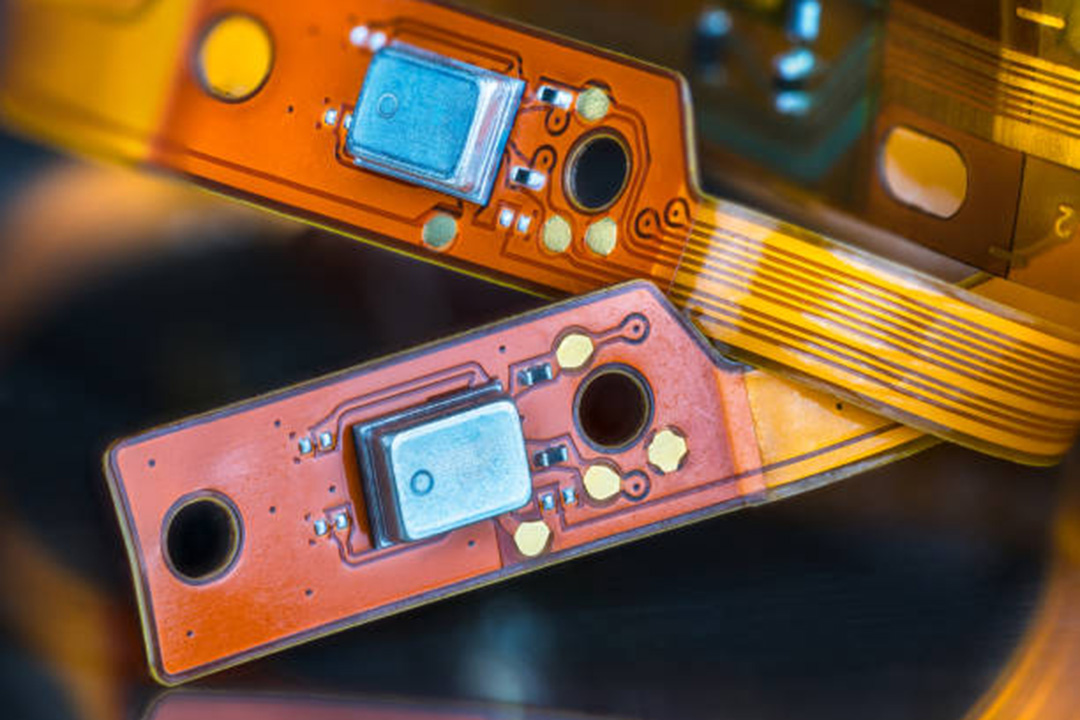

5. Assembly: Component Mounting and Soldering

In the assembly phase, components are mounted using surface mount or through-hole techniques.

• SMT is generally preferred, using fine-pitch BGAs, chip-scale packages, and flexible connectors.
• Reflow soldering with carefully controlled profiles protects sensitive substrates and prevents warping in flex boards.
• Rigid-flex and rigid board zones provide support for heavier connectors and high-pin-count ICs.

6. Stiffener, Coverlay, and Final Lamination Application

Where reinforcement is necessary—such as under connectors or along edge contacts—stiffener materials (FR-4, polyimide, or stainless steel) are laminated to the flex printed circuit board.

• Adhesive is applied only where needed, allowing the rest of the flex circuit to bend freely.
• Coverlay protects traces and pads, eliminates solder bridging, and improves flex durability over repeated flex cycles.

7. Testing, Inspection, and Quality Assurance

In the manufacturing of finished flexible printed circuit board assemblies and rigid-flex board solutions, the standard inspection process encompasses a series of critical tests. Automated Optical Inspection (AOI) is employed to comprehensively examine circuit appearance and soldering quality. X-ray inspection is specifically utilized to analyze the internal structural integrity of concealed solder joints such as BGA connections. Electrical testing includes continuity testing and insulation resistance measurement, which verify the accuracy of circuit connections and the performance of electrical insulation. Mechanical bend testing and flex cycle endurance evaluation assess the board’s durability and reliability under repeated bending conditions.

• Bend testing:Repetitive flexing to simulate real-world product use.
• Functional testing:Verifies circuit operation before shipping.
• Environmental/thermal cycling:Ensures the board fabrication is robust for harsh environments.

LHD TECH’S Best Practices for Flex PCB Design and Assembly

To ensure your flexible circuit projects succeed:

1. Communication:Share detailed stackups, assembly notes, and reliability targets with your LHD TECH
2. Mechanical Modeling:Simulate flex and rigid-flex routes using CAD, including all connectors, bends, and mechanical interfaces.
3. Panelization and Depaneling:Plan for panel support during the flex pcb manufacturing process—avoid scoring through flex zones and use laser depaneling when possible.
4. Choose the Right Connectors:Flex circuits often connect to rigid boards via ZIF, FPC, or custom flex connectors; always consider long-term mating cycles and insertion force.
5. Protect Circuit Integrity:Avoid via-in-pad for flex areas; stagger vias between layers. Select solder masks and adhesives compatible with flex cycles and environmental conditions.

Conclusion: Flex and Rigid-Flex PCBs—the Future of PCB Assembly

Flexible circuit board assembly and rigid-flex board solutions are shaping the form of next-generation electronic products. Their application scope spans high-end wearable devices and implantable medical instruments, extending to new-generation aerospace systems and modern automotive electronics. This technology system integrates multi-dimensional design flexibility and stable flexible circuit performance while achieving efficient solder joint management and mechanical robustness of connectors. Combined with innovative substrate selection and layered construction methods, it collectively forms an indispensable core technological foundation in modern electronics manufacturing.
