    Introduction to Industrial PCBs and Printed Circuit Boards for Industrial Use

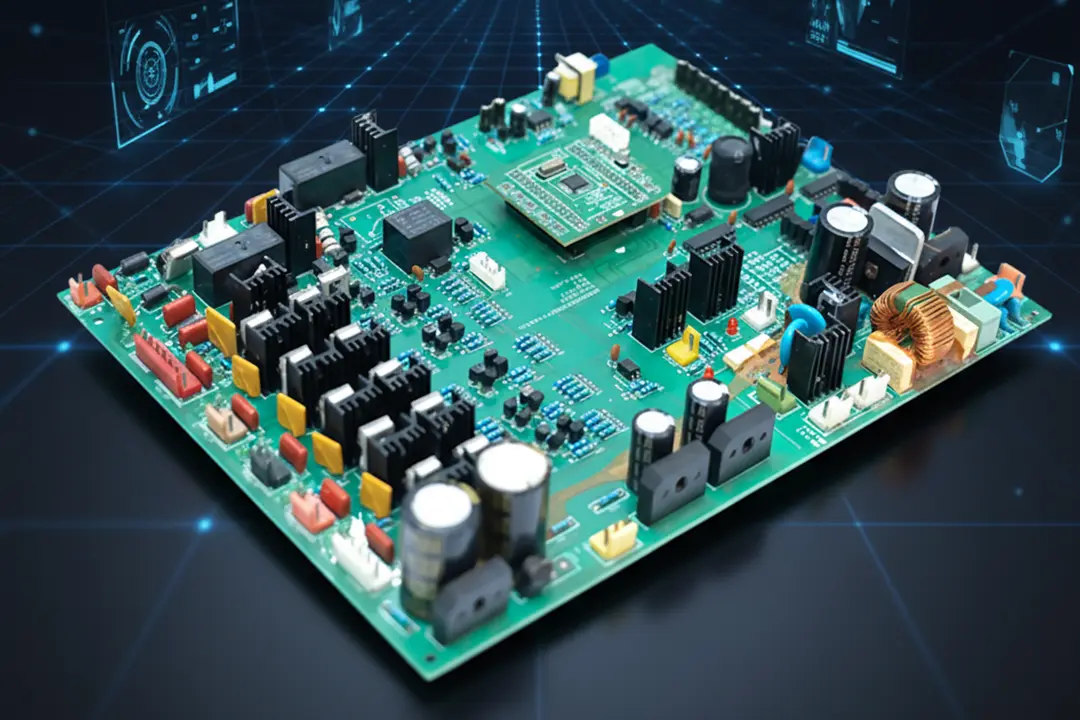

    industrial-pcb-production​



    Printed circuit boards (PCBS), as the “heart” of electronic systems, provide an indispensable foundation for almost everycircuit in today’s industrial systems and advanced manufacturing, control and automation process. Not all circuit boards can handle the harsh industrial environment – LHD TECH has been deeply engaged in the industrial pcbs field, and its products crafted with meticulous care are specifically designed to meet the needs of high-intensity industrial applications. Under extreme working conditions such as high temperature, mechanical stress, high humidity, vibration and electrical shock, ordinary consumer-grade circuit boards often struggle to withstand them. However, LHD TECH’s industrial PCBS ensure the continuous and stable operation of the system with their outstanding reliability.



    The industrial PCBS produced by LHD TECH, with their excellent performance and ultimate reliability, are widely used in critical fields such as industrial equipment, motor control systems, aerospace navigation, and renewable energy, where there are extremely high requirements for space, heat dissipation and environmental adaptability. Amid the accelerating wave of intelligent manufacturing, industrial Internet of Things and Industry 4.0, LHD TECH, with high-quality PCBS as its foundation, helps electronic systems move towards a smarter, safer and more resilient future.



    Types of Industrial PCBs: Circuit Boards for Every Industrial Application

    Industrial-grade circuit boards cover a wide range of design topologies and specification systems, each of which is tailor-made for specific industrial application scenarios and harsh environmental levels to achieve the best match of performance, reliability and adaptability to working conditions.



    PCB TypeOptimized ForIndustrial Application Examples
    Single-sided PCBSimple controls, cost-efficiencySensor relay boards, basic motor control
    Double-sided PCBHigher component densityPLC modules, compact power supplies
    Multilayer PCBComplex routing, EMI controlAdvanced control systems, industrial IoT hubs
    Rigid PCBSturdy, affordable, good for mountingIndustrial machinery panels, transformers
    Flexible PCBsBending/folding in tight spacesRobotics arms, wearable safety tech
    Rigid-Flex PCBsDynamic, hybrid environmentsAerospace avionics, mobile test equipment
    IMS/Metal Core PCBHigh power, thermal reliabilityLED lighting, industrial drives, RF modules
    High-Frequency PCBRF/microwave, signal integrityAntennas, industrial wireless, sensor arrays
    Heavy Copper PCBHigh current, thermal diffusionEV chargers, industrial motor drives
    Ceramic PCBExtreme temperatures, inertDownhole drilling, satellite communications

    Used for Industrial Control, Aerospace & More:

    • Motor control systems for variable-speed drives.
    • Aerospace instrumentation and navigation.
    • Telemetry in industrial IoT and smart monitoring.
    • Power conversion for renewable energy and grid interfaces.
    • High-frequency signal routing in 5G and RF communication.

    Key PCB Materials and Copper Thickness for Industrial Circuit Boards

    The choice of PCB materials directly impacts print circuit board performance in industrial applications. Durable laminate material like FR-4 (with high Tg ratings for stability at high temperatures), polyimide, IMS cores, and ceramics provide the foundation for long service life.



    Common Industrial PCB Materials and Uses

    MaterialPrimary BenefitCircuit Board Designs Used In
    High-Tg FR-4High-temp stability, cost-effectiveMotor control, automation panels
    PolyimideExtreme thermal cycling, flexible PCBsRobotics, rigid-flex pcbs
    Ceramic/AluminaInert, heat resistant, high-frequency appsSatellite/aerospace, downhole equipment
    IMS (metal core)Superior heat spreading, mechanical strengthHigh-power LEDs, RF amplifiers
    Heavy CopperCarries very high currentBattery chargers, power infrastructure

    Copper Thickness: Why It Matters

    • Copper traces and pours must be thick enough to carry current and handle high temperatures.
    • For industrial printed circuit boards, 2–6 oz/ft² is common, much higher than typical commercial boards.
    • The right copper thickness is essential for reliability in high-current motor control, grid equipment, and demanding environmental conditions found in many industrial applications.

    Advanced PCB Surface and Soldering Techniques

    • ENIG and hard gold finishes: A nickel layer (≥5 µm) is adopted as the diffusion barrier layer, and ENIG gold thickness (0.05-0.1 µm) provides anti-oxidation and solderability guarantees, with excellent surface flatness. The hardgold is thick (≥25 µm) and cobalt or nickel elements are introduced to enhance the hardness
    • Lead-free solder: It is a key process path for electronic manufacturing to meet the mandatory requirements of RoHS and REACH environmental protection regulations. Its melting point is higher (217-221°C), which puts forward higher requirements for the heat resistance of the sheet, the adhesion of the copper layer and the compatibility of surface treatment.
    • Automated optical inspection (AOI): The AOI system integrates high-precision optical imaging with intelligent image algorithms, featuring significant advantages such as high speed, high repeatability, and full data traceability. It performs key inspection functions in both the PCB manufacturing (bare board) and PCBA assembly stages.

    Design Standards and Quality Control for Industrial Printed Circuit Boards

    Compliant pcb fabrication strictly adhere to a series of internationally recognized industry standards during the circuit board manufacturing process to build certified PCBS from design to delivery. These stringent standards include IPC-A-610 (Acceptability of electronic components), IPC Class 3 (Performance classification of high-reliability Electronic Products), UL 796 (Safety Certification for Printed Circuit Board Substrates), and IEC 61188 (Standards related to the design, manufacture and assembly of printed circuit boards). Together, they form the core guarantee system for industrial-grade PCBS in terms of high reliability, safety and manufacturability.



    Standard/CertificationRelevant ToIndustrial Use Case
    IPC Class 3High-reliability manufacturingAerospace, defense, medical PCBs
    IPC-6012 AutomotiveVibration/durabilityEVs, rail, heavy vehicle boards
    IEC-61188Layout, materials testingFactory controllers, automation
    UL 796Flame, dielectric strengthGrid power, industrial panels
    ISO 9001, IATF 16949Quality control, traceabilityAny demanding factory electronics

    The Role of Quality Control in High-Quality PCBs

    • Automated optical and X-ray inspection at every stage.
    • Batch traceability with QR/barcoding.
    • 100% E-test electrical validation.
    • Conflict minerals and anti-counterfeit protocols.

    Characteristics of Industrial PCBs: Mechanical Stress, Durability, and Reliability

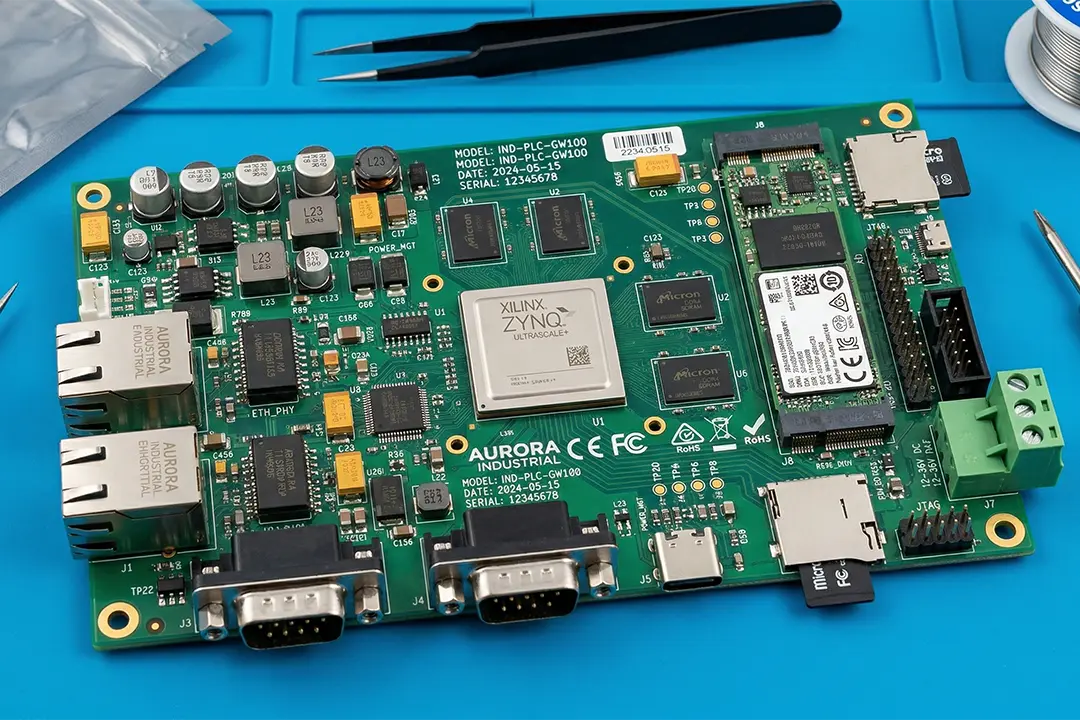

    pcb-industry​



    Characteristics of industrial pcbs set them apart from commercial boards:

    • Able to withstand mechanical stress: Industrial equipment is often accompanied by continuous mechanical vibration and sudden shock during operation. By choosing core board materials with a thickness of ≥6mm or even customized thicknesses, the overall rigidity of the board can be enhanced. Resin filling and copper capping are applied to through holes and blind buried holes to eliminate voids inside the holes.
    • Excellent durability and reliability: The life cycle of PCBS in industrial machinery, mining, aerospace and other equipment is often required to exceed ten years, and substrates with high Tg (≥170°C) and low CTE (coefficient of thermal expansion) need to be adopted. Increase the copper thickness (inner layer ≥2oz, outer layer ≥1oz); Carry out high-temperature and high-humidity tests.
    • Chemical and moisture resistance: Industrial sites often encounter corrosive environments such as oil stains, chemical corrosion, high humidity and salt spray. High-resolution LPI (liquid photosensitive) solder mask ink is adopted. Select acrylic, polyurethane or silicone conformal coating for the application grade. Perform overall potting on modules exposed to extreme environments.
    • High signal integrity: In industrial communication, high-frequency sensing and radio frequency applications, signal integrity directly determines the performance boundary of the system. Accurately calculate the impedance of microstrip lines and stripline based on the stacked structure and dielectric constant. Complete ground layers are set between the key signal layers, and ground hole arrays are arranged around the differential pairs. Intervene in layout optimization during the DFM review stage.
    • Long service life: It adopts advanced technologies such as vacuum lamination, pulse electroplating and high-precision drilling. Give priority to using substrate materials that have passed UL 94 V-0 flame retardant certification and have a high Td (thermal decomposition temperature ≥340°C).

    PCB Manufacturing Process: From Circuit Board Fabrication to PCBA for Industrial Equipment

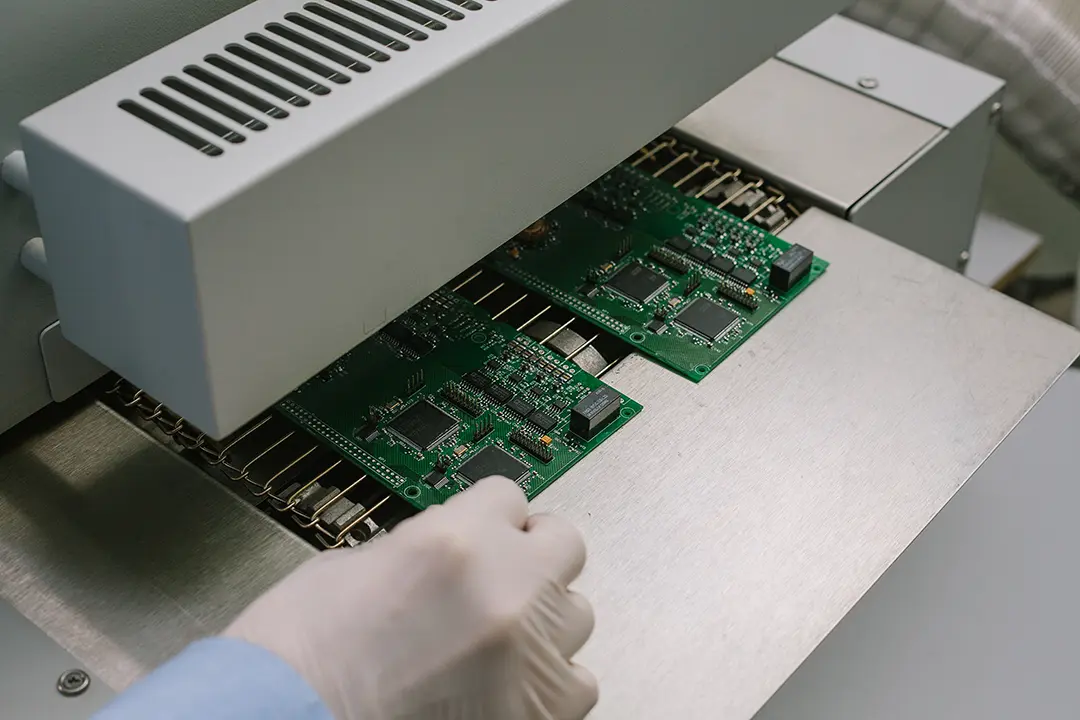

    industrial-pcb-manufacturing​



    The pcb manufacturing process of industrial equipment is a systematic project that runs through multiple process stages. It deeply integrates material technology, circuit board design and quality assurance into every manufacturing link to ensure that the final product meets the standards of industrial-grade applications in terms of high reliability, high precision and high consistency.



    • Design and Schematic Layout Using sophisticated EDA tools, engineers create the precise circuit interconnections and trace widths for high-current, high-frequency applications. EMC shielding, impedance control, and DFM (Design for Manufacturability) are central to achieving robust industrial circuit board designs.
    • Material Selection & Stackup Creation Durable laminate materials—such as high-Tg FR-4, polyimide for flexible pcbs, or aluminized IMS for power circuits—are selected according to the environmental conditions, signal integrity requirements, and thermal dissipation needs of the targeted industrial applications.
    • Patterning and Imaging By adopting high-precision lithography technology, copper wires, ground layers and power buses are defined to ensure that the graphic accuracy remains stable and controllable even in extremely fine line width/line spacing scenarios such as RF circuits, Internet of Things terminals and high-density control boards. High-resolution LDI (Laser Direct Imaging) equipment is equipped in the imaging process, supporting a line width/line spacing of 50µm or less, and achieving automatic expansion and contraction compensation.
    • Lamination & Via Plating Multi-layer boards are formed through high-temperature and high-pressure lamination processes. LHD TECH employs vacuum lamination technology to effectively eliminate interlayer bubbles and voids, enhancing bonding strength and insulation reliability. There are several different hole-making processes: mechanical drilling and laser drilling, pulse electroplating process, and some implement resin hole filling and hole mounting plate (VIPPO) process.
    • Solder Mask & Surface Finishing The solder mask is not only used to define the welding area, but also plays an important role in moisture-proofing, dust-proofing and chemical corrosion prevention. We select high-resolution LPI solder mask ink based on application requirements, supporting multiple color options such as green, black, and blue. The precision of the solder mask bridge can reach ≤0.05mm, effectively preventing bridging between fine-pitch pins.
    • Component Assembly (PCBA) Surface mount technology (SMT) We are equipped with fully automatic SMT production lines, integrating high-precision surface mount technology (SMT) placement machines and reflow soldering systems to ensure the accuracy of component placement and soldering quality.When lead-free solder (mainly SAC305) is used, it strictly complies with the RoHS/REACH environmental protection regulations and is monitored in real time through SPI (solder paste testing) and the furnace temperature curve.For irregular structures such as rigid-flex plates, manual assisted mounting is adopted in combination with special fixtures.
    • Quality Control & Automated Testing Automatic optical inspection (AOI) can identify problems such as circuit defects, component offsets and abnormal solder joints. X-ray analysis (AXI) is used for X-ray non-destructive testing of concealed solder joints such as BGA, QFN, and LGA. The flying probe test is applicable to small-batch and multi-variety products. Functional testing (FCT) is aimed at applications such as motor control systems, high-frequency radio frequency modules, and power electronics. By simulating actual working conditions, it verifies signal integrity, load capacity, and system functions.

    Testing, Quality Assurance, and Advanced Manufacturing in Industrial PCB Production

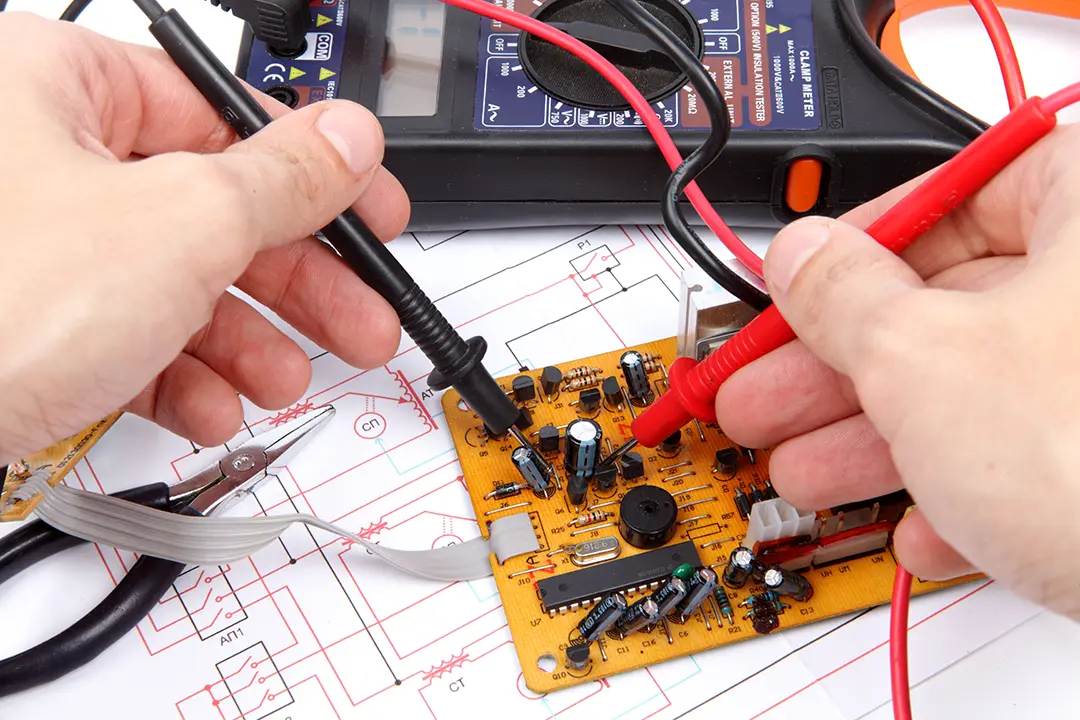

    industrial-pcb​



    For industrial printed circuit boards, comprehensive testing is not optional—it’s an industry requirement. Here’s how top PCB manufacturers ensure long service life:



    Testing & Validation

    • Electrical Testing: 100% netlist testing for shorts and opens.



    • Mechanical and Thermal Testing:
      • By establishing a multi-dimensional environmental simulation testing system, industrial-grade PCBS are simulated and verified under harsh working conditions such as vibration, mechanical shock, humidity and temperature cycling to ensure that the products have predictable long-term reliability in real industrial environments
      • Boards for aerospace or energy are subjected to even more stringent environmental conditions tests.



    • Signal Integrity Evaluation:
      • A high-precision TDR testing system is adopted to conduct impedance continuity analysis on high-frequency signal transmission lines. At the same time, the insertion loss test is carried out in combination with the vector network Analyzer (VNA).
      • For high-density wiring scenarios such as industrial Ethernet, sensor networks, and multi-channel high-speed buses, crosstalk pre-assessment can be conducted through electromagnetic simulation tools during the design stage. In the test verification stage, a combination of time-domain crosstalk (TDR-Xtalk) and frequency-domain isolation test is adopted to quantitatively analyze near-end crosstalk (NEXT) and far-end crosstalk (FEXT).
    Test TypePurpose
    Automated Optical InspectionSolder joints/placement, fine-pitch faults
    X-ray TestingBGA connections, buried via inspection
    Functional/Load TestingMotor control, power electronics, endurance
    Environmental Stress ScreeningLong-term durability under harsh use

    Advanced Manufacturing Practices

    • Real-time process monitoring (SPC, MES systems): We have deeply integrated Statistical Process Control (SPC) with Manufacturing Execution System (MES) to build a real-time monitoring network covering the entire process, enabling immediate identification and intervention of manufacturing drift and abnormal conditions.
    • Automated cleaning: If the residual flux during the welding process is not thoroughly removed, it may cause electrochemical migration, corrosion or a decrease in insulation resistance in a humid and hot environment, becoming a potential hazard for the long-term operation of industrial equipment. We position automated cleaning as a standard process for high-reliability products.
    • Conflict mineral tracking, anti-counterfeit part protocols: The compliance, transparency and security of the supply chain directly affect the credibility of equipment operation. We have established a strict supply chain control mechanism: conflict mineral traceability, counterfeit component agreements, and a supply chain traceability system.

    Overcoming Challenges in PCBs for Industrial Applications and Manufacturing

    Designing and manufacturing circuit boards for industrial use is complex but advancements in technology & process control provide robust solutions:



    Key Challenges & Solutions

    • Miniaturization in Harsh Environments:
      • In industrial environments with high temperatures, vibrations, and limited space, we achieve high-density integration and miniaturization design through HDI (High-density Interconnect) architecture, compact stacking design, and thermal and vibration co-verification to ensure the long-term reliability of PCBS.



    • Maintaining Signal Integrity at High Speeds:
      • In RF circuits, industrial Internet of Things and high-speed buses, signal attenuation, reflection and crosstalk are prevented from directly affecting system performance by optimizing impedance control overlay, shielding and grounding design, and high-frequency loss control.



    • Ensuring Durability and Reliability:
      • Industrial equipment needs to withstand multiple aging factors such as thermal stress, large current and mechanical vibration during its decades-long service life. We enhance the via structure, thick copper and current-carrying redundancy in the design, perform high-temperature and high-humidity bias (85°C / 85% RH, 1000 hours) and accelerated life tests (such as ALT) to optimize product requirements.



    • Meeting Industry Certifications and Environmental Demands:
      • Industrial-grade products need to meet diverse certification requirements and environmental protection regulations worldwide, including coverage of certification systems (IPC-A-610/UL 796/IEC 61188, ISO 9001 / IATF 16949), and the establishment of a conflict mineral traceability mechanism (CMRT report). Regularly entrust third-party testing institutions (such as SGS and TUV) for auditing and testing.

    Selecting the Right PCB Manufacturer for Industrial Equipment

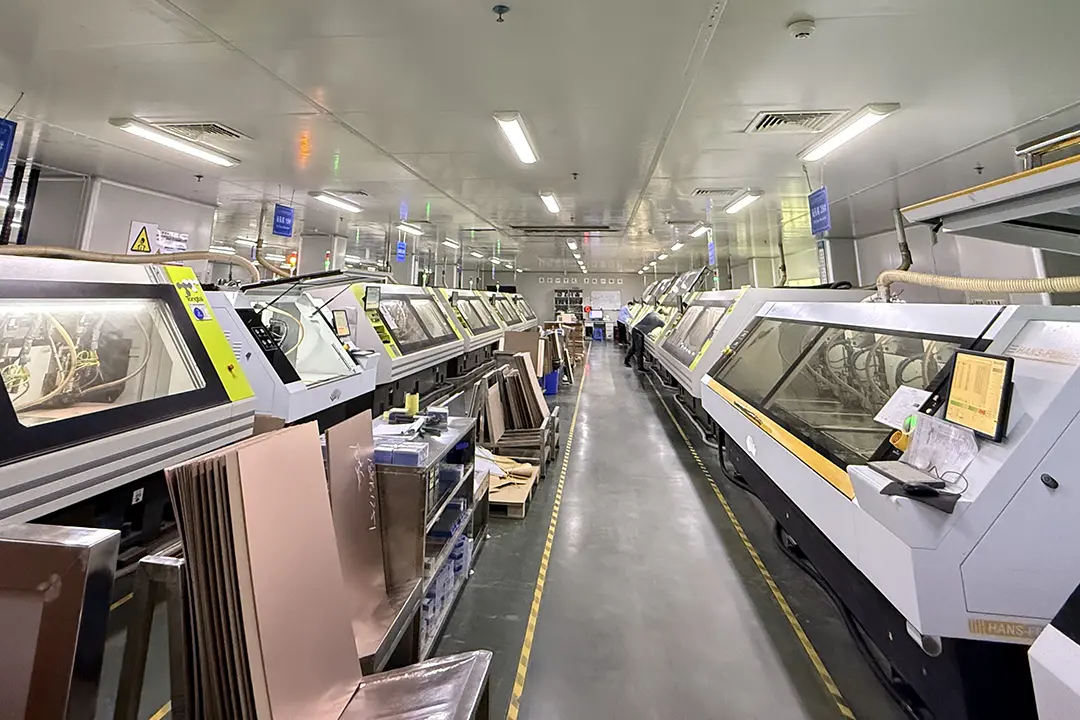

    industrial-pcb-manufacturing-process​



    The choice of partner is critical for reliability, compliance, and long service life of your industrial electronics.

    What Sets the Best PCB Manufacturers Apart?

    • Full spectrum of certifications: A multi-level certification system covering products, processes and the environment has been established to ensure that every industrial-grade PCB complies with global mainstream standards in all aspects of design, manufacturing and delivery. IPC Class 3, UL 796, ISO 9001/14001, IATF 16949, and RoHS/REACH.
    • Expertise in a variety of applications: We have accumulated profound technical experience and project implementation capabilities in multiple key industrial fields such as motor control, industrial Internet of Things, aerospace, and power electronics, and are capable of providing precise PCB solutions for different application scenarios.
    • Advanced manufacturing and test facilities: Equipped with industry-leading manufacturing and testing equipment, through real-time process monitoring – automatic optical inspection (AOI) – automatic X-ray inspection (AXI) – environmental simulation laboratory, comprehensive testing and monitoring are carried out, implementing full-chain technical capabilities from graphic transfer, lamination, electroplating to finished product testing.
    • Robust quality control protocols: From the aspects of batch-level traceability, automated inspection systems, and continuous improvement mechanisms, quality control is internalized as a systematic mechanism, running through every node from incoming material inspection to finished product shipment.
    • Consultative design support: We have an interdisciplinary engineering team that gets involved in the customer’s R&D process from the product design stage, providing comprehensive technical support: DFM/DFA/DFR/SI .

    Manufacturer Checklist Table

    FeatureBenefit for Industrial Applications
    Certified/Fully TracedReliability, regulatory compliance
    Heavy Copper, IMS, HDIHigh current/heat, miniaturized designs
    Automated, Clean FacilitiesHigh-yield, low-defect, safe boards
    In-House Quality LabReal-life simulation of all use cases
    Flexible PCBA ServicesCustom, hybrid, and large-format boards

    Future Trends: IoT, Flexible PCBs, and High-Frequency Applications in Industrial Circuit Board Design

    • IoT Integration: Industrial PCBs increasingly connect sensors, control systems, and power stages across vast networks; focus is on EMI control, reliability, and miniaturization.
    • Flexible and Rigid-Flex Boards: Used for industrial applications in robotics, aerospace, and areas where space is a constraint.
    • High-Frequency Applications & Advanced Laminates: Industrial RF, motor control, wireless communications, and advanced manufacturing require meticulous signal integrity management with controlled impedance and low-loss laminates.
    • Automation, AI, and Advanced QA: Smart factories, automated testing, and predictive maintenance systems are shaping the future of industrial equipment.

    Conclusion: Building a Long Service Life with Industrial Printed Circuit Boards

    In demanding industrial environments, the reliability and performance of printed circuit boards for industrial applications depend on thoughtful design, stringent material selection, and rigorous manufacture. A focus on copper thickness, certified pcb materials, robust surface finishes, and advanced testing guarantees your pcbs survive the toughest industrial applications—from aerospace to motor control to IoT networks.



    Choosing to partner with LHDPCB – a manufacturer with industry certifications, comprehensive quality assurance, and expertise in circuit board manufacturing – lays the foundation for advanced manufacturing innovation and the longevity of all industrial equipment.

    Need one-stop Service?
    Contact us Now!

    *We will keep all information confidential.

    Frequently Asked Questions: PCBs for Industrial Applications

    What makes industrial printed circuit boards different from commercial boards?
    Lorem ipsum
    The essential difference between industrial-grade PCBS and commercial-grade PCBS lies in design margins, material grades and environmental adaptability. Commercial-grade PCBS are typically targeted at consumer electronics, pursuing cost and delivery efficiency under mild usage conditions. Industrial-grade PCBS, on the other hand, need to maintain long-term stable operation under harsh working conditions such as mechanical stress, wide temperature range, high humidity, vibration and electrical surges. We often adopt the following aspects for control: high Tg (≥170°C) and low CTE substrate/thickened copper layer (inner layer ≥2oz, outer layer ≥3oz)/enhanced surface treatment and protective coating.
    How does copper thickness affect durability and reliability in a circuit board?
    Lorem ipsum
    Copper thickness is a key design parameter that determines the current-carrying capacity, thermal management performance and surge resistance of a PCB. In high-reliability applications such as power supply systems, renewable energy inverters, and motor controllers, we combine copper thickness design, heat dissipation via arrays, and redundant wiring to build a complete electrical and thermal reliability system.
    Why are flexible PCBs becoming common for industrial use?
    Lorem ipsum
    Flexible PCB (FPC) and rigid-flex boards, with their unique advantages of shock resistance and dynamic reliability, spatial adaptability, weight reduction and system simplification, are becoming key interconnection technologies in the process of miniaturization, lightweighting and intelligence of industrial equipment. The application boundaries of flexible PCB are constantly expanding from traditional consumer electronics to industrial and aerospace fields with higher reliability levels.
    What quality tests should an industrial PCB pass?
    Lorem ipsum
    The testing system for industrial-grade PCBS covers manufacturing integrity (AOI/AXI/ flying Probe /ICT). Electrical performance (TRD/ insertion loss and return loss tests); Environmental adaptability (three dimensions: temperature cycling, machine shock and random vibration, and steady-state damp heat at 85°C and 85% RH) ensures that the product has reached the expected reliability level before delivery.
