Mastering BGA Routing in PCB Design: Layout for BGA Packages

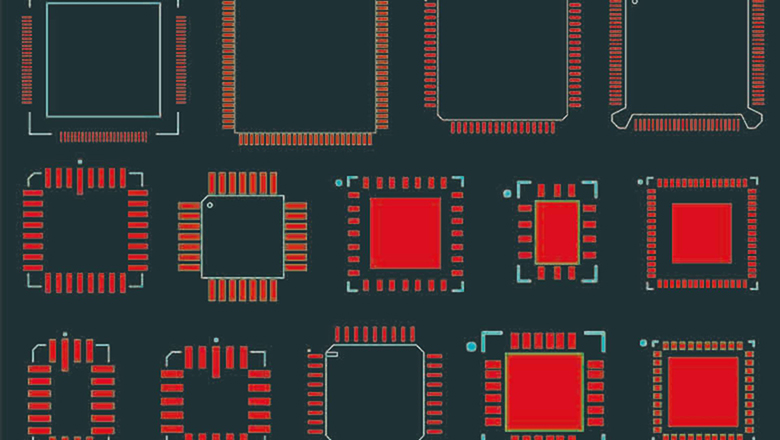

Introduction to BGA Routing in PCB Design

In the field of PCB design, BGA routing technology is not an optional skill.It is a must-have skill for every PCB designer, especially when designs target compact structures and high-performance circuits.The rapid evolution of electronic products has driven the trend toward circuit miniaturization.As a result, BGA packaging (Ball Grid Array) has become a key focus in the industry.This packaging technology provides core component support for smartphones, network equipment, medical instruments and a wide range of other compact electronic products.

BGA routing is not a mere technical indicator.Its quality determines whether a product can achieve low signal noise, guarantee operational reliability and meet the requirements of mass manufacturing.This guide systematically elaborates on the core concepts of BGA routing in PCB design and the latest technologies adopted in the industry.It focuses on resolving the technical difficulties in the interconnection between BGA pins and each layer of the PCB, while ensuring layout clarity, routing precision and physical realizability.

If you’re struggling with the complexity of the BGA, verifying clearance for escape routing or wrestling with dense BGA layouts, you’re in the right place.

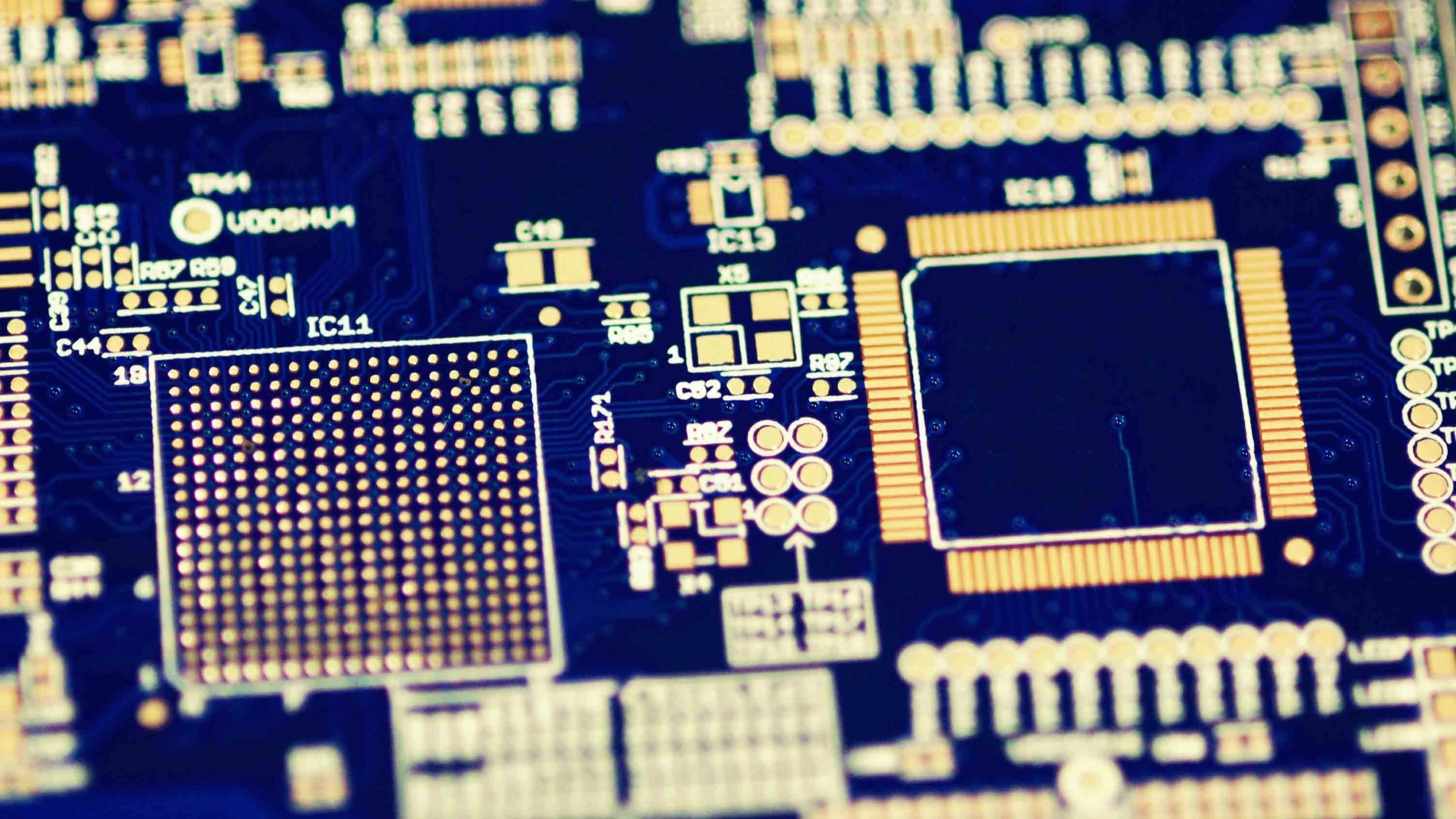

BGA Packages and the Cornerstone of Modern PCB Layout

The nature of BGA packages—with their ball arrays, high pin count and extremely close BGA pad spacing—makes them the cornerstone of today’s advanced PCB layout. BGA is placed onto the PCB with balls directly facing the board, maximizing interconnects in the smallest possible footprint.

Advantages of BGA:

• Compact design with massive pin density.
• Lower parasitic capacitance and inductance, boosting signal quality.
• Directly inside the BGA, pins are shorter—delivering high-frequency and low-noise advantages.
• Superior heat dissipation by channeling thermal energy through the ball matrix.

However, this dense ball configuration is what makes BGA routing so challenging for the modern PCB designer.

Challenges of BGA Routing: What Every PCB Designer Must Know

Every PCB designer knows that BGA routing is dealing with high pin density and minimal room for escape routing, which can lead to one of the biggest challenges in BGA routing—how to connect each BGA pad to a nearby signal layer without violating design constraints or sacrificing performance.

The Top Challenges for PCB Routing Around the BGA Component:

• Creating Routing Bottlenecks or Signal Integrity Issues: Tight spacing makes routing signals between adjacent balls extremely difficult, especially as ball pitch drops to 0.5mm or 0.4mm.
• Escape Routing is the Process of Connecting the BGA Pins: Escape routing can lead to mistakes if not carefully planned: signals can become trapped, or the routing can introduce problems like excessive vias, long traces and even electrical discontinuities.
• Dense BGA Layouts Demand Many PCB Layers: High-density PCB designs with BGAs often require 6, 8, or even more layers just for reliable breakout—adding cost but enabling smarter, more reliable trace design.
• Poor Routing Can Introduce Problems Like Signal Loss and Noise: Without grounded reference planes, matched pairs, or clear rules in your design, poor routing can complicate routing and degrade the entire system.
• Room for Escape Routing: If you don’t give your BGA enough room to route signals, you risk creating a situation where connecting the BGA pins is physically impossible, even if the schematic is correct.

Major Concern in Dense BGA Layouts

High-density BGA layouts face a core challenge: each solder ball has a specific function. Whether used for high-speed data transmission, power net connection or clock signal delivery, the routing paths for these solder balls must avoid creating routing bottlenecks, prevent signal distortion and eliminate manufacturability defects.

PCB Layout: Placing and Planning Around the BGA

Proper PCB layout around the BGA is fundamental. If you start with randomly placed components, you quickly complicate routing and degrade the signal layers just for routing.

Key Steps in Successful BGA Routing Design:

• Plan Early in the Design: Begin layout planning as soon as you know your BGA’s pinout. Allocate space for escape routing before placing other parts.
• Around the BGA Component, Prioritize Important Devices: Place DDR memory, oscillators, and capacitors close to the BGA pins to minimize inductance and maximize performance.
• Defining Routing Constraints Helps Ensure Success: The establishment of routing constraints and the strict enforcement of these rules work together. These two factors ensure the solderability and testability of the circuit board as circuit density increases.
• Collaborate with Your PCB Manufacturer Early: PCB manufacturers can identify design features that violate production limits and issue timely alerts, avoiding subsequent redesign.

Defining Routing Constraints and Rules: Key to a Successful Design

Defining clear routing rules early in the design process is the key to a successful BGA routing process—and, by extension, a successful PCB.

What Are Routing Rules?

• Trace width and spacing:Based on impedance and current requirements.
• Via style (dog-bone, via-in-pad, microvia):Technique depends on your design requirements, such as density and available board technology.
• Signal layer assignment:Deciding how many PCB layers to dedicate just for routing versus power or ground.

BGA Fanout, Trace Design and Successful Escape Routing

The process of connecting the BGA pins to the rest of the PCB is called escape routing. The right fanout pattern will depend on your design goals and manufacturing capabilities.

Key Fanout and Trace Design Techniques:

• Dog-bone routing is a popular and reliable technique. Perfect for the outermost rows of the BGA, the dog-bone fanout connects the BGA pad to a nearby via and then routes traces outwards to signal layers just for routing. This keeps the area around the BGA organized and easy for the manufacturer to assemble.
• Via-in-pad and microvia approaches are essential in dense BGA layouts. As pitch decreases, routing and via-in-pad techniques become essential. With via-in-pad, vias are directly under or in the BGA pad, providing a straight shot to inner PCB layers. This makes connecting the BGA pins to the PCB possible even in high-density PCB designs.
• Staggered microvias and “zigzag” breakouts: For ultra-fine pitch BGAs (≤0.5 mm), staggered microvias paired with careful trace design allow designers to route signals from the BGA pins to minimize inductance and avoid routing in ways that risk signal loss.
• Maximizing room for escape routing: The first step to mastering BGA is to give your BGA enough room to route all signals. Allocate space for escape routing; otherwise, routing bottlenecks or signal jams near the BGA are inevitable.
• Effective BGA routing often depends on your design requirements and stackup. For very high pin-count BGAs, consider using many PCB layers with defined signal, power and ground assignments.

Via and Pad Design: The Foundation of a Successful BGA

The exact implementation of vias and pads will make or break your BGA design and subsequent PCB manufacturing success.

Choosing Pad Types

• NSMD (Non-Solder Mask Defined) pads are favored in most BGA designs because they offer better solder joint reliability, tolerating small design flaws during PCB manufacturing.
• SMD pads (Solder Mask Defined) can increase density but are more sensitive to alignment errors and manufacturing shifts.

Via Approaches

• Dog-bone and via-in-pad design:Use dog-bone for outer balls and via-in-pad (with via fill and cap) for inner balls where routing is tight.
• Ensure your design provides clearances that meet or exceed your PCB manufacturer’s minimums for vias and solder mask.
• Filled and capped via-in-pad is required to prevent solder wicking—without it, poor routing can introduce problems like head-in-pillow defects or electrical opens.

Pad and Via Decision Matrix

Effective Routing Strategies for Dense BGA Layouts

Dense layouts require discipline, experience and a step-wise approach:

• Begin by routing critical, high-speed nets like clocks, high-speed data or critical control signals. This ensures key signals don’t get trapped by the rest of the PCB.
• Allocate signal layers just for routing under or near the BGA for effective escape—an extra layer is often cheaper than risking failure from poor routing.
• Maintain power and ground continuity with wide pours, direct via stitching and decoupling capacitors close to the BGA. This is crucial for reliable, high-performance PCB operation, minimizing noise and bounce.
• Rely on BGA layout guidelines from semiconductor vendors and proven reference designs, especially for DDR, high-speed serial or mixed-signal SoCs.
• Use clear rules in your design for trace width, spacing and layer usage—defining routing constraints ensures the design is robust.

Avoid Routing Pitfalls: How Poor Routing Can Lead to Design Flaws

In BGA design, routing can introduce problems like:

• Signal crosstalk due to poor trace separation or lack of adjacent reference planes.
• Impedance mismatches creating reflections or signal loss.
• Trapped nets that can’t escape, forcing redesign and added cost.
• Long, winding traces that add latency or even make the design outright unmanufacturable.

Avoid routing in ways that break the design rules or ignore manufacturer constraints. Even the most advanced design can fail if small design flaws are left unchecked.

Placed components can complicate routing:

• Keep analog, mixed-signal and power circuitry out of escape paths.
• Avoid placing connectors or large passive components directly around the BGA—the rest of the PCB should “orbit” outside your escape lanes.

PCB Manufacturing and Collaboration: Working with Your PCB Manufacturer

Your PCB manufacturer is your most important partner in mastering BGA routing.

• Early in the design, share your design goals, stackup, pitch and ask for capability guidelines specific to BGA/HDI.
• Keep open communication to avoid routing strategies that can’t be built or tested.
• Understand cost and lead time tradeoffs for extra layers, fine traces, capped via-in-pad and advanced stackup.
• Ask for DFM (Design for Manufacturability) review before ordering first prototypes.

PCB Design Software and Advanced BGA Routing Techniques

Modern PCB design software is engineered for the complexity of the BGA.

• Tools like Altium Designer, Cadence Allegro, and others enable you to define routing rules, stackup, keepouts and clearance for complex BGAs.
• Automated fanout, differential pair tuning, and signal integrity simulators allow real-time validation as you route.
• Leverage built-in 3D viewers to review via depth, ball clearance and component standoff.
• Simulation tools help avoid routing without rules, by predicting EMI, PDN drop or trace impedance mismatches before you send designs to fabricators.

Conclusion: Building a Successful BGA Routing Process—and Sharing Your Design Journey

Mastering BGA routing techniques in PCB design requires completing three fundamental tasks. Designers must have a deep understanding of the complexity of BGA packages. Designers must establish clear design rules within the project. Designers need to maintain close collaboration with the PCB manufacturer while also being proficient in using layout tools.

Remember:

• Allocate space for escape routing early in the design.
• Use many PCB layers and appropriate via-in-pad methods for high-density PCB designs.
• Avoid routing pitfalls by enforcing constraints and regularly reviewing with both your team and your PCB manufacturer.
• Designers use PCB design software to complete the definition, verification and optimization of routing, a process that relies on the assistance of automation tools and multiple iterative adjustments.
• The key to a successful design lies not just in individual technique, but in the process and partnerships behind the design.

FAQ: BGA Design and Routing

Q: What is the foundation of a successful BGA layout?

A: Early planning, many PCB layers, strict routing constraints and regular collaboration with your manufacturer.

Q: How do I avoid routing errors in dense BGA layouts?

A: Allocate layers just for escape routing, keep analog/power components out of routing channels, and use net class-driven rules in your PCB design software.

Q: What if I have no room for escape routing?

A: Increase layer count, rework placement or select a larger BGA pitch—never “force” traces at the expense of reliability or manufacturability.

Q: Is via-in-pad always needed?

A: Via-in-pad is essential in high-density BGA layouts, especially with tight pitches or when routing from inner rows of the BGA. For BGAs with larger pitch (0.8 mm or more), dog-bone fanout might suffice. Always evaluate your design requirements and consult your PCB manufacturer for preferred practices.

Q: How do I keep the trace design robust for high-speed signals under BGAs?

A: Designers need to use short and direct paths for routing and ensure the traces meet impedance control requirements. Signal layers must be placed adjacent to a solid ground plane. The two traces of a differential pair must maintain equal length. The number of vias should be reduced throughout the routing process to avoid signal integrity issues.

Q: What role does the PCB manufacturer play in BGA routing?

A: PCB manufacturers perform three main tasks: defining design constraint parameters, evaluating designers’ escape routing schemes, and verifying design manufacturability.Designers need to coordinate with manufacturers early in the project to confirm key indicators including microvia fabrication accuracy, via filling process, solder mask alignment tolerance, and copper foil thickness standards, ensuring these technical details can be smoothly integrated into the production flow.

Q: How does poor routing impact reliability?

A: Improper routing methods can lead to a series of issues. Trace lengths may exceed reasonable limits. Crosstalk can occur between signals. Impedance characteristics may deviate from design requirements. These problems ultimately trigger noise interference, signal quality degradation, and can even render high-performance circuits unable to function properly. Design flaws located in the BGA area are often difficult to detect. Correcting such defects in later stages also requires a relatively high cost investment.

Q: When should I add more PCB layers?

A: When you can’t connect all BGA pins to the PCB layers without violating trace/space or via constraints, or when power integrity and signal routing lanes are insufficient. Many high-density BGA designs require 6, 8 or more layers for robust escape routing and to avoid routing bottlenecks.

Q: Can PCB design software automatically solve BGA escape routing?

A: Advanced PCB design software can automate many aspects of fanout and signal integrity checking, but for complex BGA design, manual review and adherence to layout guidelines are still vital. Use software features for auto-differential pair routing, rule enforcement and 3D clearance checking — but always confirm by manual inspection.
