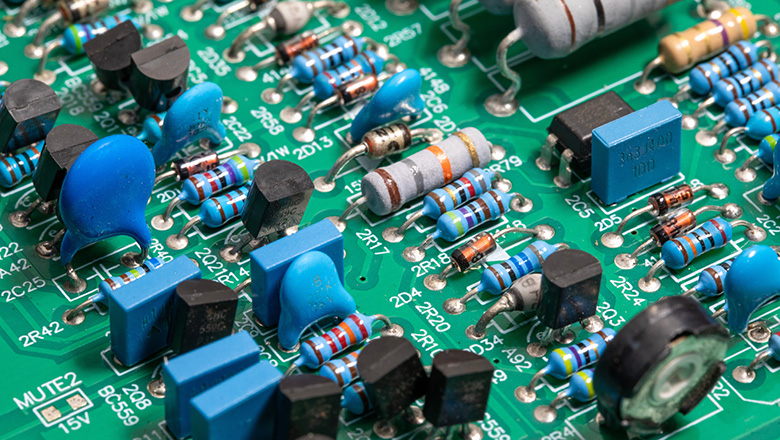

Introduction to Diodes and PCBs
Diodes are semiconductor devices. These types of devices only allow current to flow in a single direction. This characteristic is indispensable for power control and signal transmission in circuits. Diodes are often referred to as “one-way check valves” in the field of electronics. Printed circuit boards are almost always equipped with this component. Printed circuit boards themselves constitute the physical foundation of electronic devices, supporting such products as home appliances, smartphones, industrial control systems and automotive electronics.
This guide systematically presents the fundamental knowledge of PCB diodes. The definition and basic working principle of a diode constitute the opening content. Functional differences among common diode types are explained in detail. Correctly identifying polarity and performing testing are crucial for reliability. The guide further explores the physical structure of diodes. The critical PN junction diode is highlighted. Modern types such as light-emitting diodes, Zener diodes, Schottky diodes and laser diodes are also included in the discussion. Readers gain practical knowledge on how to interpret circuit diagrams. Nuanced points in diode applications are explained one by one. Step-by-step testing methods and procedures for troubleshooting damaged components are also covered.
What Is a Diode and How Does a Diode Work?
Diodes are semiconductor devices. The direction of current flow is limited to from the anode to the cathode. Reverse current is blocked. Diodes thus earn the analogy of a “one-way gate.” The PCB assembly process requires this characteristic. Circuit protection also relies on this characteristic.
How does a diode work?
The secret lies inside the diode: A PN junction is composed of two regions of silicon material. These two regions are processed separately using different doping processes. When a forward voltage applied across the PN junction exceeds the threshold voltage (approximately 0.7V for silicon diodes), a current path opens, allowing current to flow from the anode to the cathode. When a reverse voltage is applied across the PN junction, this structure blocks current from passing. Components in the subsequent circuit are thus protected and prevented from damage. This unidirectional conduction characteristic makes diodes a fundamental component on printed circuit boards.
Diode Functions:
- Rectification:Converts AC to DC in power supplies.
- Voltage Clamping:Protects circuits from spikes.
- Signal Processing:Demodulates and shapes analog or digital signals.
- Indicator/Illumination:Light-emitting diodes are devices capable of actively emitting light. Such components perform status indication functions in electronic equipment. Backlighting for display screens is also provided by these components.
Key Properties of Every Diode:
| Property | What it Means | Impact on PCB Design |
| Forward Bias | Diode allows current to flow | Enables rectification and control |
| Reverse Bias | Diode blocks current | Essential for circuit protection |
| Voltage Drop | Minimal voltage required to “turn on” diode | Affects efficiency, especially in power circuits |
| Polarity | Correct orientation needed | Incorrect orientation can damage the entire circuit |
Remember: Diode orientation on the circuit board is critical. Place the anode to the more positive end and cathode to the more negative end in the path of current flow.
Understanding the P-N Junction Diode
The PN junction diode is a landmark invention in the field of electronics. At the interface between P-type and N-type semiconductors, the combination of electrons and holes occurs. This combination process forms a depletion region inside the diode. The depletion region ultimately constitutes a barrier that impedes the flow of current.
When forward biased (positive on the anode, negative on the cathode):
- The depletion region shrinks.
- Diode allows current to flow.
When reverse biased:
- The region widens and blocks current.
- Only a tiny leakage current (nanoamps) may pass—unless the reverse voltage exceeds a breakdown point, at which some types like zener diodes intentionally conduct.
How a Diode Acts on the PCB
- Forward bias:Diode is healthy and conducts as designed.
- Reverse bias:The diode blocks current and protects sensitive parts from voltage reversal or spikes.
- Breakdown region:Some diodes, like zener diodes and avalanche diodes, are designed to operate safely here.
Comprehensive Guide to the Types of PCB Diodes
Diodes are divided into multiple types in practical applications. Each type has been specifically optimized for particular scenarios. Designers need to familiarize themselves with the characteristic differences of these types. The precise design specifications required by the circuit are thus met.
Common Types of Diodes in PCB Assembly
| Diode Type | Main Use | Key Feature | Example Part No. |
| Silicon Diode | General rectification, circuit protection | Reliable, low cost | 1N4001 |
| Schottky Diodes | High-speed, low-Vf switching, power efficiency | Low forward voltage drop (0.2-0.4V) | 1N5819 |
| Zener Diodes | Voltage regulation, clamping, surge protection | Predictable breakdown, sharp voltage clamp | 1N4733A |
| Light-emitting diodes (LEDs) | Status indicators, displays, backlit panels | Emit light when conducting | Common 5mm LED |
| Laser Diodes | Optical comms, data transmission, sensors | Collimated, coherent light | Various (VCSELs) |
| TVS Diodes | Surge and ESD protection | High-speed, high-energy absorption | SMAJ5.0A |
| Varactor Diodes | Voltage-controlled tuning in RF circuits | Variable capacitance with bias | BB833 |
| Photodiodes | Light detection, solar cells, feedback sensors | Current output proportional to illumination | BPW34 |
| Signal Diodes | Fast switching, logic, demodulation | Low capacitance, small packages | 1N4148 |
The Essential Role of Diodes on Printed Circuit Boards
On every printed circuit board, diodes perform multiple tasks. These components not only ensure unidirectional current flow but also have the function of preventing reverse current. Voltage regulation is likewise one of the important roles of diodes. Sensitive components are thereby protected from damage by voltage spikes or surge currents. These characteristics make diodes fundamental components for maintaining stable and reliable operation in complex electronic circuits.
How Diodes Protect and Control
- Rectification:Silicon diodes are used as rectifiers and are widely applied in various power supply modules. Typical AC/DC converters rely on these rectifier diodes to complete the conversion from alternating current to direct current. The converted DC power is then supplied to other circuits within the electronic device. This rectification function is commonly found in various power supply circuits across consumer electronics, industrial controls and automotive electronics.
- Voltage Regulation:Zener diodes are often applied in voltage reference circuits. This type of diode operates in the reverse breakdown region. The supply voltage may fluctuate. Load conditions may also change. Under these conditions, the Zener diode can still maintain a stable output voltage. The voltage regulation circuit powering microcontrollers on development boards is a typical example of this application.
- Circuit Protection:TVS diodes and Zener diodes are placed on both sides of critical lines. When voltage spikes occur, these devices limit the voltage to a preset safe level. Excessively high transient voltages are thus absorbed. Integrated circuits, transistors, and other semiconductor components are thereby protected from catastrophic damage.
- Signal Control:Signal diodes perform multiple functions. They operate within RF and analog circuits. High-speed switching is achieved by signal diodes. Waveform shaping also relies on these components. Radio demodulation is likewise one of their application areas.
- Light Emission:Light-emitting diodes (LEDs) and laser diodes are used for status indicators, display backlighting and optical communication.
Common Types of Diodes Found in PCB Assembly
In PCB assembly, choosing the right diode type is crucial. Let’s elaborate on several types and their typical diode applications and benefits on a circuit board:
- Silicon Diode: Silicon diodes are the most commonly used devices in the fields of general protection and rectification. A classic bridge rectifier employs such diodes. Four silicon diodes are connected in a specific circuit configuration. This connection method is represented by a specific symbol in circuit diagrams. The conversion from AC to DC is thereby achieved efficiently.
- Schottky Diodes: Recognized for a low forward voltage drop (as low as 0.2V), Schottky diodes are commonly used in switching regulators, protection circuits and high-frequency rectification.
- Zener Diodes: Zener diodes act like a one-way valve installed in reverse.They can stabilize the voltage at a preset level.When overvoltage that could damage other components occurs in the circuit, their voltage-regulating function provides effective protection.
- Light-Emitting Diodes (LEDs): Light-emitting diodes are commonly found on the surface of printed circuit boards. These components often serve as core elements in power indicators, digital displays and control panels. Correct polarity during installation is critical for these devices; otherwise, they may fail to light up or suffer permanent damage.
- Laser Diodes: Used in communication circuits, barcode scanners and optical mice; laser diodes are used where coherent light (a single wavelength, single direction) is required.
- TVS and Avalanche Diodes: These diode types protect circuits by clamping and safely dissipating high-energy transient voltages, like ESD or lightning surges.
- Photodiodes: By converting light into current, photodiodes are integral to feedback systems in brightness/ambient light sensors and solar cell designs.
- Varactor Diodes: Also known as variable capacitance diodes, they are pivotal in radio-frequency tuning circuits and phase-locked loops.
Diode Orientation, Symbols & Placement on the Circuit Board
Diode orientation is not just a theoretical concern—incorrect placement during PCB assembly is a leading cause of new-build failures and field returns.
How to Read a Diode Symbol in Circuit Diagrams
- Anode to Cathode:The arrow in the diode’s symbol points from the anode (positive) to the cathode (negative). For current to flow, the anode must be at a higher voltage than the cathode.
- Symbol in Circuit Diagrams:The triangle (arrow) and bar (line) visual language help ensure correct placement.
On the PCB
- SMD Markings:Most surface-mount diodes have a bar on the package indicating the cathode. For through-hole diodes, a silver or white band marks the cathode lead.
- Board Silkscreen:Good circuit board design will repeat the diode’s orientation on the silkscreen layer—matching the symbol you see in the circuit diagram.
- Testing Orientation:After soldering, always check that the diode is healthy—forward voltage test—and confirm the diode blocks current in reverse.
Checking Diode Orientation
| Condition | Forward Bias? | Reverse Bias? | Action |
| Current flows, diode lights / test OK | Yes | No | Good diode |
| No current in either direction (diode is open) | No | No | Replace diode |
| Current both ways (diode is shorted) | Yes | Yes | Replace diode |
| Reverse orientation (incorrect) | No* | Yes* | Remove & rotate |
Typical Diode Applications in Electronic Circuits
Let’s look at where and why diodes are used in PCBs and electronic circuits:
Diode Applications
Power Conversion and Rectification
- AC to DC converters use bridge or half-wave rectifiers.
- Protects the supply circuitry from voltage reversals and surges.
Overvoltage & ESD Protection
- TVS and zener diodes are installed at input ports, USB and HDMI connectors to protect sensitive ICs.
- Clamping diodes across mechanical relays prevent dangerous voltage spikes.
Signal Processing
- Demodulation of radio frequencies in AM/FM receivers relies on fast signal diodes.
- Light-emitting diodes are used as “logic output” indicators in embedded systems.
Current Steering
- In battery charger circuits, a diode allows charge current in but blocks reverse flow from battery to adapter for safety and protection.
- Logic circuits use diodes to create OR and AND gates, steering current for specific control outcomes.
Special Functions
- Laser diodes are used for optical data transfer and high-precision sensing.
- Varactor diodes in oscillators and tuners enable dynamic frequency control without mechanical parts.
How to Test a Diode: Step-by-Step Guide
Understanding how to test a diode is crucial for diagnosing PCB faults and ensuring production quality.
Tools for Testing
- Digital Multimeter (with Diode Test Mode)
- Test leads or alligator clips
- Oscilloscope (for high-frequency and laser diodes)
- Bench power supply (optional for breakdown testing of zeners)
LHD TECH’S Step-By-Step: Test a Diode
Remove Power from the Circuit Never test a diode in a powered circuit board.
Isolate the Diode If in-circuit results seem “off,” unsolder one lead to avoid parallel paths.
Set Multimeter to Diode Test Mode Red probe to anode, black to cathode:
- Silicon diode: Voltage drop of the diode should be ~0.7V.
- Schottky diodes: Typically 0.2–0.4V.
- LEDs: Between 1.6V (red) and 3.5V (blue/white)—may glow faintly.
Reverse the Probes The meter should read “OL” (over limit). If any significant current flows both ways, the diode is shorted.
Test a Zener Diode Connect the cathode to positive and anode to negative through a series resistor and slowly increase voltage. Measure when current rises rapidly—this is the zener voltage.
How to Know If the Diode Is Healthy
- Good diode:Only allows current to flow in one direction; shows expected forward voltage.
- Diode is open:No conduction in either direction.
- Diode is shorted:Conduction in both directions.
Typical Faults in Diodes and Trouble Signs on a PCB
Open Diode
- If a diode exhibits an open circuit condition, the component loses its ability to conduct in either forward or reverse direction. This phenomenon is equivalent to a break in the circuit. At the circuit board level, such a fault may prevent the power supply module from outputting the correct voltage. An onboard LED may consequently fail to light up. Signal transmission in sensor circuits could also be interrupted.
- Diagnostics:On test, the multimeter will read “OL” or infinite resistance in both directions. This means the diode blocks all current.
- Fix:Replace the damaged diode with a suitable part of equal or higher voltage/current rating and ensure correct diode orientation during installation.
Shorted Diode
- If a diode conducts in both the forward and reverse directions, it indicates that the device has short‑circuited.This failure mode is usually caused by the breakdown of the internal PN‑junction A short‑circuited diode is highly dangerous: it allows current to flow unrestricted in either direction.This condition can cause component overheating, fuse blowing, or damage to other parts in the electronic circuit.
- Diagnostics:Multimeter reads near zero resistance both ways. The circuit may exhibit unexpected power loss or even smoke.
- Fix:Remove and replace the shorted diode. Always test a diode before installation to confirm it’s a good diode.
Leaky Diode
- Sometimes a diode may allow a small, undesired current in reverse, known as leakage current. Over time, this can sap battery life in low-power applications or cause logic errors.
- Diagnostic Tip:Use a bench supply and microammeter to measure current with diodes reverse-biased at rated voltage. High leakage indicates a damaged diode.
- Fix:Replace with a fresh diode and check for excessive voltage or heat on the PCB.
Incorrect Diode Orientation
- The PCB design artwork and silkscreen markings are not aligned with the actual leads. This situation can result in the diode being installed in reverse. A reverse-installed diode will completely block all current. The entire circuit therefore fails. Critical electronic equipment may also be unable to power on normally.
- Diagnostic Tip:Trace the polarity on the printed circuit board silkscreen against your circuit diagram before soldering and during troubleshooting.
Expert Tips for Choosing and Using Diodes on PCBs
- Designers consult the datasheets for the diodes being used. The datasheets list a series of key parameters in detail. These parameters include forward voltage drop value, current rating, reverse recovery time and package type. The aforementioned parameters must be aligned with the actual design requirements of the circuit.
- Select the right diode type: Use Schottky diodes for fast switching and low losses, zener diodes for voltage regulation, TVS diodes for ESD protection and signal diodes for fast pulse circuits or logic gates.
- Double-check the diode orientation before and after soldering. An anode-to-cathode arrow on the circuit board silkscreen is your friend!
- Consider parallel and series arrangements:Sometimes, multiple diodes are used together to increase current capability or to clamp voltages at precise levels. Always verify with the circuit diagram and simulate if unsure.
- For SMD assembly, ensure the reflow oven profile matches the maximum safe temperature of your diodes. Too high a temperature during PCB assembly can stress or damage sensitive SMD diodes, especially laser or light-emitting types.
- Mark tested and oriented diodes during prototyping to avoid confusion in builds or rework.
Frequently Asked Questions About PCB Diodes
Q: What is the main function of a diode on a circuit board?
A: The diode functions as a one-way gate for current, allowing it to flow from the anode to the cathode but blocking reverse flow. This is vital for rectification, protection, voltage regulation and signal modulation.
Q: Are there different types of PCB diodes?
A: Yes, there are several types of PCB diodes, including silicon diodes, Schottky diodes, zener diodes, light-emitting diodes, laser diodes, varactor diodes, signal diodes, TVS diodes and more. Each has special properties for specific applications.
Q: How do I test a diode on a printed circuit board?
A: Use a multimeter in diode test mode. Forward-bias (red to anode/black to cathode) will show a typical voltage drop of the diode, while reverse-bias should show “OL” (no current). If both directions show “OL,” the diode is open; if both conduct, the diode is shorted.
Q: What causes diodes to fail?
A: Excess voltage, misorientation, poor solder joints, thermal overstress and manufacturing defects are common causes. Zener diodes may also fail if exposed to repeated high surges above their design limits.
Q: What is diode orientation and why is it important?
A: Diode orientation describes the direction a diode is installed based on its anode/cathode. In the wrong position, a diode blocks current or may be damaged, disrupting the entire circuit.
Q: Can I use any diode as a replacement?
A: No, because each diode type has unique properties. Schottky diodes are not always a direct substitute for zener diodes or signal diodes, and vice versa. Always match voltage, current, speed and function.
Conclusion & Key Takeaways
This comprehensive guide to PCB diodes and their circuit board applications highlights how diodes are essential for protecting, powering and controlling modern electronics. Understanding the diode is a semiconductor device, optimizing diode orientation, learning to test a diode, and knowing which types of PCB diodes to use ensures your electronic circuit is robust, efficient and failure-resistant.
Key Lessons:
- Always use the correct diode for your application—there are many different types of diodes for a reason.
- Don’t neglect testing diodes, especially after PCB assembly or repairs.
- Properly placed diodes protect the entire circuit from faults, surges and mis-operation.
- Stay updated on new diode types and improvements for the best design choices in your projects.
