PCB Etching Deep Dive: Chemical Etching Copper with Precision

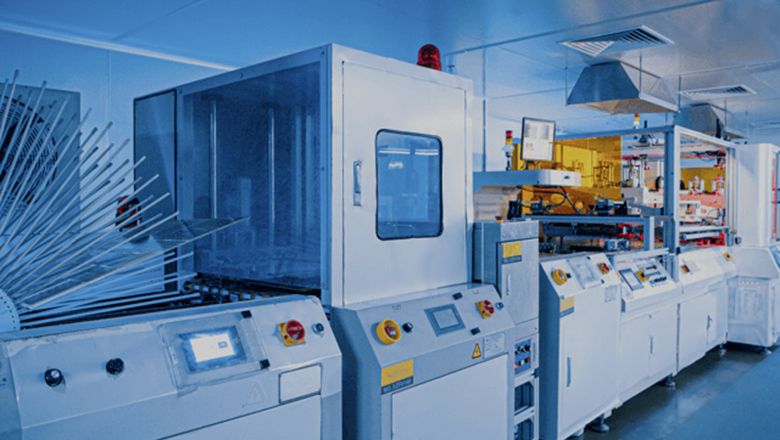

Introduction: Why PCB Etching Matters

PCB etching is a fundamental core process in the field of modern electronic manufacturing, and this procedure occupies a central position in the entire PCB production flow. The functionality of printed circuit boards used in various electronic devices relies entirely on the precise pattern etching and removal of copper layers. If designers and engineers fail to master this process proficiently, they will be unable to meet the standards specified by current high-demand application scenarios for circuit precision, production consistency, and final product quality.

The Impact of PCB Etching on Electronics

• Etching is the process of removing unwanted copper from a copper board using chemical or physical techniques, leaving behind the desired circuit.
• The impact of pcb etching reaches every aspect of electronic device performance—from signal integrity in RF circuits to the miniaturization of wearable tech.

Where Etching Fits in the PCB Manufacturing Process

The PCB Manufacturing Process — Step by Step

Every PCB manufacturing process uses etching as a central stage for defining circuit geometry. Here’s where it fits:

1. PCB Layout & Circuit Design:With modern software tools, engineers design the circuit and plan where copper traces will go.
2. Material Selection:Choose the substrate and layer of copper thickness based on design and application.
3. Masking Techniques:Apply photoresist or other masking agents to define which areas will be protected during etching.
4. Image Transfer:The design is printed onto the resist layer using UV or laser technology.
5. Development Process:Boards are passed through a developer solution to reveal exposed copper.
6. Etching (The Main Event):Apply the etching solution or engage advanced methods to remove unwanted copper (etch copper) and reveal the final circuit pattern.
7. Resist Stripping:Remove any remaining resist material to prepare for solder mask or further processing.
8. Inspection & Quality Control:Every board is checked for consistency, etching precision and absence of short circuits.
9. PCB Assembly:Components are soldered onto the finished printed circuit board.

PCB Fabrication Steps and Where Etching Fits

Understanding PCB Etching: A Deep Dive

Etching is the process of transforming a plain copper board into a sophisticated circuit board through selective copper removal. Let’s break it down further.

The Science Behind Chemical Etching

Chemical etching process is based on specific chemical reactions that occur between copper material and the etching solution. The core objective of this process is to precisely remove the copper layer in areas not covered by the resist through chemical reactions, ultimately retaining only the complete copper conductor pattern required to construct the preset circuit.

• Etch Rate:Refers to how quickly copper is dissolved. Controlled by chemical concentration, temperature, agitation and solution type.
• Layer Etching:Multiple etch steps are often repeated for multi-layer or HDI boards, requiring extreme process control for consistent results.
• Advanced Chemical Etching:Today’s advanced chemical etching methods use real-time monitoring of etching parameters to ensure sharp, repeatable features on every layer.

Why Precision Matters

Whether in prototyping or industrialized PCB production, the precision of the etching process is a critical factor determining circuit board quality. Precisely controlled etching enables the fabrication of high-quality, highly reliable circuit boards; deviations in the etching process can lead to issues such as short-circuit risks, insufficient solder joint strength, or direct functional failure.

• For multilayer pcb or HDIdesigns, tiny deviations in copper width can alter impedance and degrade performance.
• If etching is not complete or is overdone, it can lead to open traces, unwanted copper or irregular edges that reduce reliability.

Traditional and Modern Etching Techniques

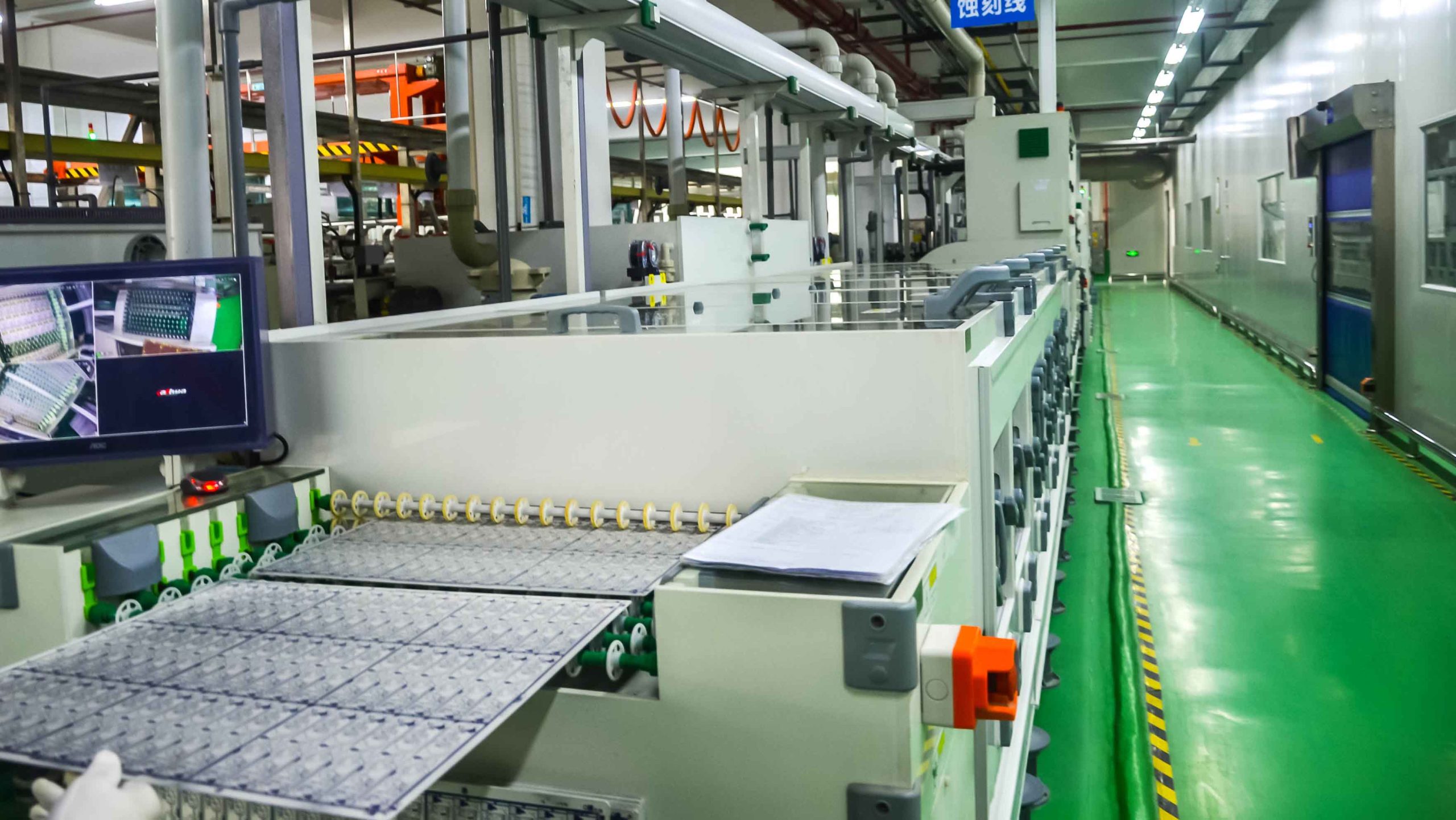

Wet (Chemical) Etching: The Backbone of PCB Production

Traditional chemical etching methods, due to their excellent process scalability and cost-effectiveness, still maintain widespread use in today’s PCB production systems. Commonly employed etching solutions in the industry primarily include the following categories:

• Ferric Chloride:Affordable, widely available. Commonly used in schools and prototyping, works well for standard PCBs.
• Ammonium Persulfate:Clean, less staining, and preferred for finer-pitch PCBs or where inspection during etch is important.
• Cupric Chloride:Used in large-scale or industrial pcb manufacturing for its regenerative properties and suitability for process control.

Wet etching techniques:

• Immerse the PCB in etchant solution.
• Agitate and control temperature for consistent etching.
• Wash immediately after the desired depth is reached.

Dry Etching and Modern Innovations in PCB Etching

Dry etching, including plasma etching and laser etching, is increasingly used in innovations in pcb etching for achieving ultra-fine traces and advanced chemical etching in HDI and IoT applications.

• Plasma Etching:Uses ionized gases (“plasma”) to etch copper without liquid chemicals.
  • Delivers sub-micron etching precision and can process deep, narrow features for layer etching in complex multi-layer boards.
  • Plasma etching offers superior control over the vertical geometry (sidewall angle) of traces.
• Laser Etching:Directly ablates copper using a high-energy laser, suitable for prototype, microelectronics and flexible PCBs.

Materials, Masking, and Etching Solutions

Materials Used in PCB Fabrication

• Copper Clad Laminates:A standard PCB fabrication starts with a thin layer of copper (typically 1 oz/ft²) on a fiberglass, ceramic, polyimide or other engineered substrate.
• Multilayer PCBs:Modern electronics use multilayer pcb structures with alternating dielectric and copper layers—each needing its own layer etching.

Masking Techniques: Photoresist and More

• Photoresist:This light-sensitive material adheres to copper. When exposed to UV light under a patterned mask, it hardens where needed, beautifully defining where the etch process will remove copper.
• Other Masking Techniques:Dry film resists and inkjet-printed resists are also used, especially in innovations in pcb etching for unique or high-speed processes.

Tips for Consistent Etching:

• Always store photoresist in a cool, dry environment to maintain its sensitivity.
• Air bubbles during application are the enemy of consistent results—work slowly and smooth all layers perfectly.
• For multilayer PCB fabrication, precise registration (alignment of each layer’s etch pattern) is mission critical.

Choosing Your Etching Solution

The etching solution serves as the chemical driving force of this process, and the selection of its formulation has a decisive impact on the entire production operation. Whether using traditional solutions such as ferric chloride and ammonium persulfate or modern, industrially optimized cupric chloride formulations for PCB manufacturing, different solution systems directly determine the etching rate, final processing quality, and the corresponding waste treatment requirements.

Examples of Etching Solutions Used in PCB Fabrication:

Step-by-Step: The PCB Etching Process

Here’s a detailed look at how to etch copper and transform a plain copper board into a finished product with high precision.

1. Circuit Board Preparation

• Start with a clean, grease-free board—organic solvents, abrasive pads and a rinse in distilled water deliver a pristine copper surface.
• Surface preparation is essential to ensure the mask or resist adheres properly and that the etch will be uniform.

2. Masking and Image Transfer

• Apply your photoresist or preferred masking technique.
• Expose to UV light under a detailed artwork mask (your pcb layout) to transfer the intricate circuit design.
• For complex circuits, use layer etching: repeat for each layer in a multilayer PCB.

3. Development Process

• Place the board into a developer solution(e.g., sodium carbonate for photoresist).
• Only the resist material exposed to UV light hardens, letting you “wash away” unexposed regions and clearly reveal where the etching process must remove copper.

4. Etching the Copper

• Immerse the board in your chosen etching solution(ferric chloride, cupric chloride, or another).
• Gently agitate the solution for uniform chemical attack and better etching speed. Temperature control is crucial.
• Monitor the board closely and remove it as soon as the unwanted copper is gone—precision timing is vital for a high-quality PCB.

5. Resist Stripping and Cleaning

• Use chemical solutions (such as sodium hydroxide) to remove the hardened resist, revealing your finished circuit pattern.
• Rinse thoroughly and inspect under magnification.

Advanced Etching: Plasma, Laser and Innovations

Plasma Etching: The Modern Frontier

Plasma etching is a form of dry etching that uses a controlled plasma of reactive gases to remove copper from the board’s surface. Like plasma etching, modern techniques enable:

• Etching deep, narrow features for advanced PCBs and chip-scale assemblies.
• Achieving extremely sharp features (straight sidewalls), impossible with some wet chemistries.
• Tight control of etching parameters such as temperature, RF power and gas flow rates.
• Producing consistent etching on HDI boards.

When is plasma etching used in PCB fabrication?

• HDI boards
• Sub-micron feature production
• Where removing unwanted copper from difficult geometries or stacked vias is needed

New plasma etching equipment is integrated with multiple types of sensor systems, enabling real-time monitoring of etching depth, rate and process endpoint. This monitoring mechanism ensures high consistency in processing results across different production batches while achieving precise and uniform control over the dosage of chemical reagents.

Laser and Photochemical Etching

• Laser etching is ideal for custom, prototype and micro-PCB work. No mask required—just a well-focused beam and precision positioning.
• Photochemical etching is used for innovations in PCB etching like production of ultra-thin metal parts and fine mesh screens.
• These two methods demonstrate highly prominent technical advantages in various application fields where traditional chemical etching processes are plagued by undercut issues and face technical difficulties in depth control.

Best Practices, Process Control and Troubleshooting

Consistently achieving high-quality results through PCB etching requires attention to every step in the process and modern process control strategies.

Best Practices for Consistent PCB Etching

• Maintain exact chemical concentration and temperature in your etchant bath.
• Record all process parameters: time, temperature, agitation method, chemical batch and result.
• Always use a test coupon for every run—especially critical in production.
• Inspect under magnification for traces of unwanted copper, shorts or breaks BEFORE proceeding to board assembly.

Common Etching Problems and How to Solve Them

FAQs: Achieving High-Quality PCBs Through Consistent Etching

Q: Why is etching critical to PCB production process?

A: Etching is the step that turns your design into a real circuit; without precise, controlled etching, no high-quality PCB is possible.

Q: Is chemical etching still relevant with all these new methods?

A: Absolutely! Chemical etching remains central to mass production and is used in one form or another for most consumer and industrial PCBs. Innovations in PCB etching now blend wet and dry techniques for optimal results.

Q: How is layer etching different in multilayer PCBs?

A: Layer etching refers to individually patterning each copper layer before they’re stacked together. Advanced registration ensures alignment and electrical functionality.

Q: What if my board has residue after etching?

A: Typically caused by incomplete rinsing or spent developer. Always use ample, clean water and check for resist or copper “fuzz.”

The Future of PCB Etching: Precision, Sustainability, and Innovation

The future of pcb fabrication lies in combining precision with process scalability and environmental responsibility.

• Process automation:AI-driven etching machines will auto-adjust parameters for every layer, every variant.
• Etchant recycling:Waste etchants will be regenerated, and extracted copper sold to other industries—closing the loop and reducing waste.
• Smart chemistries:Etchants that change color when spent, or that respond to subtle environmental changes, improve process control and eliminate guesswork.
• Microfluidics:Experimental labs are now using microfluidic channels for ultra-precise, rapid etching—dramatically reducing chemical usage and supporting even finer-featured pcb design.

Conclusion: Mastering the Art of PCB Etching

PCB etching, as the core process connecting circuit design concepts with physical manufacturing, relies for its effective implementation on a profound understanding of the interrelationships among technical principles, process best practices and factors such as chemical reagent parameters, processing duration and process control. Lacking this systematic knowledge makes it difficult to achieve an exceptional standard in PCB manufacturing. Proficiency in this process is demonstrated by the ability to consistently and stably transform basic copper-clad substrates into printed circuit boards with high precision and excellent electrical performance. Whether the operator is a hobbyist, design engineer or professional manufacturer, implementing meticulous management in key dimensions—such as etching precision, chemical parameters, mask technology application and full-process control—ensures that each production run yields the expected high-quality finished product.

Key Takeaways for Mastering the Etching Process

• Preparation is everything:Start with a spotless copper surface. Optimal adhesion of your resist material (whether photoresist, dry film or inkjet mask) directly impacts etch results.
• Process involves consistency:Maintain uniform chemical concentration, temperature and agitation. Keep track of your etching parameters and use test coupons.
• Choose the right etching technique:For high-volume, standard boards, traditional chemical etching (ferric chloride, cupric chloride or ammonium persulfate) delivers value and reliability. For HDI, microelectronics or research, embrace plasma etching, laser or advanced chemical etching for ultimate precision.
• Monitor and adapt:Use visual checks, endpoint detection or inline sensors for consistent etching; always be prepared to tweak parameters as material types or weather changes.
• Commit to innovation:Keep an eye on innovations in PCB etching like microfluidics, smart chemistries and AI-driven process monitoring—these are shaping the future of PCB.
• Sustainability matters:Recycle spent etchants, reclaim copper and choose processes that reduce waste for a greener production pipeline.

Impact of PCB Etching

• Signal Integrity:The precision of your etch determines trace width, impedance and crosstalk—critical for RF, high-speed and analog circuits.
• Mechanical Reliability:Clean, uniform etching prevents weak solder joints, copper bridges and micro-cracks, leading to longer device lifespans.
• Design Realization:Only with reliable, repeatable etching can cutting-edge pcb designs move from CAD files to reality, supporting everything from wearables to automotive safety systems.
