Introduction

Welcome to PCB Kit – The Ultimate Guide for Beginners in LHD TECH!

Want to make a circuit board of your own by hand? Then you’ve come to the right place! The first time you play with a PCB kit, it’s actually not as difficult as you think. By soldering and testing at home by yourself, you can not only learn practical electronic knowledge, but also master Arduino. Even in the future, you can take on more difficult projects without any problem!

Whether you want to make a cool LED light or design a dedicated circuit board for your smart device, this beginner’s tutorial will step-by-step guide you through the entire process.

From circuit design, file export, soldering connection, to advanced PCBA surface mount technology, troubleshooting and operational safety, I will explain everything clearly to ensure that you can successfully complete your first project!

PCB Kit – The Ultimate Guide: What is a PCB Kit?

A PCB kit is actually like a key to unlocking the door to the modern electronic world – a treasure box that packs circuit boards, various electronic components, and a beginner’s guide all together for you! It is especially friendly to beginners, allowing you to focus on learning and creativity without having to rack your brains over how to design or assemble.

The Right Approach: Why Choose a PCB Kit for Beginners?

We think the most wonderful aspect of PCB kits is that they allow you to start experimenting and learning without having to piece together a bunch of parts. And a reliable kit usually has all these prepared for you:

• A designed PCB board, all the copper foil circuits laid for you.The various components needed in the
• circuit – resistors, capacitors, IC chips, LED lights, switches, etc., and sometimes a small Arduino is also included
• Detailed tutorial with illustrations, step by step teach you how to solder
• Some are even more considerate and come with solder wire, or even aconstant temperature soldering iron tip.

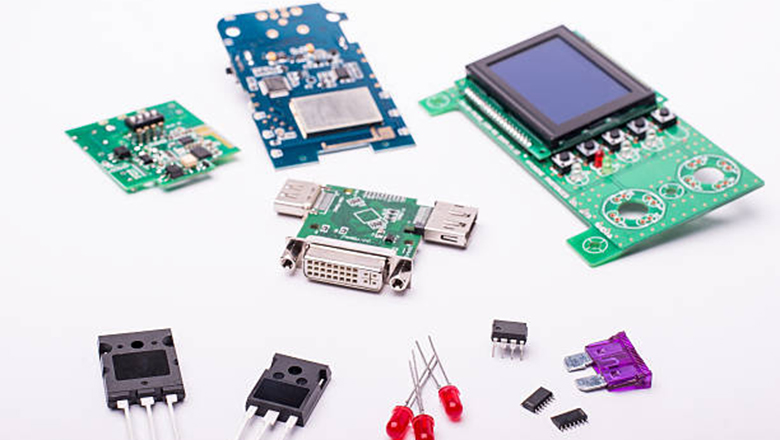

Types of PCB Kits in the Industry

• DIY Kit: Do It all by yourself from start to finish – Welding and testing the entire process! This is the sense of achievement for beginners to light up the first board with their own hands.
• Pre-Assembled Kit: Suitable for those who wish to save time, eliminating the soldering process and directly experiencing the fun of circuits. Relatively speaking, there are fewer hands-on steps.
• Advanced Kits: Suitable for experienced engineers, it is equipped with surface mount components and precision IC chips. If you want to play with high-difficulty projects such as robots and the Internet of Things.

What Does a PCB Kit Give You?

• The power to make PCBs at home.
• Understanding of how modern electronic devices are designed and assembled.
• The chance to make mistakes and learn from troubleshooting!
• The foundation for tackling advanced features and complex projects later.

PCB Kit – The Ultimate Guide: Benefits for Beginners and the Modern Electronics Community

Choosing the right PCB kit to get into electronic manufacturing is like getting a ticket to a new world – not only fun but also a great value! Why do you say so?

Fun and Rewarding Way to Learn

• Interactive Learning:I really touched the board with my own hands and welded the parts onto it! Resistors, capacitors and chips are all installed on that small PCB in your hand, which is very realistic and practical.
• Step-by-Step Progress:Every time I complete a project, I find myself unlocking new skills – from recognizing components to understanding the direction of circuits, my skills progress rapidly.
• Confidence with Tools:Applying rosin, inserting components and forming solder joints – these essential skills for the studio have been developed into good habits from the very beginning.

Skills That Translate

• PCB Industry Insights:Even if it’s just soldering a small board, the core knowledge such as PCB design, PCBA surface mount, and component selection can all be mastered through practice to grasp the essence of the skills.
• Troubleshooting Skills:Every senior engineer is honed through practice! If you can solve any problem, such as cold soldering, reversed component insertion, or blocked circuits, your repair skills will increase by 1。
• Preparation for Complex Projects:For instance, the LED lights you are soldering now and the small circuits you are building with Arduino are all the foundation for you to master advanced projects like robots and the Internet of Things in the future!

Essential Tools and Materials You Need to Build a PCB Kit

The Essential Items Checklist

Here’s everything you need for safe, efficient, and enjoyable PCB assembly, regardless of whether your PCB kit is simple or advanced:

PCB Kit Design: Using Software and Creating Schematics

The modern approach to building a PCB kit involves using software before you ever touch a soldering iron. Whether you are preparing to get a DIY kit to practice or want to challenge yourself by drawing a PCB from scratch, there are two things you will have to deal with sooner or later: circuit diagrams and PCB design software.

The Right PCB Design Software for Beginners and Beyond

• KiCad:Robust, free, and open-source. Enables you to build, simulate, and export designs for real PCBA.
• Fritzing:Ideal for Arduino and breadboard visualizations. Use it when you want a friendly intro to digital circuit design.
• Eagle:Extensive library of components and community support. Try it for step-by-step learning and real-world PCB manufacturing.
• Altium Designer:Advanced features, great for complex projects and professional PCB industry use—though overkill for a beginner guide for beginners.

Creating Schematics and PCB Layout

• Start with Schematic:Open the software, drag the components in, connect them online, and set the parameters – done! A reliable schematic diagram is the foundation of all good boards.
• Moving to PCB Layout: After the schematic diagram is completed, switch to the PCB view with one click. Only by arranging components and wiring according to electrical and mechanical specifications can the board be both practical and sturdy.
• Exporting Files for Etching or Manufacturing: Export the Gerber file for the manufacturer to produce. You can also etch it yourself, print a mirror image and transfer it to a copper plate by heat transfer.

Step-by-Step Guide to Build a PCB Kit

Here is the ultimate guide for beginners who want to build a PCB kit—broken down step-by-step:

1. Prepare Your Workspace and Review the Kit

• Please place all the tools and parts in a well-lit area with a clean desktop. It is convenient to search, especially for small resistors.
• Check each item against the bill of materials one by one. Resistors, capacitors and chips are used to prevent material loss.
• Key points of the process – Make sure to read the tutorial from beginning to end before starting work! Remember not to weld while watching, as it’s easy to miss key steps.

2. Identify and Organize Components by Value

• Resistors, capacitors, chips, jumpers – sort them out by model and size. Identifying material issues before commencing work can save time and enhance work efficiency.
• Our habit is: holding a highlighter, we compare each component one by one with the schematic diagram and the bill of materials, and draw wherever we solder.
• For small components, use tweezers to pick them up. For those directly inserted resistors and capacitors, place them closer and pick them up conveniently. As for the fine surface mount chips, they should be placed in trays to prevent them from being lost or knocked over.

3. Prepare and Clean the Board

• If you’re making a PCB (not using a pre-etched pre-made board), print your PCB design onto glossy/photo paper. Use software to mirror the image as needed for toner transfer.
• To prevent the copper surface from oxidizing, first sand the copper clad laminate with fine sandpaper, and then wipe it clean with board cleaning water or alcohol.
• After printing the circuit diagram, align it with the copper plate and press it down. When placing the iron on it, heat it evenly. Remember not to push it back and forth!

4. Etch and Drill the PCB

• Throw the processed board into the etching solution (usually ferric chloride), gently shake the container to allow the liquid to flow evenly over the board surface. At this point, you will notice that the copper foil, which was not protected by toner, is gradually disappearing.
• Under the premise of safety first, don’t miss any gloves or goggles! Prevent ferric chloride from splashing onto clothes and into the eyes.
• After etching, rinse thoroughly under running water (to prevent contamination, use a plastic basin to catch it, do not pour it directly into the sink). Gently brush off the toner with a soft-bristled brush, and the copper foil circuit gradually emerges
• After the board is dried, use a mini electric drill to drill holes one by one at the center of the pads, select the right drill bit size. Once the holes are drilled, insert the components into them

5. Populate the Board and Begin Soldering

• First, attach the flattest components, then medium-sized ones like capacitors, diodes, and IC sockets, and finally install switches, interfaces and the like.
• The soldering trips iron touches both the pads and the component pins simultaneously, feeds in the solder, and waits for it to flow out by itself to form a shiny little cone.
• Each solder joint can be completed in two or three seconds. If it takes too long, it is easy to burn the components or cause the solder pads to lift. Quality is sought in efficiency.

Common Mistakes to Avoid:

• Keep the soldering iron in one place for no more than three seconds. If it is left for too long, the copper foil may curl up. If you think it is not firm enough, you can let it cool down and then solder it again.
• Control the number of solder joints. If there are too few, there will be false soldering; if there are too many, they will pile up into balls and are prone to short circuits. The ideal solder joint should be a shiny little cone
• When two adjacent solder joints are joined together by solder, it is called bridging. They can be separated by solder tape and soldering iron.
• LED, electrolytic capacitor, diode, chip – all of these have positive and negative poles! Do not install it in reverse. Check the schematic diagram before operation.

6. Inspect and Test the PCB

• Each solder joint should be inspected. The qualified ones should be shiny small hills where the solder and the pads blend together very naturally.
• Confirm the following question: Is there any solder connection between the two solder joints? Is there any missed soldering in the chip leg? Are there any large components that are about to fall off due to being tilted？
• Switch to the on/off mode and first measure the power supply and ground. Then test along the critical path.

7. Power and Troubleshooting

• If conditions permit, use a current-limiting power supply and gradually increase the voltage from low to high.
• After powering on, use the back of your hand to feel the temperature of the components, smell with your nose to see if there is any burnt smell, and then check if the lights that should be on are on. If anything is wrong, cut off the power immediately!
• If the light doesn’t work or the function is incorrect, cut off the power first. Take out the schematic diagram and tutorial, and work backward from the output end:
  • Have the components been installed in reverse? Is the direction of the chip correct?
  • Are there any loose solder joints?
  • Have the lines that should be connected been connected?

Common Mistakes and Troubleshooting

Cleaning the Board & PCB Kit Maintenance

Keeping your PCB kit in top condition not only ensures your PCBs work for years but also helps you spot issues early.

Cleaning the Board

• Dip a soft-bristled brush in a little board cleaning water or alcohol, and gently brush off the remaining rosin flux on the board. Because flux absorbs moisture, it can corrode the circuits, and high-density pads are also prone to leakage and short circuits.
• After washing, keep it bright and carefully check if there are any extra tin beads or copper shavings on the board. Copper shavings can easily cause short circuits when electrified.
• The welded boards should be placed in anti-static bags or clean small boxes to prevent dust, moisture and static electricity.

Ongoing Maintenance

• Replace dull solder tips, old flux, and worn drill bits regularly.
• Keep printed guides, schematics, and any exported software files organized in a dedicated folder (digital and paper).
• Periodically inventory your essential items (library of components, tools, consumables) so you’re always prepared for your next kit or advanced projects.

Advanced Projects – Building More Complex PCBs

When you’re ready, PCB kits are only the start! Take your skills further with these advanced features and ideas:

• SMD Projects:Progress to surface-mount technology kits for truly modern electronics—these mimic industry-level PCBA.
• Custom Arduino Shields:Try designing it yourself. Draw the diagram in the software and export the Gerber file. Make a unique expansion board specifically for your own project.
• Multi-layer and High-Speed Boards:You can try multi-layer boards to make an audio amplifier, a robot drive module, or an Internet of Things communication board. These projects have high requirements for wiring, but it is precisely these that truly test the design technology.
• Embedded Programming:After soldering the hardware, it’s still necessary to get it working. Add a single-chip microcomputer, write a piece of code, connect sensors and motors – your board can sense the environment and respond.

Making PCBs at home at this level introduces you to the workflow of professional PCBA—from design and assembly to export and debugging.

Make PCBs at Home – DIY Kits and Hobbyist Tips

DIY Kit building is thriving because you can make PCBs at home without a full factory. Here’s the right approach for safe, successful results:

Tips for Making PCBs at Home

• Start with pre-made boards:First, weld a few of its ready-made boards to master the feel and process. How to bend the resistor, how to hold the soldering iron, and how to make the solder joints look nice.
• Try toner transfer:Want to quickly verify an idea? After drawing the picture on the computer, the laser printer prints it onto the glossy paper, and the electric iron presses it onto the copper-clad laminate – transfer printing, etching, drilling, and you can get your dedicated board in one or two hours.
• Experiment with component values:Try changing the color of the LED and the value of the resistor and capacitor to see what differences there are in the circuit response.
• Follow modern safety standards:Wear goggles and gloves to prevent etching solution from splashing onto your hands and solder fumes from being inhaled into your lungs.

FAQs: PCB Kits, Design & Assembly, PCBA, and More

What is a PCB kit in modern electronics?

LHD TECH is here to guide you through the PCB kit. Open the box and you’ll find everything inside:

• a blank PCB board
• all the necessary components (resistors, capacitors, chips, none missing)
• sometimes even soldering irons and solder are provided for you
• The most important thing – that step-by-step tutorial, the pictures are all clearly drawn for you

You don’t need to understand complex theories, nor do you have to search all over the world for parts by yourself. Follow the tutorial step by step and you will be able to solder a truly functional circuit board at home by yourself.

How do you design and export a custom PCB?

Want to make a board at home by yourself? First, let’s sort out a clear route

• First, use software that is extremely user-friendly for beginners, such as KiCad or Fritzing, to draw the circuit principle diagram. Don’t stop after drawing. With one click, switch to the PCB layout interface and start arranging components and routing.
• Once you have clearly arranged the board, the final step is to export the file – either generate a Gerber file and send it to the manufacturer for sampling, or export the mirror image and print and etch it at home by yourself.
• In just three steps – software, drawing, and exporting – your board will pop up from the screen and become a physical object!

What are common mistakes for beginners building a PCB kit?

• Installing components backwards
• Using the wrong resistor/capacitor values
• Cold solder joints from poor tip temperature control
• Not cleaning the board after assembly

What advanced features should I try after my first kit?

Move to SMD kits, create your own Arduino shields, or dive into complex projects with multi-layer boards or intricate modern electronic modules.

Safety first: What precautions matter most for hobbyists?

Always wear goggles and gloves, never touch the tip of your soldering iron, keep chemicals well labeled, and never pour etching solution down the drain. Follow the step-by-step cleaning guide for your PCB kit after every use.

Can I reuse components or boards?

Some components (resistors, caps, jumpers) may be salvageable, but pads can lift with repeated soldering. PCBs with SMD layouts often aren’t reusable. It’s good practice to only try salvaging on failed boards.

Conclusion: PCB Kit – The Ultimate Guide for Beginners

Playing with PCB kits is truly the fastest and most enjoyable way to get into the world of electronics! As long as the method is correct and safety is in place, follow the tutorial step by step, and you will soon be able to design, weld and troubleshoot by yourself – from the first small lamp to increasingly complex projects later on, you can handle everything!

And have you noticed? When you finish soldering a board by hand, you don’t just connect the components; you truly learn – how to turn the ideas in your mind into running circuits, how to understand the working principle of PCBS, and why almost all smart devices are inseparable from this tiny board.
