Introduction
In the manufacturing philosophy of LHDT TECH, the starting point of every high-quality PCB stencil from the precise control of basic processes – in modern SMT production, this means an ultimate mastery of stencil. We regard the PCB steel mesh as the skeleton of the printing process: it is a carefully selected and strictly maintained thin metal sheet, especially made of stainless steel, which supports the accuracy and consistency of solder paste printing in SMT assembly and is one of the core cornerstones for LHDT TECH to achieve reliable electronic manufacturing.
Whether you’re printing solder paste onto multi-layer circuit boards, assembling fine-pitch BGAs, or ensuring high volume production, the circuit board stencil is actually the unsung hero dictating defect rates, throughput, and reliability. In our view, inaccurate design, improper thickness or incomplete cleaning of steel mesh are by no means merely the sources of appearance defects. The essence of this is to disrupt the precise deposition of solder paste, which will change the physical form of electrical connections at the microscopic level and directly determine the electrical performance stability and long-term service life of the final PCB.
At LHDT TECH, we firmly believe that outstanding craftsmanship begins with a thorough understanding of core tools. For this reason, we have systematically sorted out our profound accumulation in the field of precision electronic manufacturing and condensed it into this updated technical for PCB stencil guide. It not only integrates verified best practices with immediately feasible technical guidelines, but also reveals the engineering essence of the synergy among steel mesh, PCB and solder paste.
In this guide, you will obtain:
- The Science of Hole Design: In-depth Understanding of the electrical and thermodynamic Logic behind the geometry of stencil apertures.
- Precise criteria for parameter selection: Master how to systematically determine the optimal opening size and solder paste thickness based on component density and process requirements.
- Full-process process insight: From steel mesh manufacturing, printing parameter setting to immediate inspection after printing, gain step-by-step engineering-level insights.
For assembly requirements that pursue zero-defect reliability, a thorough understanding of the steel mesh process is not an option – it is the cornerstone for LHDT TECH to ensure that every solder joint becomes a lasting electrical connection and mechanical support. This is not only about craftsmanship, but also the engineering commitment we make to deliver trust.
What is a PCB Stencil?
PCB stencil is the core mold in the SMT solder paste printing stage. Essentially, it is an ultra-thin metal sheet precisely processed according to the design documents – usually made of stainless steel, and in specific applications, nickel or polyimide materials are also used. The customized opening patterns etched or laser-cut and apertures on the surface of the steel mesh, in terms of position, shape and size, all maintain strict geometric correspondence with the PCB pads.
During the printing process, the steel mesh is precisely positioned above the PCB, forming a closed printing plane. When the scraper pushes the solder paste to move on the surface across the stencil at the set pressure, the solder paste is squeezed to fill each opening, and at the moment the steel mesh is demolded, a certain amount of solder paste is completely and precisely deposited on the PCB pads below. This process directly defines the initial material volume and shape of the solder joint and is the primary determining factor for the subsequent formation of reliable electrical and mechanical connections through reflow soldering.
Key Facts:
- A PCB stencil is a thin, flat sheet shaped to match your circuit board layout.
- Stencil apertures define both where and how much solder paste is deposited.
- Stencils ensure high repeatability and accuracy, crucial for fine pitch printing and reducing insufficient solder or bridging.
Why not just use screen printing for solder paste?
Traditional screen printing has been applied in dealing with large-sized components or through-hole insertion, but in the face of the micron-level precision and consistency required by modern high-density, fine-pitch SMT production, its technical limits have become evident. This generation gap in precision is precisely the fundamental reason why LHDT TECH insists on using high-precision steel mesh – for the core process of defining the volume and shape of micro-solder joints, only steel mesh can provide the necessary geometric accuracy and control force for achieving reliable electrical interconnection.
Advantages of Using PCB Stencils in SMT Assembly
Consistency and Precision
- Every pad receives the correct solder deposit each time, ensuring consistency across every finished PCB, which is critical for high-reliability and high-yield processes.
- SMT assembly lines using quality stencils report a 50–80% reduction in solder-related defects compared to manual or screen printing.
Speed and Scalability
- Using a metal stencilor solder paste stencil drastically reduces print cycle time. Automated printing machines can print hundreds of boards per hour across the stencil surface.
- Stencil printing is invaluable for PCB manufacturing at high volumes as well as prototyping.
Compatibility with Miniaturization
- As component size shrinks and pitch decreases, the role of fine pitch printing and accurate solder paste deposition becomes mission-critical.
- Only a well-designed stencil affords the accuracy needed for uBGA, QFN, and fine-pitch CSP packages.
Reduced Rework and Scrap
- Poor stencil design or insufficient cleaning can cause defects such as insufficient solder, bridges, tombstones, or cold joints, increasing costly rework.
- A precise stencil minimizes common printing defects and maximizes first-pass yield.
Types of PCB Stencils and Their Applications
Choosing the right stencil is paramount for your SMT process.
By Fabrication Technology
Laser-Cut Stencils
- The most common for modern SMT stencil production. Thickness can be tightly controlled; aperture edges are crisp, and openings can be tailored to optimize solder paste printing.
Electroformed Nickel Stencils
- Best for fine pitch printing and challenging assemblies. Electroforming creates ultra-smooth aperture walls, maximizing paste release even with the finest solder pastes.
Chemically Etched Stencils
- Less common in leading production lines due to coarser aperture walls; still used for large-area or low-cost applications.
By Mounting Method
- Framed Stencils:Pre-tensioned in a permanent frame. Robust, ideal for high-volume, automated SMT production.
- Frameless Stencils:Loose foils for use with universal frames; lower cost, space-saving, but require careful handling.
Step Stencils
- Have regions of different thicknesses (step-down or step-up areas) to deliver the ideal amount of solder paste onto both fine-pitch and large pads, all in a single pass.
Materials of PCB Stencils: Why Stainless Steel Dominates
Stainless steel leads the industry for PCB stencil manufacturing due to its unmatched balance of strength, flexibility, wear resistance, and affordable cost. Superior stencil printing is achieved when the material holds tight tolerances through thousands of print cycles.
| Material | Advantages | Best Use |
| Stainless Steel | Long-lasting, repeatable, easily laser-cut, stiff yet flexible | All modern SMT production |
| Nickel (Electroformed) | Extremely smooth walls—superior for fine-pitch or nano-apertures | Medical, aerospace, and miniaturized boards |
| Polyimide | Cheap, fast for prototyping or simple circuits | Early dev, low-cost, quick turn |
| Brass, Titanium | Niche or legacy, rare now | Specialized, historic, or super-wear resistant |
PCB Stencil Fabrication & Manufacturing Process
Contemporary stencil manufacturing techniques offer unmatched precision and reliability. The circuit board stencil’s capability is fundamental, as it directly translates into the consistent, repeatable solder paste deposition that high-quality SMT assembly demands.
1. CAD Preparation & Aperture Design
- Detailed PCB files (commonly Gerber or ODB++) are supplied to the stencil manufacturer.
- Specialist engineers review the solder paste layer and adjust every aperture for sizing, wall angle, special windows, cross-hatching, or skip printing.
- Design incorporates marks on both the stencil and the PCB for precise alignment in the printing process.
2. Cutting the Metal Stencil
- Laser cutting is the preferred technology in professional PCB fabrication. It enables sharp, smooth aperture edges at a wide range of thicknesses.
- For electroformed nickel stencils, apertures are “grown” by electroplating for unmatched smoothness—ideal for challenging SMT production scenarios.
3. Post-Processing and Surface Treatments
- Electropolishing removes microburrs and further smooths aperture walls to improve paste release.
- Nano-coating is sometimes applied to the stencil underside, making it less likely for solder paste to stick and thereby reducing cleaning frequency between prints.
4. Framing and Finalization
- The metal stencil is mounted onto a robust frame (if “framed”) or supplied as a frameless foil.
- All critical dimensions, thickness, and aperture geometry are checked.
- A final quality inspection is conducted on every stencil to verify dimensional accuracy, flatness, and aperture clarity. Only after passing all criteria is it formally released for SMT assembly, ensuring optimal print performance.
Step-by-Step PCB Stencil Printing Process
The solder paste printing process in SMT production is built on careful preparation and repeatable method:
- Stencil Setup:Mount your stencil and the PCB into the printing machine. Make sure that fiducial marks on the stencil and PCB align perfectly.

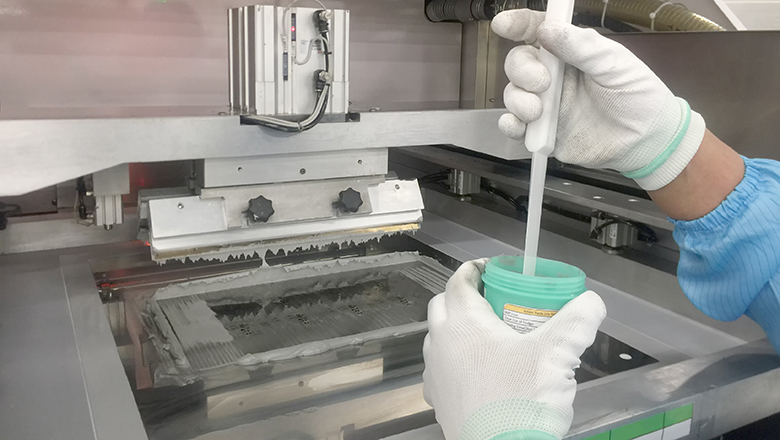

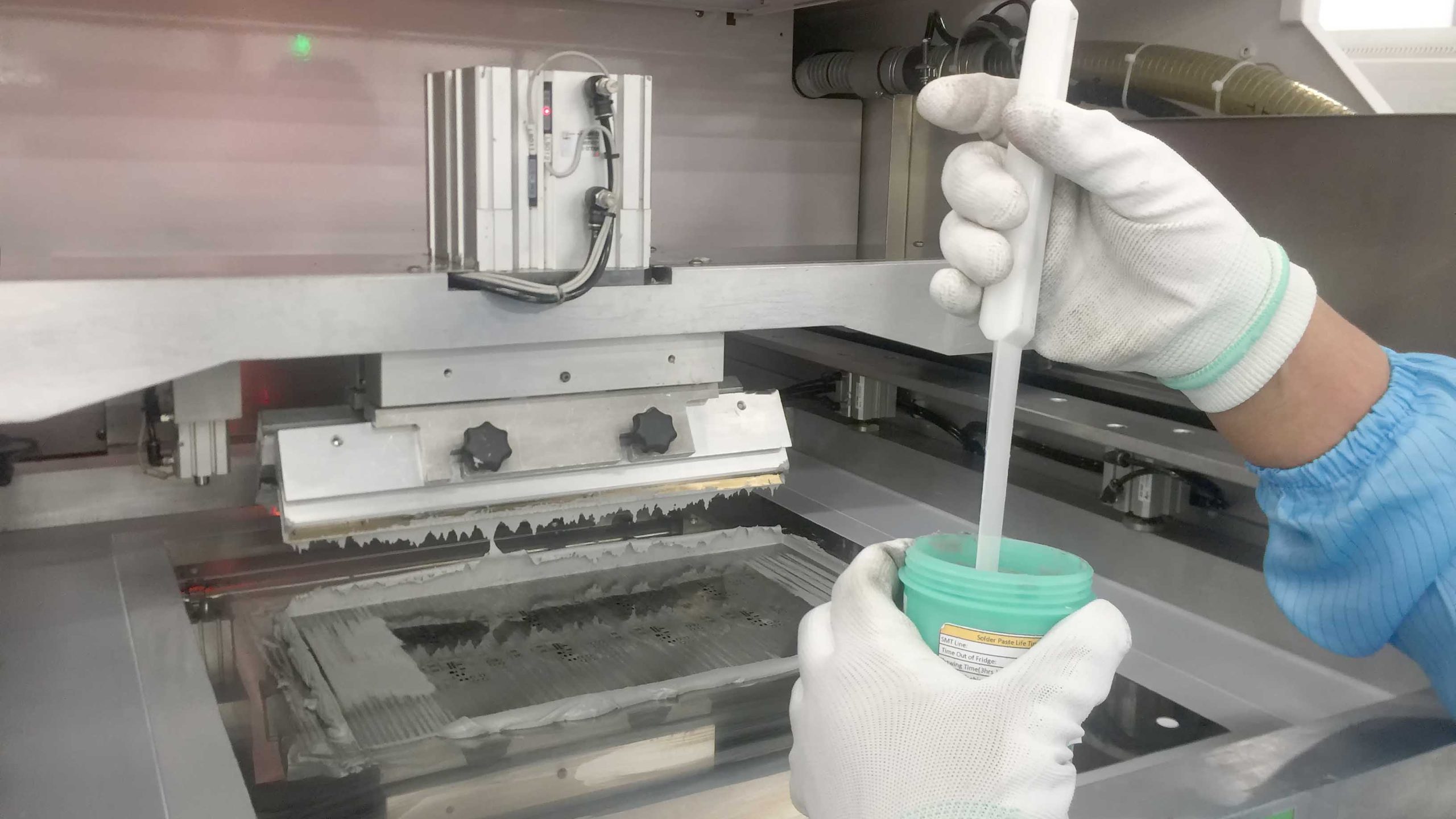

- Apply Solder Paste:Place a fresh bead of solder paste at one edge of the stencil. Use only as much as can be used in 30-60 minutes.
- Squeegee Stroke:Move the squeegee blade at the specified angle and pressure, pushing the paste across the stencil surface. The blade must fill every stencil aperture completely.
- Stencil Release:The machine (or human operator) lifts the stencil vertically away from the PCB surface—critical for well-defined solder deposits.
- Stencil Inspection:Immediately check for missing, incomplete, or smeared solder paste deposits. Use a microscope or automated SPI (Solder Paste Inspection) if possible.
Key Printing Parameters and SMT Solder Paste Application
Factors Affecting Print Quality
- Squeegee Speed:Slower speeds (20–40mm/s) for fine apertures; faster for large opens.
- Squeegee Angle:Steeper angles provide better aperture fill for fine pitch.
- Print Pressure:Must be just enough to clear excess paste from the stencil but not so much that it flexes the stencil or squeezes paste beneath the stencil.
- Paste Viscosity and Storage:Keep solder paste refrigerated; allow it to warm to room temperature before printing for optimal performance.
Common Printing Defects & How to Avoid Them
Common Defects in Solder Paste Stencil Printing:
| Defect | Causes | Solutions |
| Bridging | Too much paste, poor aperture design, thick stencil | Reduce aperture size, use thinner stencil, clean frequently |
| Insufficient Solder | Clogged aperture, too thin stencil, low AR | Clean apertures, use correct thickness, optimize geometry |
| Solder Balls | Excess paste, paste drying, poor cleaning | Adjust deposit, fresh paste, regular cleaning |
| Tombstones | Thermal imbalance, uneven paste | Use even geometries, verify pad design |
| Paste Smearing | Low viscosity paste, low stencil tension | Use adequate viscosity, inspect framing/tension |
Controlling your stencil printing process, including careful selection of thickness and aperture, is the number one way to prevent these costly issues.
Advanced Stencil Technologies & Trends
As electronics get smaller and more complex, specialty stencil solutions are changing the game:
- Step Stencils:Allow for dual (or more) thicknesses on a single stencil—critical for mixed-technology circuit boards.
- Nano-Coatings:Make the stencil underside repel solder paste, nearly doubling the interval between stencil cleaning cycles.
- AI-optimized Apertures:Emerging software automatically recommends the right stencil thickness and aperture geometry based on actual PCB pad and component data.
Trends in SMT Stencil Printing
- Integration with SPI/automated printers:Streamlines defect detection in real time.
- Eco-friendly stencil manufacturing:Sustainable metals, solvent-free cleaning, and biodegradable solder pastes now available for responsible PCB fabrication.
Stencil Cleaning, Inspection, and Maintenance
A vital but often overlooked aspect of high-quality PCB assembly is stencil cleaning and maintenance.
Best Practices:
- Clean the stencil after every run with approved solvents and lint-free wipes.
- Automate cleaning cycles for high-volume SMT printing lines—under-stencil cleaning increases yield and maximizes aperture clarity.
- Inspect for wear (burrs, cracks, warped frames) every 5,000 cycles or more frequently for fine-pitch/high throughput.
- Store stencils properly—place them upright in a dedicated rack, within a sealed container or cabinet that maintains controlled humidity. This prevents oxidation (corrosion) and protects the aperture walls from dust or damage.
Design for Manufacturability & Assembly Collaboration
PCB design, stencil fabrication, and SMT assembly must work together from the earliest project stages:
- Involve your stencil manufacturer when new packages or demanding component mixes are being designed.
- Send complete and up-to-date paste mask Gerbers, with special requests for aperture modifications clearly annotated.
- Proactively share yield and print defect data with your fabrication partners. This transparency is key to conducting root cause analysis and achieving the systematic reduction of defects.
Frequently Asked Questions
Q: What files do I need to order a PCB stencil?
A: The latest CAD paste mask Gerber, PCB fabrication drawing, and any special aperture or thickness requests. Also, assembly notes for step stencils or special finishes.
Q: How do I align the stencil with the PCB in the printing machine?
A: Precise alignment is the cornerstone of achieving zero-defect printing. In our technological system, we adopt a hierarchical alignment strategy based on the production mode and precision requirements:
- High-precision automatic mode: Relying on the optically optimized reference points on the PCB and steel mesh, it automatically recognizes and compensates for alignment through the machine’s vision system.
- Manual or prototype mode: Mechanically fix using precision locating pins that match the PCB tool holes.
Q: Can I reuse stencils for future production runs?
A: Sure, but reusability is based on strict full life cycle management. A high-quality steel mesh can indeed withstand thousands of printing cycles. The end of its lifespan is not determined by time but by the quality of the execution of the following key maintenance nodes: timely cleaning, professional storage, periodic inspection and verification. Our practice shows that “reuse” without institutionalized management is a major source of quality risks.
Q: What’s the primary cause of insufficient solder in finished PCBs?
A: Clogged aperture, low area ratio, or paste drying in the stencil. All are resolved via smart aperture design, stencil cleaning, and controlled printing parameters.
Q: Are thinner stencils always better?
A: By no means. The selection of steel mesh thickness is a crucial design compromise, with the aim of achieving the optimal distribution of solder paste volume across the entire plate.Thinner steel mesh (such as 100-120μm) /Thicker steel mesh (such as 130-150μm)。Our engineering principle is: to conduct comprehensive calculations based on the densest and most tin-consuming components on the board and find the global optimal solution.
Q: What is the ideal process for stencil cleaning?
A: For top-tier SMT production, clean both the stencil surface and its apertures after every 5–10 prints, or sooner if print definition drops. Automated under-stencil cleaning systems in modern printing machines are highly effective and minimize downtime. Always use lint-free wipes and PCB-safe solvents. Regular inspection under magnification is crucial to ensure clean apertures and avoid buildup that leads to insufficient solder deposits.
Q: Can a stencil be used for prototype and full production?
A: Yes, but this is based on strict premises and a clear understanding. Theoretically, as long as the PCB design remains unchanged, a professionally maintained steel mesh can be used at different stages. However, there are essential differences in the requirements for steel mesh between prototypes and mass production:
- Prototype/small batch stage: The core demands are rapid iteration and flexibility
- In the stage of large-scale mass production: The core demands are ultimate stability and repeatability.
Our core practice is: After the prototype verification and design finalization are completed, we recommend using a brand-new, fully inspected framed process-grade steel mesh for the official mass production order.
Q: What signals that a stencil needs replacing?
A: In the preventive maintenance system of LHDT TECH, the replacement of steel mesh is not based on subjective judgment, but is an active decision triggered by a series of quantifiable and traceable technical indicators:
- Direct evidence of physical performance degradation: permanent deformation/loss of open-hole integrity/functional damage
- Persistent anomalies in process quality output:Under the condition that the printing parameters and materials remain unchanged, the coefficient of variation (Cpk) of SPI data continues to deteriorate.After reflow soldering, non-design causes such as bridging, insufficient soldering or false soldering defects occurred, and the root cause analysis pointed to openings in the steel mesh.
- Procedural triggers for lifecycle management：Reach the preset upper limit of printing cycles.Regular tension testing shows that its tension value has decayed below the critical threshold, which cannot guarantee the flatness and stability during printing.
Conclusion: Achieving High-Quality PCB With The Right Stencil
In the SMT assembly system of LHTD TECH, precision stencil is far from an ordinary tool; it is a deterministic feedforward node that defines the quality of solder joint formation. From the design of openings, stencil thickness selection to PCB stencil manufacturing and maintenance, every decision made around the steel mesh is like writing the initial “quality gene” for the entire assembly process. These decisions, through the precise transmission of solder paste volume and shape, directly preset the reflow soldering process window and ultimately lock in the electrical performance and long-term reliability of the PCB in end applications. Therefore, controlling the steel mesh is the cornerstone of maintaining consistency in mass production.
Actionable Summary:
- Prioritize stencil design—especially thickness and aperture size—for the most demanding components on your PCB.
- Work closely with your PCB fabrication, stencil manufacturing, and assembly partners to foster a culture of DFM and continual improvement.
- Emphasize stencil cleaning and inspection as a core part of your SMT process, not a secondary chore.
- Utilize advanced technologies like step stencils, nano-coatings, closed-loop process feedback, and area/aspect ratio calculators for the most complex assemblies.
- Approach every build—prototype or production—with the mindset that your stencil is a precision tool, not a commodity.The quality of your solder paste printing and, by extension, your finished PCBs, depends on it.
At LHDT TECH, we master the intricate interplay between stencil, PCB, solder paste, and the printing process. Our systematic approach is engineered to elevate your operation, delivering the higher yields, reduced defects, and competitive edge essential in modern electronics manufacturing.
