What Are Blind Vias, Buried Vias, and Micro Vias?

Introduction to PCB Vias in Modern Electronics

In the realm of modern electronics, the technological evolution of printed circuit boards is closely related to the efficiency of electrical connections between layers. PCB vias provide the technical foundation that supports high-density and multi-functional interconnection. These vias are tiny holes drilled between the layers of a circuit board and plated with copper. They perform the task of vertically transmitting electrical signals across multiple board layers. Compact, high-speed and robust circuit designs are made possible as a result.

Why Are Vias Essential to Modern Electronics?

Vias are not ordinary drilled holes. They are precision-machined openings designed to transmit electrical signals between the layers of a circuit board.Various via technologies include blind vias, buried vias, microvias and traditional through-hole vias. Without these technologies, complex high-density interconnect (HDI) designs would be unachievable. Such designs form the core foundation of today’s electronic products.From smartphones to aerospace equipment, vias determine key performance outcomes: whether a PCB can fit all necessary components, deliver high-speed signal transmission and maintain electrical integrity within an extremely compact form factor.

What Are PCB Vias and Why Are They Essential?

A PCB via is a small but vital hole filled or coated with copper, sometimes called a vertical interconnect access (VIA). These vias are drilled through the layers of a PCB during the pcb manufacturing process and then plated to make them fully conductive paths for signals and power.

Vias Make Multi-Layer Boards Possible

• Electrical signals need to be transmitted between the different layers of a circuit board. This process is the prerequisite for achieving all necessary connections.
• PCB vias establish an electrical connection between the top or bottom layer and one or more inner layers. Through this connection, intricate circuits are enabled to achieve three-dimensional routing.
• Vias are typically filled or capped during PCB production to ensure mechanical strength and solderability.
• The layer count of modern PCBs often exceeds 4, 8, or even 16 layers, with vias essential to connecting traces within the board at every level.

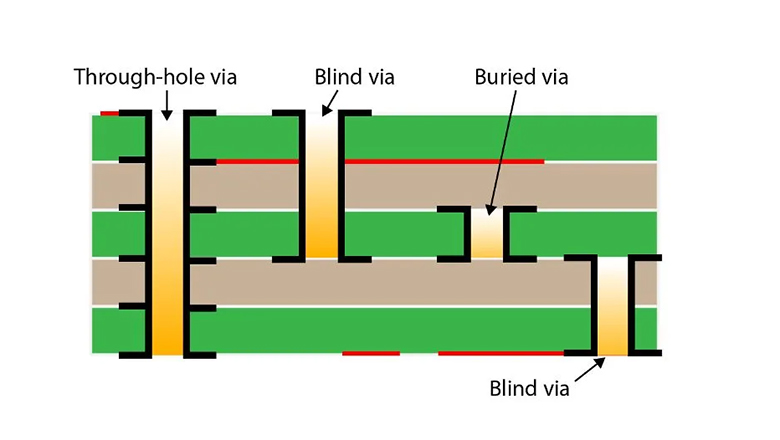

Vias and Their Types: A Summary

Vias are a type of hole, but not all holes are created equal. The core types of vias used in PCB manufacturing are:

• Through-hole vias:Go all the way through the board from top to bottom.
• Blind vias:Connect an outer layer to one or more inner layers, but do not extend through the entire board.
• Buried vias:Connect only between inner layers, never appearing on the top or bottom.
• Micro vias:Special very small vias, usually produced by laser drilling, essential for HDI and fine-pitch component layouts.

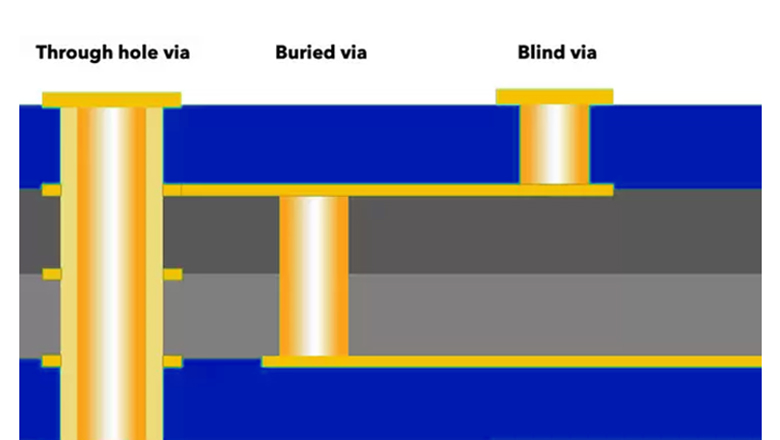

Different Types of Vias in PCB Design

Let’s take a closer look at each type of via, their structure and where they shine in modern PCB design:

Through-Hole Vias

• Definition:Plated holes drilled from the top layer all the way to the bottom layer of the board.
• Applications:Used in traditional PCB manufacturing and less complex PCBs, as well as for robust mechanical/electrical connections such as connectors or big components.
• Advantages:Easy to inspect; low cost; compatible with most PCB manufacturers.
• Drawbacks:Occupy space on both outer layers of the PCB; limit high-density routing options.

Blind Vias

• Definition:These connect an outer layer to one or more inner layers without passing through the entire PCB. Blind vias connect only part way, making them ideal for high-density routing from surface components.
• Use Cases:Ideal in HDI PCB designs for smartphones or compact IoT devices, where space on the outer layer is critically valuable.
• Advantages:Preserve outer layer real estate for dense trace routing or power planes; reduce unnecessary signal stubs.
• Drawbacks:More complex to manufacture; costlier due to extra drilling and plating steps.

Buried Vias

• Definition:Buried vias connect inner layers without reaching the top or bottom surface. These are “hidden vias,” only found within multi-layer boards.
• Applications:Used to further increase layer count and to route complex signals within the board, free from surface routing constraints.
• Advantages:Enable even higher signal routing density; make room for more surface components.
• Drawbacks:Manufacturing buried vias is more complex, involves sequential lamination and adds cost.

Micro Vias

• Definition:Micro vias are very small vias, usually under 0.15mm in diameter, produced by advanced laser drilling.
• Use Cases:Micro vias in PCB fabrication are essential for BGA or CSP packages where trace paths are extremely limited. Used in the smallest, highest-density HDI.
• Advantages:Allow ultimate miniaturization and layer stacking in modern electronics.
• Drawbacks:Require precise aspect ratio control; manufacturing is costly and sensitive to process errors.

Three Types of Vias and Applications

Blind Vias: Unique Role in High-Density Interconnect

Blind vias are drilled from the top or bottom of the board and stop at a designated inner layer. In HDI PCBs, which are used in high-density and miniaturized electronics, blind vias are used to route signals from the surface to internal circuitry without interrupting the opposite side of the PCB.

Manufacturing and Design Notes

• Proper blind via design requires close control over the aspect ratio (via depth to via diameter).
• Blind vias are typically created before the final lamination, adding complexity but allowing for optimal placement in high-layer-count boards.
• Using tented vias (vias covered by solder mask) on blind vias is one approach to protect the via, prevent solder wicking into the holes during PCB assembly and minimize risk of accidental shorts or contamination.
• Blind vias are also frequently filled and capped when used in via-in-pad configurations for high-density BGAs, further improving planarity and assembly yield.
• As PCB designs become more advanced, especially in high-speed digital circuits, designers must collaborate with their PCB manufacturer to get the correct drilling method (mechanical or laser) and the tightest possible tolerances for blind vias.

Critical Insights

When planning blind vias in a PCB, consider that the aspect ratio (depth to diameter) should not exceed manufacturer specs—commonly a 1:1 aspect ratio for reliability. This is crucial when blind vias connect the outer layer to deep inner layers in a thick PCB stackup. Too high of an aspect ratio may cause incomplete plating, leading to signal opens and reliability problems, especially in HDI and medical device PCBs.

Buried Vias: The Hidden Vias Within the PCB

Buried vias are found exclusively within the inner layers of a PCB—they never reach the top or bottom surfaces, truly living up to the name “hidden vias.” Buried vias connect only inner layers without reaching the outer layers, making them essential for extremely complex PCB designs where every square millimeter of routing space is needed.

Buried Vias in Practice

Imagine a 12-layer high-density router board: its signal and power distribution layers are completely routed with buried vias, freeing up top and bottom layers for component pins and I/O connectors. This approach keeps sensitive signals shielded within the PCB, reducing EMI and allowing the outer layers to be optimized for assembly and mechanical mounting.

Buried vias are ideal for:

• High-performance computing and networking PCBs with large layer count and very high pin counts.
• Medical and aerospace electronics, where signal reliability and density are mission-critical.
• Any complex PCB where multiple layers of the PCB must be interconnected without cluttering either the top or bottom surfaces.

Manufacturing and Design Notes

• Buried vias is more complex:The board is constructed in stackup stages. Inner layer pairs are laminated, drilled and plated first. Then more layers are laminated and the process repeats until the entire board is built—sequential lamination.
• Inspection of buried vias must happen at each lamination stage; once encapsulated, rework or repair is impossible.
• Buried vias tend to increase fabrication cost and lead time. However, for applications with demanding requirements, this investment pays off in reliability and PCB performance.

Micro Vias: Miniaturization in Modern PCB Design

As PCB sizes continue to shrink and components undergo ongoing miniaturization, microvia technology has become critical to achieving ultra-high-density wiring—especially the microvias employed in HDI stack-up structures. The diameter of such microvias is typically controlled within 0.15 mm. As core elements of High-Density Interconnect (HDI) PCBs, they are widely used in smartphones, wearable devices and advanced automotive and aerospace electronic systems.

Micro Vias in HDI and Modern Electronics

• Micro vias allow designers to route traces beneath small package types, such as wafer-level chip-scale packages (CSPs) and ultra-fine pitch BGAs.
• In a mobile phone mainboard, micro vias make it possible to connect each pad of a 0.4mm pitch BGA to the next internal layer, something impossible with regular vias or even blind or buried vias at larger diameters.

Special Considerations for Micro Vias

• Micro vias are very small in size. The drilling process must be precisely controlled within the thickness of a single layer. Laser drilling serves as the solution for creating such holes.
• The aspect ratio of microvias must be controlled at an extremely low level.This ratio is generally required to be 1:1 or lower.Taking a microvia with a diameter of 0.1 mm as an example, its depth must also be controlled at 0.1 mm.Such dimensional design ensures that the copper layer can uniformly cover the hole wall during electroplating, while preventing the risk of fracture caused by stress concentration.
• Micro vias are often stacked (vertically aligned) or staggered (offset from one layer to the next). Staggered micro vias are more robust under thermal cycling but may require more routing space.

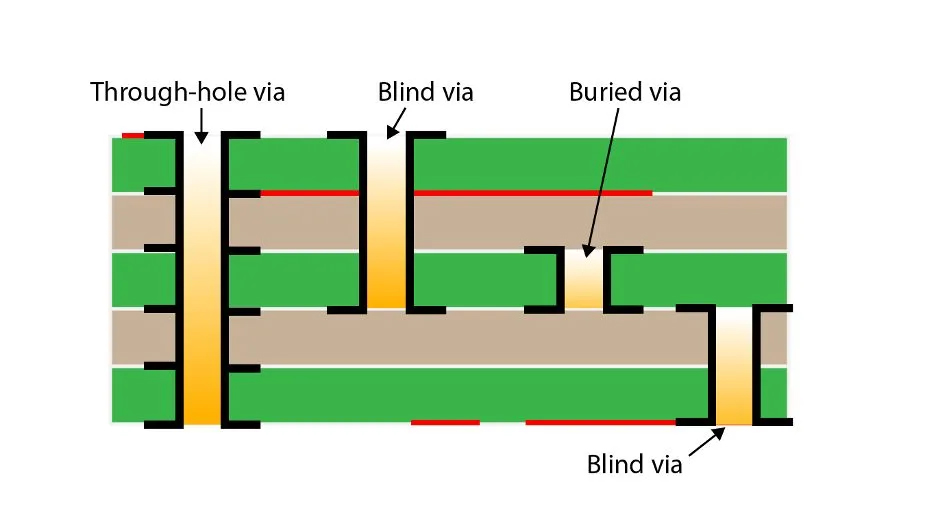

Through-Hole Vias vs. Blind and Buried Vias: Key Differences

One of the most important aspects of modern PCB design is knowing the differences between blind vias, buried vias and through-hole vias. Each type of via has different manufacturing requirements, electrical properties, and is suited to specific applications.

Through-Hole Vias

• Traditional and easy to manufacture, through-hole vias go all the way through the board, exposing both the top and bottom layer of the PCB.
• Ideal for simple or legacy PCBs, connectors and components needing strong mechanical fixing.
• Not ideal for modern high-density PCBs: they block all layers vertically and prevent additional traces underneath the via, increasing layer count unnecessarily.

Blind and Buried Vias

• Blind vias establish the connection between the outer layers and the inner layers.Buried vias are used to connect the inner layers.These connections are not visible from the outside.
• These via types are essential for high-density routing, reducing PCB size and making complex multilayer boards practical for modern electronics.

Summary: Differences Between Blind, Buried and Through-Hole Vias

Blind Vias vs Buried Vias vs Micro Vias

The Role of Vias in High-Density PCB Design

High-density interconnect (HDI) is not just a buzzword; it represents the real challenge of modern electronics—making every millimeter of the PCB count. Whether you’re designing a fitness tracker or a satellite communications module, HDI PCBs rely on blind, buried and micro vias.

• HDI Layer Stackup:Vias allow trace routing on and across multiple layers of the PCB, supporting dozens of signal, power and ground nets in a compact space—often within 0.6–1.2mm board thickness!
• By using different types of vias, designers keep layer count lower, which reduces cost, improves power integrity and minimizes manufacturing risks.
• Vias in HDI PCB design must be optimized for electrical performance, manufacturability, heat dissipation and ease of assembly (minimizing open defects and ensuring reliability).

PCB Manufacturing Process for Blind, Buried and Micro Vias

A successful PCB depends as much on process as design. Advanced via types demand advanced manufacturing techniques—from precision drilling to sequential lamination and copper plating.

The PCB Manufacturing Steps

1. Design for Manufacturability (DFM) Review:Define exactly which type of via (through-hole, blind, buried, micro via) will be used on each part of the board, and the stackup/layer connections they require.
2. Drilling:Use mechanical drilling for larger blind or buried vias; use laser drilling for micro vias in HDI.
3. Sequential Lamination:Laminate pairs or groups of layers, drill, plate the vias and then add more layers. For complex PCBs or higher layer counts, this process repeats multiple times.
4. Plating:Electrochemically plate holes with copper, filling the via and electrically connecting all necessary layers.
5. Inspection & Test:Automated Optical Inspection (AOI), X-ray, and electrical tests check for plating completeness, shorts or opens—especially important for hidden and buried vias.

Working With Your PCB Manufacturer

• For all types of vias—but especially for blind, buried, and micro vias—it’s critical to consult early with your pcb manufacturer to get stackup reviews and feedback. Every fabricator has slightly different limitations for aspect ratio, drill diameter and sequential lamination.
• A mature pcb manufacturing process includes Design for Manufacturability (DFM) checks that verify via location, spacing, and clearance from traces and pads. These checks can prevent costly errors during production and assembly by ensuring all vias used in pcb fabrication are within capability.
• Always note that buried vias connect inner layers without reaching the outer surface; so inspection is only possible during intermediate stackups, making a stringent QC approach necessary.

Common Issues and Troubleshooting with PCB Vias

In complex PCBs or high-density interconnect (HDI) structures, vias may encounter various technical challenges. Below are common issues and their corresponding solutions.

• Void Formation in Plating:Especially in micro vias or vias with too high aspect ratio, copper may not plate evenly throughout the barrel, risking opens. Always check that the aspect ratio for all blind and buried vias is consistent with manufacturer recommendations (preferably ≤1:1 for high-reliability designs).
• Cracked or Deformed Vias:Rapid temperature cycling in modern electronics (such as automotive or military applications) can cause cracked barrel plating, particularly in stacked micro vias. Stagger layers where possible, and use cross-sectional analysis to verify reliability.
• Solder Wicking (Via-in-Pad):If open, untented vias are in BGA or CSP pads, solder may wick away during assembly, causing voids or opens beneath the component. The solution is to fill and cap (or tent) all micro vias and blind vias within pads.
• Signal Integrity Issues:Blind vias and micro vias are typically used for high-speed signal routing due to reduced stub length. If regular vias or through-hole vias are used in high-frequency lines, signal degradation, EMI or crosstalk may occur.
• Layer-to-Layer Misregistration:In complex PCBs with many layers, misalignment during sequential lamination can cause vias to miss their intended pads. Use trusted manufacturers and require stackup verification at each build phase.

Best Practices for Vias in Complex PCB and Modern Electronics

To maximize performance and reliability, consider these best practices for designing and using different types of vias in PCB:

• Choose the type of via based on function:Use through-hole vias for strong electrical and mechanical bonds; use blind vias for high-density outer-to-inner layer routing; buried vias for complex bus or internal signal paths; and micro vias for ultra-compact, high-speed and high-layer-count applications.
• Manage aspect ratio:Keep via depth to diameter as close to 1:1 as possible to ensure reliable plating, especially in HDI boards.
• Tented vias:Always tent or fill vias that lie within BGA or SMT pads to prevent assembly defects.
• Design for testability:Whenever possible, use accessible test vias for critical nets to allow AOI and electrical testing—even if buried vias are used elsewhere.
• Thermal vias:For high-power components, use arrays of filled and plated thermal vias to conduct heat into internal layers without increasing board thickness.
• Impedance and EMI:Minimize via stubs (the portion of a via without signal) for high-speed or RF signals by removing unused barrel length or using proper via backdrilling.

Key Takeaways: Vias and Their Applications

• Vias are essential elements in every printed circuit board. They enable the transfer of electrical signals among the layers of a PCB, forming the backbone of high-density, multi-layer electronic systems.
• There are different types of vias: through-hole, blind, buried, micro. Each serves a unique role and must be strategically used in complex PCB layouts.
• Blind vias connect the outer layer to one or more internal layers without traveling through the entire board, ideal for dense BGA routing in HDI PCBs.
• Buried vias connect only inner layers, allowing designers to hide complex routing and maximize component space on external layers, but their process is more complex and costlier.
• Micro vias are very small vias, used to achieve the highest density in HDI and miniaturized PCBs. They are indispensable in smartphones and high-speed digital circuits.
• Collaborate closely with your pcb manufacturer to get the right process for your board layer stack, ensuring all aspect ratios, sizes and tolerances are manufacturable and reliable.
• The correct choice and implementation of blind and buried vias, micro vias and through-hole vias determine whether your PCB manufacturing will yield cost-effective, reliable and high-performance boards.
