What is Copper Foil in PCB

Table of Contents

What is Copper Foil in PCB?

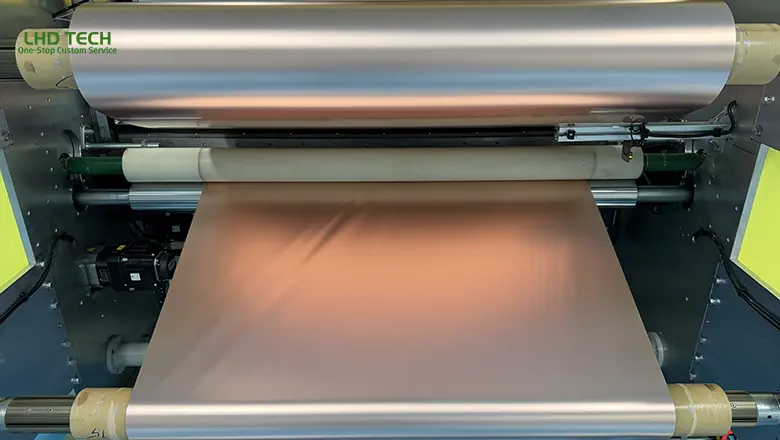

copper-foil​

Copper foil is a thinner of copper metal,it was used extensively in printed circuit boards (PCBs). In the define of pcb manufacturing, copper foil work as the primary conductor—it forming the intricate circuit paths and allow electricity to flow, also enabling everything from smart phones to industrial machine. Specially, a copper foil in PCB is laminated to a non-conductive substrate, for example fiberglass reinforced epoxy or phenolic resin, which to create copper clad laminate (CCL).

When we see a printed circuit board, what need to looking at the traces and pads formed from the thin layer of copper, it crafted through etching and plating processes. The copper foil—either electrodeposited copper foil (ED copper foil) or rolled annealed copper foil (RA copper foil)—will becomes the backbone of any electronic product in today.

Key Points:

  • Copper foil is made using highly controlled methods for purity, thickness, and surface quality.
  • The manufacturing process and copper foil type determine PCB electrical performance and reliability.
  • PCB copper foils must meet exacting standards for everything from 2 oz copper power boards to tiny thin layer of copper patterns.

The Role of Copper Foil in Printed Circuit Board (PCB) Design

In pcb design, copper foil is responsible for more than just conducting electricity. It defines track width, current capacity, impedance, shielding, heat handling, and even product cost. A main part of PCB design is the designer chooses and arranges of the copper foil: whether set thick copper for power rails on a rigid PCB, we can use low-profile copper for high-frequency signal lines, or deploy PCB copper foils with double-treated surfaces in order to ensure the adhesion.

A main part of modern PCB design is to balance manufacturing costs with design requirements,it including trace width, copper current, via filling, and heat dissipation. Since technologies is SMT (Surface Mount Technology) and HDI (High-Density Interconnect) which push circuit density higher, designers usually rely on thinner copper foil and increasingly precise processes.

PCB Materials and Copper Clad Laminate

A typical printed circuit board is not made of copper alone, but is a composite structure. The copper foil is laminated with a various of substrate materials, each have unique properties:

  • Epoxy Resin (FR-4): The most normal substrate in PCBs, it offer balance electrical insulation, mechanical strength.
  • Phenolic Resin: Using in lower-cost, mass-production boards, and combined with impregnated paper.
  • Alkali-Free Glass Cloth: Reinforces high-performance PCBs, supporting fine lines and thin copper layers.
  • Polyimide and Quartz Glass Cloth: Using for specialty, high-temperature, also aerospace boards.

The copper clad laminate (CCL) is the foundation; the process of laminating copper foil on these materials determines adhesion, peel strength, warping (PCB warping), in final product quality. The role of copper foil in CCL is aim to form a continuous metal foil layer, later it will be patterned into circuits.

Manufacturing Process: How Copper Foil is Made for PCBs

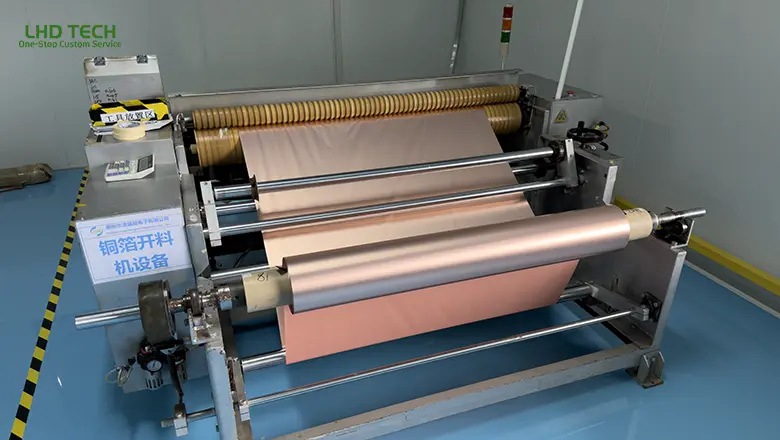

copper-metal-foil​

Copper foil for PCBs is produced the advanced manufacturing processes, which was designed to optimize purity, thickness, and adhesion properties. Two main processes will used in modern PCB manufacturing:

1. Electrolytic Copper Foil (ED Copper Foil) Manufacturing Process

  • Copper ions are deposited through electroplating copper onto a rotating stainless steel drum.
  • The resulting sheet of copper is precisely scraped off, washed, also treated chemically.
  • The thickness of copper foil is controlled by speed, plating current, and bath chemistry.
  • The completed continuous metal foil have standardized properties for thickness, peel strength, and surface roughness.

2. Rolled Annealed Copper Foil (RA Copper Foil) Manufacturing Process

  • Copper billets are rolling into thin sheets—sometimes it is thinner than human  —then annealed (heat treated) in order to improve ductility.
  • RA copper foils with smoother surfaces, makes them ideal for high-frequency PCBs, flexible PCBs, and rigid-flex PCBs.

Other Methods

  • Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) is used for a very thin or ultra-uniform foils in next-generation applications.

Different Types of PCB Copper Foil

There are many types of PCB copper foil, it usually serving different performance demands and applications:

Classification by Process

  • Electrodeposited Copper Foil (ED Copper Foil): Most normal type, especially for rigid multi layer PCBs.
  • Rolled Annealed Copper Foils: Used for flex or maybe rigid-flex PCBs, high-frequency pcbs.
  • Deposition Copper Foil: Using in HDI and elite performance applications.

Classification by Thickness

  • Thick Copper Foil: Greater than 70 μm, normally used for power PCBs and applications with high copper current.
  • Conventional Copper Foil: 18–70 μm (e.g., 1 oz copper foil = 35 μm, 2 oz copper = 70 μm).
  • Thin Copper Foil: 12–18 μm, best for high-density, lightweight PCBs.
  • Ultra-Thin Copper Foil: Less than 12 μm, preferred for extreme miniaturization and HDI circuits.

Classification by Surface Profile

  • Low-Profile Copper (LP)
  • Very Low Profile (VLP)
  • High Very Low Profile (HVLP)
  • Double Treated (DT) and Single Treated Foil
Copper Foil TypeThickness (μm)ApplicationFeatures
Thick Copper Foil>70Power, automotive, heavy currentExcellent current & heat
Standard Copper Foil18–70Most PCBsGood balance of cost/performance
Thin Layer of Copper12–18HDI, mobile devicesEnables fine lines
Ultra-Thin Copper Foil<12Next-gen wearables, SiPMaximum flexibility, minimal signal loss

Classification by Application Scope

  • Copper Clad Laminates (CCL): Most PCBs will use standard copper foil laminated to resin/fiber substrates.
  • PCB Copper Foil: Especifically engineered for printed circuit board use, requiring precise control of thickness, purity, and adhesion.
  • Lithium-Ion Battery Foil: It require extremely high purity and ultra-smooth surfaces.
  • Electromagnetic Shielding and Anti-Static Applications: Used as shielding and ground planes within or atop the circuit board.
  • Flexible Board and Rigid PCB: Each has distinct foil needs—flex boards love ductility and peel strength, but rigid PCBs can use thicker copper for robustness.

Electrodeposited Copper Foil (ED Copper Foil) in PCB

Electrodeposited copper foil is a workhorse of PCB manufacturing. Its production process (electroplating copper onto a rotating drum, then treating and rolling the resulting foil) can enables the ultra-consistent thickness control, make it ideal for multilayer rigid PCB production and cost-sensitive mass production.

Advantages of ED Copper Foil:

  • Standardization: Well-suited for big-volume, automated manufacturing.
  • Excellent for Multi-Layer Boards: Provides the structure demand for stacked layers.
  • Cost Effective: Especially for boards it is extreme ductility not required.
  • Supports Thick Copper Designs: Available in a wide range, from ultra-thin to thick copper.

Rolled Annealed Copper Foil (RA Copper Foil) and Foil Types

Rolled annealed copper foils are price for applications, it require frequent bending, higher mechanical durability, or smooth copper surfaces:

Features of Rolled Annealed Copper Foil:

  • Superior Ductility: High ductility withstands repeated bending to avoid cracks, ideal for flexible PCBs in wearables, cameras, foldable phones and medical devices.
  • Extraordinarily Smooth Grain Structure: Fine, uniform grain structure reduces signal loss and boosts high-frequency performance, perfectly suited for RF and microwave circuits.
  • Can Be Made Ultra-Thin: Perfect for miniaturized, high-density circuits, in a few microns can matter.

Low-Profile and Special Surface Treatments

  • Low-Profile (LP), Very Low Profile (VLP), and HVLP: It can reduce roughness and improve signal clarity in high-speed, or high-frequency design.
  • Double Treated (DT):Surface treatments on both sides can maximize adhesion for specialized, multi layered stack ups.

Thickness of Copper Foil in PCB Manufacturing

Thickness of copper foil in PCB design directly affect current capacity, mechanical durability, trace width, cost, and the overall performance of the board.

Common PCB Copper Foil Thicknesses

Copper WeightMetric Thickness (μm)Applications
1/3 oz~12HDI, fine-line, flex PCB
1/2 oz~17.5High-density, lightweight PCBs
1 oz~35Standard for most PCBs
2 oz~70Power/automotive/industrial PCB
3 oz~105Heavy current, special applications
4 oz+~140+High-power converters, motor drives

How PCB Designers Choose Copper Thickness

  • High Current Traces: We can use thicker copper (2 oz copper or more) for power delivery, voltage rails, and thermal management.
  • High-Density or Fine-Pitch: We can use thinner foil for fine lines or tight trace spacing.
  • Thermal Considerations: Thicker copper helps distribute heat, it is essential in designs of power components.
  • Signal Integrity: RF and high-speed PCBs often use low-profile, thin copper to mini the impedance, the skin effect losses.

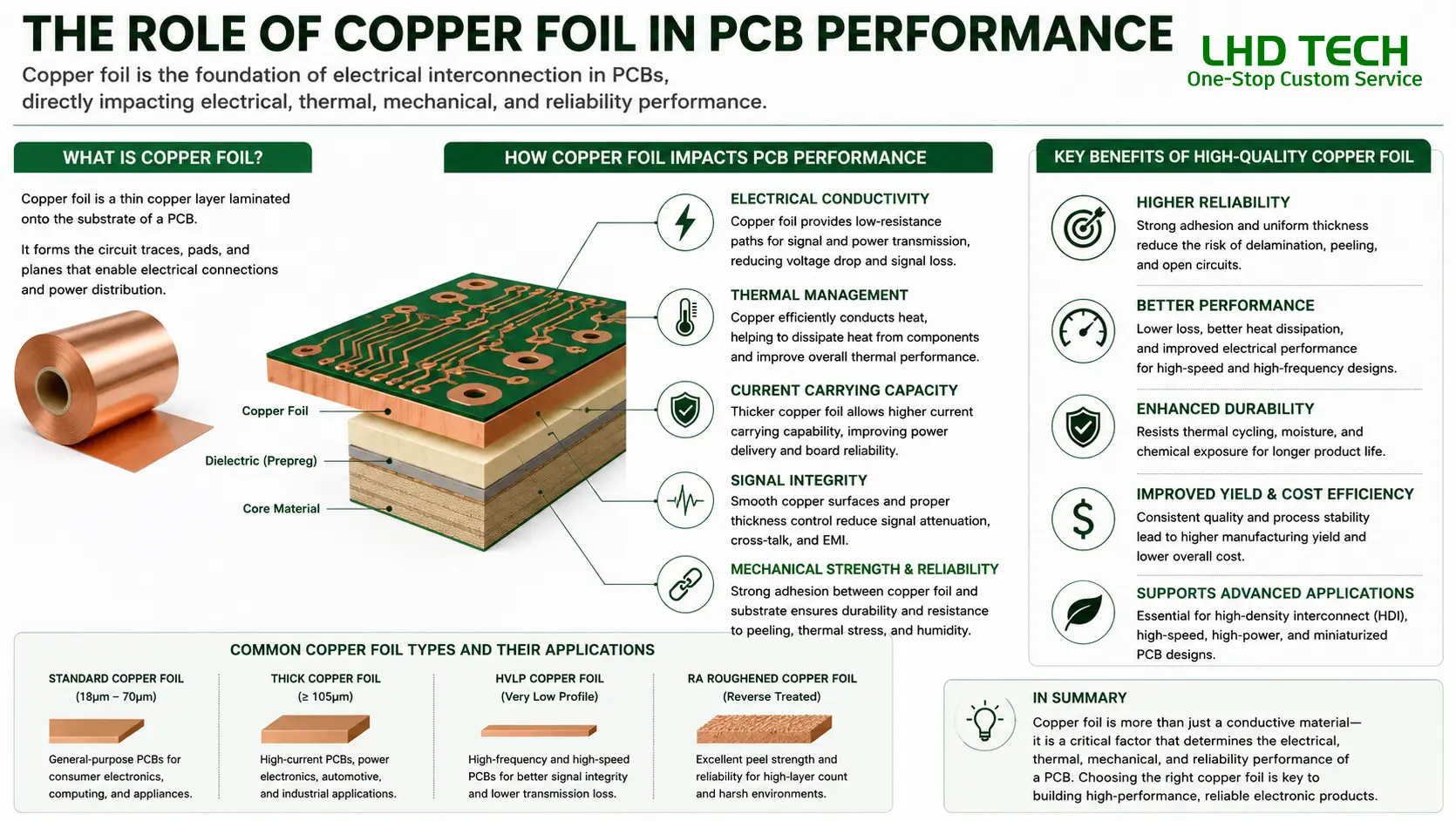

The Role of Copper Foil in Circuit Board Performance

copper-foils​

Copper foil is a thin yet incredibly powerful enabler: its properties touch every electrical and mechanical element of PCB function.

Key Roles Include:

  • Electrical Conductivity: Transfers signals and power efficiency—high conductivity copper keeps resistance and power loss low.
  • Thermal Conductivity: Assists in heat spreading and dissipation, prevent hot spots around power semiconductors.
  • Mechanical Strength: Contributes to the rigidity and durability of the board, especially  in HDI, automotive, harsh industrial environments is important.
  • Signal Integrity: Surface roughness and uniformity, it affect the propagation of high-speed signals directly .
  • EMI/ESD Protection: Works as a shield against outside electromagnetic noise and provides safe paths ground for electrostatic discharge.

PCB Design Tips for Copper Foil

Optimizing the PCB design for copper foil which can dramatically improve cost, performance, and manufacturability.

Practical PCB Design Tips:

  1. Clearly Specify Copper Foil Type: In customer’s Gerber or ODB++ package, declare the  require ED copper foil, rolled copper foil, low-profile, or HVLP—pls don’t leave it to fabrication defaults.
  2. Define Foil Thickness for Each Layer: For multi layer boards (including rigid PCBs, rigid-flex, and HDI), a copper weights for every layer—signal, power, ground, and shielding.
  3. Use Correct Trace Widths: Reference manufacturing capabilities and safety standards; we can use thicker traces for heavier currents with thicker copper foil.
  4. Account for Plating/Etching Factors: After copper plating and etching, the thickness of the copper foil maybe change a bit. Account for these changes in customer’s DFM (Design for Manufacturer) review.
  5. Specify Surface Treatments: Particularly for high-frequency PCBs or environments with high humidity, or even passivation or extra surface treatment.
  6. Consider Mechanical Stress: The PCB might bend or flex (even once during installation), we can use rolled annealed copper, or to specify a minimum peel strength.
  7. Collaborate with Fabricators: Discuss stackup and foil choices in early stage to avoid unexpected cost increases.

Applications of Copper Foil in Printed Circuit Boards

Copper foil is used in an astonishing array of applications, far beyond simple electronics:

  • Consumer Electronics: Phones, tablets, TVs, game consoles rely on standard and thin low-profile copper foils for logic and signal.
  • Automotive Electronics: Dashboards, power converters, control modules belong to heavy copper, can handle tough, high-current environments.
  • Industrial Control: Heavy machine often uses pcb copper foils and thick copper for relays, outputs, also robust power delivery.
  • Battery Management: In lithium-ion cells, ultra-thin, high-purity copper foil forms the anode’s conductive backing.
  • Aerospace and Medical: Demanding temperature and reliability standards by using rolled and double-treated copper foil.
  • 5G, IoT and High-Speed: Mini and high-frequency boards often require ultra-smooth VLP or HVLP copper foil, for signal clarity.
  • Antistatic/Electromagnetic Shielding: Copper foil used as shielding tape or planes to block EMI, also provide controlled discharge paths.

Common Challenges With PCB Copper Foils

Even with precise production, PCB copper foils have some challenges:

Delamination and Adhesion Issues

When copper don’t properly bond to the substrate—due to surface contamination, insufficient passivation, or incorrect lamination—delamination usually occurs under mechanical, thermal, or humidity stress.

Oxidation and Corrosion

Copper is highly reactive. Without proper storage or protective coatings, foil will oxidize, increasing resistance, reducing solderability, and also jeopardizing long-term reliability.

Etching and Patterning Challenges

With finer features and thinner copper, the window for error is narrow. Over-etching can undercut traces, while under-etching leaves shorts. The etching process is controlled tightly for timing, chemistry, and agitation.

Warping and Shrinkage

When using different types of copper foil, in various pcb materials (like resin, impregnated paper, quartz or alkali-free glass cloth), the thermal expansion and shrinkage during pcb production will cause warping or unevenness, especially in multi layer printed circuit boards, when we switching between standard copper and thicker copper foil. This can lead to misalignment during assembly, it will cause cracks during reflow soldering.

Controlling Manufacturing Defects

Some defects common to copper foil in pcb circuits include:

  • Pinholes and Tears: Ultra-thin copper foil or poorly handled metal foil, they can develop microscopic holes, lead to open circuits or susceptibility to corrosion.
  • Surface Contamination: Residual oils, chemicals, or dust from the manufacturing process ,this can inhibit soldering or bonding, reduce yield.
  • Variable Peel Strength: Differences in surface treatment, copper ions density, or foil thickness, these can lead to parts of the pcb copper foils delaminating under mechanical or soldering stress.

Future Trends and Innovations in PCB Copper Foil

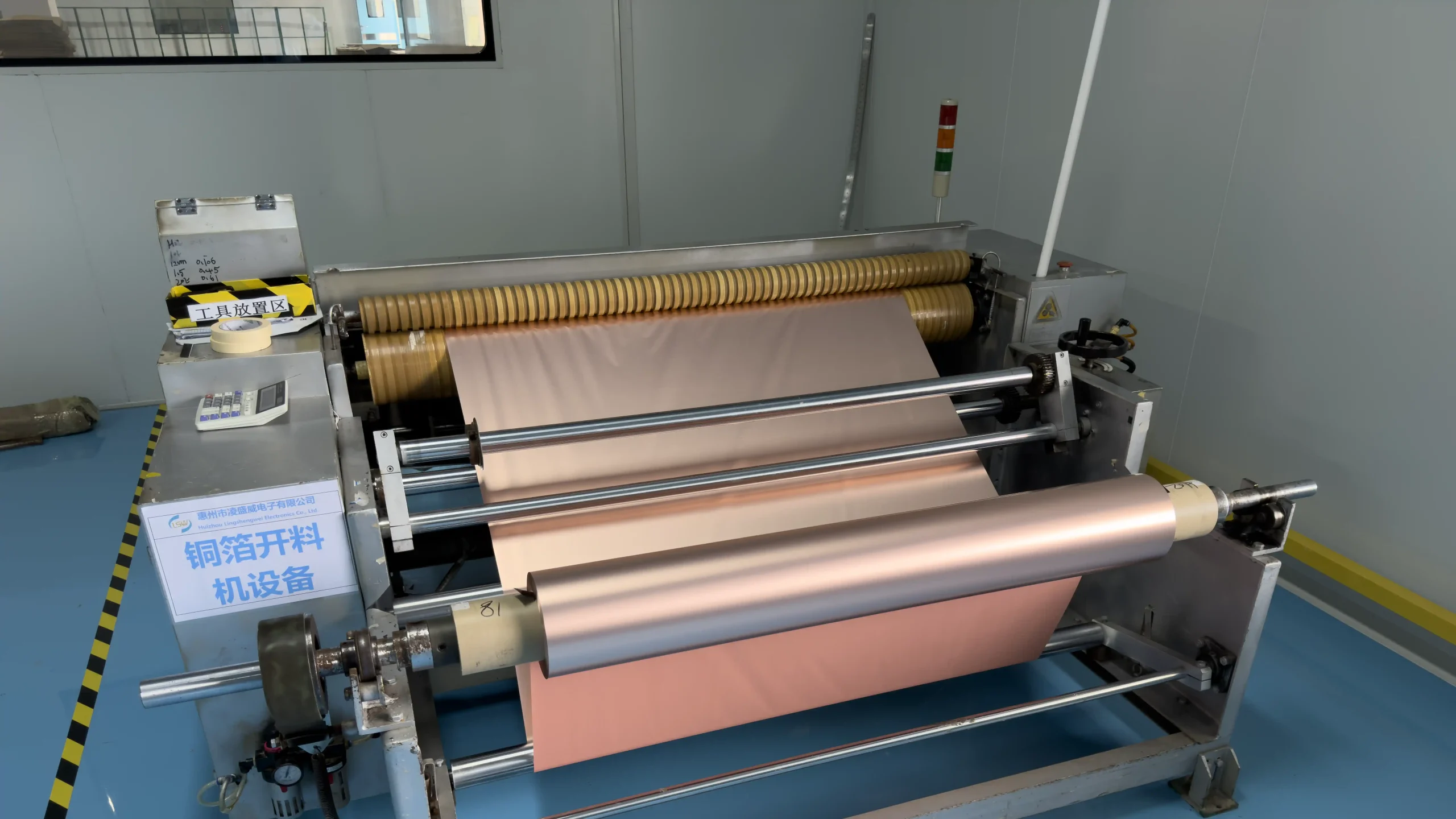

pcb-copper-foil​

The landscape of copper foil in pcb is rapidly evolving. Let’s glance at where the field is heading—innovation that will shape the next decade of printed circuit design and pcb manufacturing.

Ultra-Thin and Custom Foils

  • Ultra-thin copper (<8μm) manufactured with advanced rolling and deposition techniques is enabling finer lines, micro vias, and innovations in high-density interconnects.
  • Low-profile copper (VLP, HVLP) and even nano-textured foils are minimizing signal losses in high-frequency and high-speed designs, making them essential for 5G, radar, and next-gen automotive radar PCBs.

Green Manufacturing and Sustainability

  • More recycled copper and closed-loop water/chemical systems are being adopted by major copper foil plants to minimize environmental impact.
  • Eco-friendly surface treatments and lead-free process will become must-haves for compliance in global markets.

Multipurpose and Hybrid Stackups

  • Hybrid stackups use a mix of rolled annealed copper foils, thick copper, ED copper foil, and deposition copper foil, they will help designers custom-tailor every board layer for current, signal, or thermal needs.
  • Increase thedem and for flexible, foldeable electronics and high-reliability, automotive-grade pcb is driving the copper foil industry to focus on peel strength, ductility, and anti-corrosion properties.

Integration with Advanced Technologies

  • The rise of embedded components, 3D magnetic sensors, in-board antennas, and other functional circuit elements requires copper foil products that are extremely uniform, ultra-thin, and tightly specified for dielectric and mechanical properties.
  • Collaborations between copper foil manufacturers and advanced substrate suppliers are giving birth to new generations of circuit board materials—and blend the ceramics, resins, copper foils—for superior performance.

Conclusion: The Importance of Copper Foil in PCB Technology

In conclusion, copper foil is a thin yet powerful material at the core of every printed circuit board. From carrying current and signals in the world’s smartphones to delivering power in automotive hybrid control systems, the role of copper foil in pcb design and manufacturing cannot be overstated.

The many different types of pcb copper foil—whether electrodeposited copper foil for standard applications, rolled annealed copper for flexibility, or hybrid and ultra-low-profile variants for the latest high-speed needs—make it possible to balance electrical performance, mechanical strength, manufacturability, and cost.

Whether the design needs call for thicker copper foil for high-current power boards, ultra-thin low-profile copper for tiny IoT devices, or multi-material stackups for automotive electronics, the right choices and specification of copper foil is critical for successful pcb production and long-term product reliability.

Remember:

  • Always collaborate early with ther fabricator on foil type, thickness of the copper foil, and treatment.
  • Leverage IPC standards (IPC-A-600G, IPC-4562)it can guide our purchasing and design documentation.
  • Never underestimate the importance of surface treatment and quality assurance—A small changes at the foil level can also create huge downstream impacts in circuit board reliability.

Copper foil enables the rapidly development of technology. As printed circuit and pcb manufacturing trends advance, expect copper foil suppliers to innovate in sustainability, precision, and performance, further pushing the boundaries of a possible in electronics.

Frequently Asked Questions (FAQs) About Copper Foil in PCB

Q: Why are there different types of copper foil for printed circuit boards?

A: Each application has unique needs—rigid boards prefer standard or thick copper for reliability. Flex or high-frequency boards need smoother, thinner, and more ductile foils for flexibility and minimal signal loss.

Q: How does copper foil thickness impact pcb design?

A: Thicker copper foil allows for greater current capacity and lower resistance, but may reduce the ability to produce fine features and increase pcb warping risk. Always use calculators and reference tables during customer’s pcb design.

Q: What is electrodeposited copper foil used for?

A: ED copper foil is predominantly used for rigid boards, multi-layer stack ups, and also cost-sensitive, high-volume products. Its production process provides series properties at a large scale.

Q: Can I mix different foil types in a single PCB?

A: Yes, especially in complex multi layer or hybrid stack ups. For example, a board maybe have thicker copper for power and rolled annealed copper for flexible signal areas.

Q: How do environmental considerations affect copper foil selection?

A: For harsh environments (humidity, vibration, or temperature swings), always specify treated, high-peel-strength, and oxidation-resistant foils. In green manufacturing goals, about recycled content or eco-friendly processes.
