What is The Standard PCB Thickness?

Introduction

The pcb thickness of a printed circuit board (PCB) is one of the most fundamental yet important specifications in electronic products.  Whether you are build a two-layer PCB for a DIY project or a complex multi-layer PCB for advance industrial application, the thickness of the printed circuit board will greatly determine the performance, cost and stability of electronic products.

Understand the thickness of a PCB and be able to select the appropriate thickness for your application is an important aspect of PCB design and engineer.  In this comprehensive article, we will explore standard PCB thickness, discuss common PCB thickness options, cover the factor  that affect the overall thickness, and help you confidently choose the appropriate PCB thickness for your next project.

By the end of this guide, you’ll be able to:

1. Explain what PCB thickness refer to and why it matter.
2. Identify standard thicknesses and where each is used.
3. Understand factor affecting PCB thickness.
4. Apply best practice for selecting the right thickness for your application.

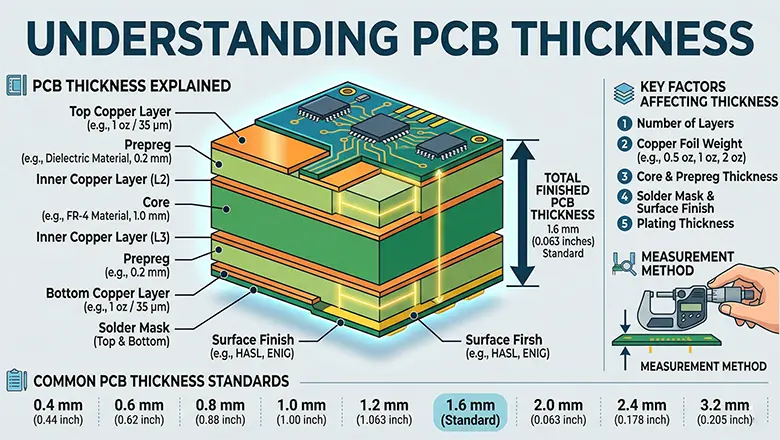

Basic of PCB Construction and What Thickness Refer To

The thickness of a printed circuit board refer to the overall distant from one surface of the PCB to the other, include all copper, substrate (core), prepreg, and protective layers. This overall board thickness is not just one specification, but a sum of several component:

• Substrate Thickness: The core FR-4 or other base material that gives your board structure.
• Copper Thickness: The thickness of each copper layer measurein ounce per square foot or microns (prevalent values are 0.5 oz, 1 oz, 2 oz; 1 oz ≈ 35μm).
• Prepreg Thickness: Insulate and bonds the layers, its thickness depends on the layer count, material, and electrical design needs.
• Solder Mask and Surface Finish: Add a thin protect layer, though its contribute to the overall thickness is small.

Understand PCB thickness down to these component is vital, as the thickness of the copper or prepreg is just as important as the laminate core in determining the overall thickness.

What is the Standard PCB Thickness?

Let’s explore the standard PCB thickness and understand why this figure is so prevalent in the electronic industry.

The global standard thickness of a PCB is 1.6mm.  This standard thickness is suitable for most edge connector, socket and mount frame, and is supported by the world’s major PCB manufacture equipment. Most basic circuit boards choose this thickness.

1. Standard Thickness of a 2L PCB: 1.6 mm is most prevalent, but 1.0 mm and 2.0 mm are also widely available.
2. For Multilayer PCB: 1.6 mm is standard for 4L PCB and 6-layer PCB, but thicknessof boards (2.0 mm, 2.4 mm) can be used for heavy copper or high-power project.
3. In Flexible PCB: Ultra-thin stack-up like 0.5 mm or 0.8 mm are prevalent.

Here’s a practical overview:

Common PCB Thickness Option and Where to Use Them

When to Use Different PCB Thicknesses

There is no “one-size-fit-all.”    The board thickness depends on the application, number of layers, and environment requirement:

• 0.8–1.0 mm: Space-constrained design (smart card, some IoT).
• 1.2–1.6 mm: Standard consumer product, test circuits, 2L, 4L PCB.
• 2.0 mm+: Power electronic, automotive, and PCB with thick copper layers.
• >3.0 mm: Metal-core, high-power AC applications, custom industrial board.
• Sub-1.0 mm: FPC, wearable tech, foldable device internal.

Choosing the Appropriate PCB Thickness for prevalent Application

• Consumer Electronic: 1.6 mm standard thickness is best for most product.
• Automotive/Energy: Thicker PCB, heavy copper; often 2 mm or more.
• Flexible PCB: Thin, 0.2 to 0.5 mm, with polyimide substrate.

What Affect the Overall Thickness of the PCB?

Several key detail affect PCB thickness must be weight to achieve the right overall thickness of the PCB.These include:

Number of Layers:

• Each signal or power plane layer add more substrate and copper, increase the total PCB thickness.  Multilayer PCB (e.g., 4L, 6L, or even 12L+) require careful balance to maintain a manageable board thickness for mount and assembly.

Copper Thickness:

• Copper thickness is one of the most important variable.
• The standard copper thickness is 1 oz/ft² (≈35μm), but high-power circuit may use 2 oz or more, require thicker prepreg and core, impact overall board thickness.  Thicker copper layers add to the mechanical strength and current-handle capacity but also increase manufacture complexity and cost.

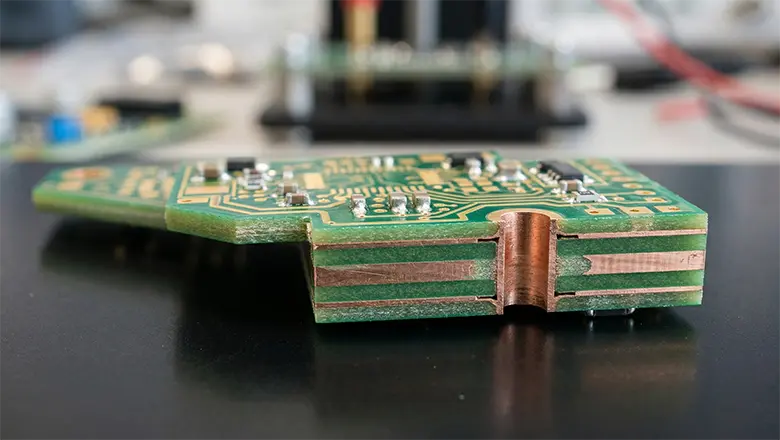

Prepreg and Dielectric Thickness:

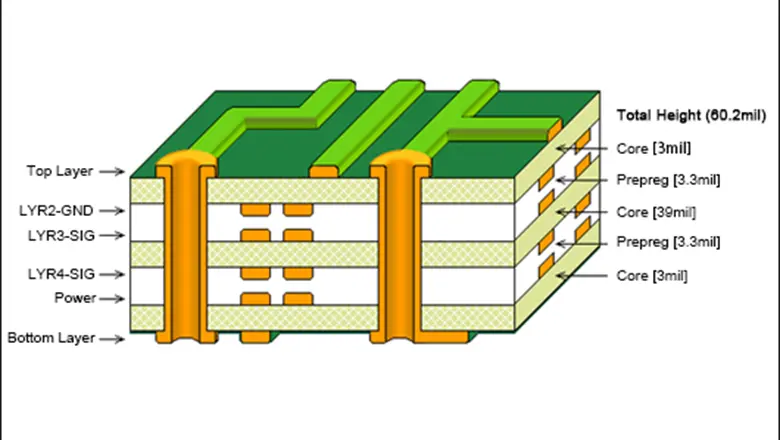

• The dielectric thickness between layer—created by the prepreg—has a direct impact on the overall thickness of the PCB.  Prepreg thickness is selected based on electrical requirement  like impedance control, but thicker or multiple prepreg sheet will significantly affect PCB thickness.

Core Substrate Thickness:

• The baseline structure of any printed circuit board is determine by the substrate thickness, typically made from FR-4 board material.  Variation in substrate thickness allow for strength upgrades or miniaturization in thin PCB.

Surface Soldermask and Finish:

• While these layer only add a fraction of a millimeter, their uniformity is essential for manufacturability and protection of PCB copper thickness.

Board Size, Mechanical and Assembly Constraint:

• Large PCB may need to be thicker for rigidity, while compact PCB in small device require a thinner stackup for proper fit.
• Connector and socket interface are usually design  for a standard thickness, commonly 1.6 mm.

Heat Management Requirements:

• In power electronic or LED, thicker copper and sometimes metal-core PCB are specified for enhanced thermal conductivity—directly impact the PCB thickness value.

How to Choose the Right Thickness for Your PCB Board

Choose the right PCB thickness is important for ensure your design function correctly, fit its enclosure, and can be manufacture  reliable. Here’s a practical approach:

Key Step in Select the Right PCB Thickness

Define Your  Application Needs:

• Will the PCB be subject to mechanical stress, flex, or high temperature?
• Does your design require high current, high speed, or high density?
• Are you design a 2L , 4L PCB, or a complex multilayer PCB?

Check for Mechanical and Electrical Compatibility:

• Confirm enclosure, connector, and mount hardware are compatible with the board thickness.
• Use PCB design software to validate if the chosen board thickness accommodates all mechanical constraint.

Consider Electrical Design Factor:

• High-frequency or impedance-control PCB might mandate precise dielectric thickness between layer.
• Select copper thicknesses according to the current each trace or plane must handle—remember, thicker copper layer impact the overall thickness.

Use Standard PCB Thickness Values Whenever Possible:

• Standard PCB thicknesses such as 1.6 mm are widely support, offer the lowest manufacture cost, and the greatest design flexibility.
• For special case, work with your PCB fabrication partner to identify any minimum or maximum thickness constraint.

Assess Heat Management Needs:

• Application where the PCB carry significant power may need thicker board, thicker copper, or  metal-core substrate.

Factor in PCB Thickness Tolerance:

• Realize that all PCB have a manufacture tolerance, typically ±10% for standard build. For a standard 1.6 mm PCB, the final board thickness might be between 1.41 mm and 1.73 mm.Choose the appropriate PCB thickness is crucial for ensuring your design function correctly, fit its enclosure, and can be manufactur reliably.

Common Mistakes to Avoid

1. Over-specify thickness: Extra thickness can complicate assembly or cause fit problem in socket/enclosure.
2. Ignore copper thickness: Only specify standard thickness, but ignore PCB copper thickness in high-power application, may lead to overheat or reliability fault.
3. Not consider the full stack-up: Always account for soldermask, finish, and all layer on the PCB when targeting a precise thickness.

PCB Thickness Tolerance and PCB Manufacture Consideration

Why PCB Thickness Tolerance Important

PCB thickness tolerance refer to the allowable deviation from your specified thickness. For example, with a target of 1.6 mm, a 10% tolerance means acceptable final board thicknesses could range from about 1.41 mm to 1.73 mm. This tolerance is a function of:

• Total layer count and materials
• Precision in the PCB lamination process
• Manufacturer’s process capability

Best Practice for PCB Manufacture and Tolerance

• For critical mechanical fit: Always specify the required tolerance in your PCB fabrication drawing.
• Communicate with your manufacturer: Ask about their standard thickness option and default tolerance.
• For advance and high-reliability board: Use X-ray inspection, cross-section, and impedance test coupon to confirm stack-up and layer thickness.

Examples: How PCB Thickness Affect Design and Performance

Consumer Product Example: Standard 2L PCB

A game controller use a standard 2L PCB with a thickness of 1.6 mm, standard copper (1 oz/ft²). This provide the right thickness for ruggedness and fit standard battery contact and button array without issue.

High-Power Example: Power Supply Board

A power supply circuit—carry up to 10A—specify 2 oz copper layer for main power trace, increase the total PCB thickness to 2.0 mm to ensure adequate copper and sufficient thermal mass. Use less would risk trace overheat and board warp.

High-Density/HDI Example: Mobile Phone Mainboard

A smartphone mainboard employ a 10L stack-up within a total thickness of 1.12 mm.  The board use ultra-thin prepreg and core layer to keep the assembly slim, while HDI microvia preserve density and signal performance.

Summary Table: PCB Thicknesses, Layer, and Application

Conclusion: Select the Appropriate PCB Thickness for Your Project

In summary, understand PCB thickness is vital for every PCB designer. The standard PCB thickness of 1.6 mm is a time-test baseline for most printed circuit board design—but select the appropriate PCB thickness means evaluate the mechanical, electrical, and thermal needs of each application.

1. Always choose the right thickness for the intended use, reference standard PCB thicknesses where possible.
2. Consider all layer on the PCB, copper thickness, dielectric thickness between layer, and the impact of prepreg and finish.
3. Take into account manufacture, cost, and board assembly requirement.
4. Collaborate with your manufacture early and leverage their expert in stack-up choices and tolerance.

With these insight and guideline, you’ll be able to confidently select the best PCB board thickness for any project—ensure reliability, manufacture, and performance.

Additional Advanced FAQs about PCB Thickness

Q: How does depanelization affect thickness spec?

A: Depanelizate (the process of separate individual board from a manufacturpanel) must be match to your board’s thickness and material composition. For standard PCB thickness (1.6 mm), most fab shop use score or route machine perfectly tuned for this dimension. Ultra-thin PCB (<0.8 mm) are more susceptible to edge chip or flex during depanelizate, while thick or heavy copper boards (>2.4 mm) may require slower, reinforce tool to avoid microcrack or mechanical damage at panel edge. Always inform your manufacturer if your design depart from standard thickness so they can adjust their process to avoid reject.

Q: Can I change PCB thickness mid-design if I need to fit a tighter enclosure?

A: Yes, but changing the PCB thickness from the standard 1.6 mm to a custom value (e.g., 1.0 mm or 2.0 mm) affects not just the mechanical fit—it can impact PCB stack-up, impedance, minimum via annulus, drill-to-copper constraints, loss/attenuation in high-speed lines, and even the heat profile during assembly. Notify your plastic/mechanical design team and PCB manufacturer early if you decide to change thickness, and always rerun your layout and simulation check after any change.

Q: What inspection method ensure stackup and thickness accuracy?

A: Modern PCB fab use X-ray inspection to verify internal stack-up, layer registration, and even hidden features in buried/blind via design. AOI check the board externally, while micrometer and laser thickness gauge are used to confirm overall thickness. First article inspection often include destructive test coupon (cross-section board) to check dielectric and copper layer thickness for critical build.

Q: How does thickness tolerance relate to HDI or controll impedance design?

A: In high-speed or HDI PCB, even small layer thickness mistake can throw off critical impedance target or microvia drilling accuracy. Specify tighter-than-standard tolerance if your design have margin budget for impedance (e.g., ±0.08 mm or better, rather than ±10%). Always validate with impedance coupon and s-parameter test structure.

Q: Does increase board thickness always help with durability?

A: Generally, yes—but only up to a point. Overly thick boards can become difficult or costly to fabricate, prone to internal stress (causing delamination or warp), or hard to process during SMT and through-hole assembly. Always aim for the thinnest, most robust stackup that meets both mechanical and electrical needs.

Q: Is there a standard for minimum thickness on flexible PCB?

A: While flexible PCB can be as thin as 0.1 mm in certain case, typical practical minimum range from 0.2 mm to 0.5 mm to maintain trace reliability and processability during assembly and repeated flex cycle.
