What is Copper Clad Laminate

Introduction: Why Copper Clad Laminate is Used in PCB

In PCB manufacturing’s world, the lamination’s choice have a direct and significant impact on PCB boards and its performance. Copper clad laminate, normal abbreviated to CCL, is a composite material consisting of a dielectric substrate and a thin layer of copper it has been carefully laminated onto one or other sides. This process creates a copper clad pcb or simply a copper clad board, it can serves as the base material for pcbs in every electronic device.

Why is copper clad laminate used in PCB?

• Electrical Pathways: The copper layer not only allow the formation of complex conductive paths but also after PCB fabrication process such as etching and plating.
• Mechanical Support: The laminate gives rigidity or flexibility (in flexible copper clad laminate), it impact the final use and durability.
• Insulation: The core material provides insulation between the copper layers, it is critical for multi-layered PCBs and high-frequency board
• Versatility: Special copper clad laminates are designed for unique requirements—high temperature, chemical resistance, low dielectric constant, and so on.

Basic Structure of CCL: From Laminate to PCB Board

Let’s break down the basic structure of CCL to understand what makes it the default material for pcb production.

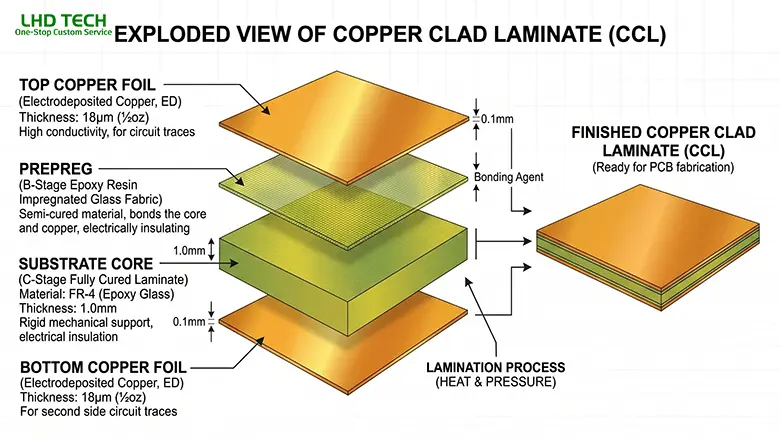

The Anatomy of a Copper Clad Laminate

• Copper foil: A sheet of copper,include normally 18–140μm thickness (copper foil is a thin layer of copper).
• Substrate: The non-conductive base material for pcbs, it made fiberglass-reinforced epoxy (FR-4), composite epoxy material (CEM-1, CEM-3),olyimide, paper, or ceramic etc.
• Adhesive (optional): Bonds the copper foil to the substrate in some laminate types.
• Multiple copper layers: For multilayer PCBs, CCL is used in bothwith prepreg to stack several copper-dielectric layers.

Cross-section Table of Typical CCL:

Did you know?

• Copper foil bonded to one side = single-sided copper clad laminat.
• Copper foil on both sides = double-sided copper clad laminat.

The laminating copper foil on the core delivers a very stable, reliable—ccl provides excellent dielectric, also mechanical strength.

Types of CCL: Single-Sided, Double-Sided, and Flexible Copper Clad Laminate

Choosing the type of ccl is foundational in PCB fabrication process. The type of pcb you need dictates your choice.

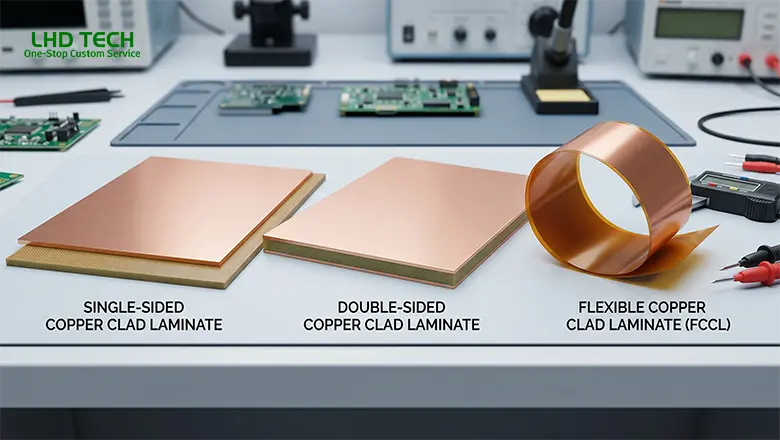

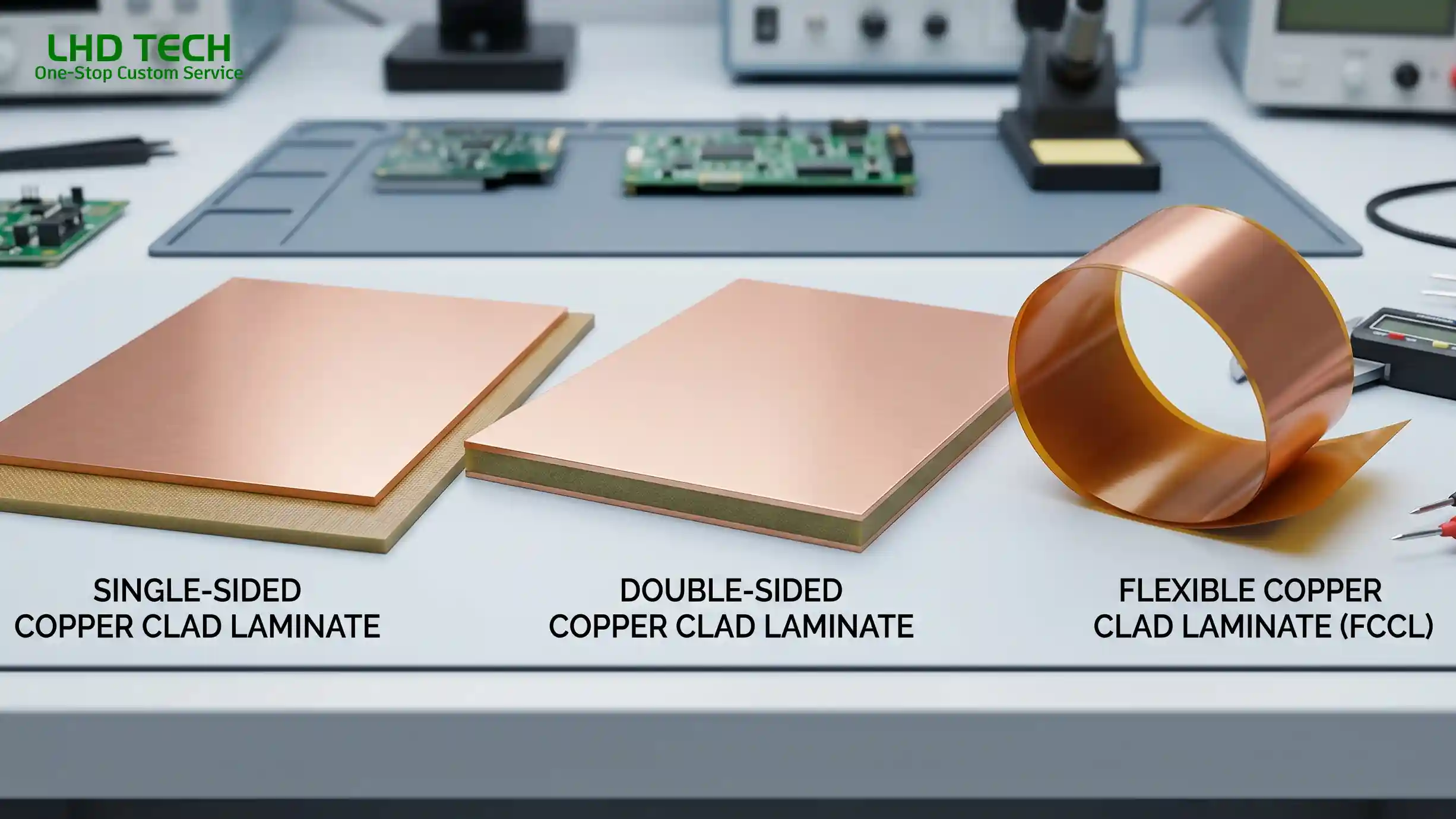

Major Types of Copper Clad Laminate

1. Single-sided copper clad laminate
   • Copper layer on only side.
   • It is used on basic, a cost-sensitive board (such as, calculators, toys, power supplies).
2. Double-sided copper clad laminate
   • Layer of copper foil on 2 sides of the substrate.
   • Basic for more complex PCBs, it allow signal layers, ground, and power planes in compact forms.
3. Flexible copper clad laminate(FCCL)
   • Polyimide or polyester composite material with copper foil to a flexible substrate.
   • Enables the creation of bendable, foldable, or wearable electronic devices.

More Specialized Copper Clad Laminates

• High-frequency copper clad laminate: Use the PTFE, ceramic, or low-Dk/Df resin syste for RF and microwave PCB.
• Metal-backed CCL: Alu or cu core for thermal manager and mechanical (e.g., LED lighting, power modules).
• Thick copper CCL: On high-power or automotive applications, provides good current capacity and heat transfer.

Applications of Copper Clad Laminates in PCBs

Copper clad laminates is the base material of pcb, It is used across diverse industries, serves as the heart of almost every printed circuit board .

Key Applications of Copper Clad Laminates

• Consumer Electronics: Smart phon, TVs, lapto, household appliances.
• Automotive: Engine control, sensors, infotainment (using copper clad for thermal and vibration endurance).
• Industrial Controls: Power suppy, automative systems, high-current control (copper clad PCB with metal backing and thick copper).
• Medical Devices: Portable diagnostic and therapeutic equipment—need chemical resistance of the CCL and high signal fidelity.
• RF and Microwave: Routers, satellites, communication modules—using specialized copper clad laminates for low loss and high frequency.
• Wearables/Foldable Tech: Smart a watches, medical sensors—in order to use a flexible copper clad laminates.

Properties of Copper Clad Laminates: Electrical, Mechanical, and Chemical

Grasping the properties of copper clad laminates is very good for PCB assembly, production, and customer’s reliability.

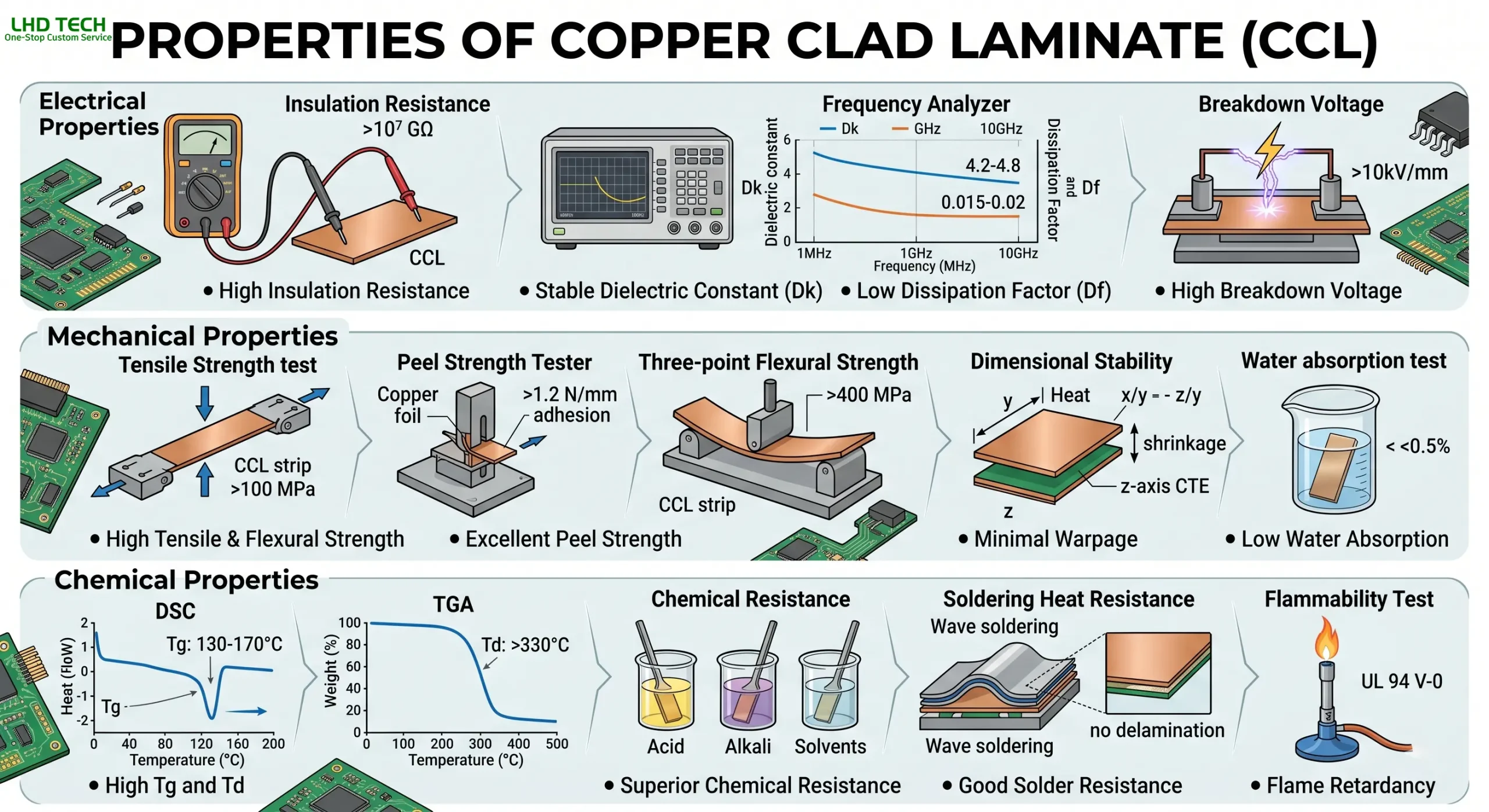

Key Properties of Copper Clad

Electrical Properties

• Dielectric constant (Dk): Lower Dk (3.7–4.5 for FR-4)it not only result in better signal transmission.
• Loss tangent (Df): Low Df is basics for minimal signal loss in high-speed, high-frequency designs.
• Volume and surface resistance: It can prevents short-circuiting between traces and layers.

Mechanical Properties

• Mechanical stability of the CCL: Rigidity for standard PCBs, flexibility for FCCL.
• Peel strength: Stronger adhesive between copper layer and substrate.
• CTE (Coefficient of Thermal Expansion): Affect the heat resistance; match CTE prevents warping.
• Thermal stability of the CCL: Critical for lead-free reflow processes and high-power devices.
• Thickness of the copper: Ranges from 0.5 oz (18 μm) to 3 oz (105 μm) or maybe the power boards is higher.

Chemical Resistance

• Chemical resistance of the CCL: Protects against corrosion and moisture during PCB manufacturing and operation.

Other Important Properties

Tip: When selecting copper-clad laminates, it is important to review relevant test results or data sheets, to better understand the performance characteristics. We will provide specifications tailored to customer’s PCB type and performance requirements.

Manufacturing Process of Copper Clad Laminate

To understand the manufacturing process of copper clad laminate, it offers insight  why this composite material is such a high price in the PCB industry. The following is a break down of the standard process of copper clad laminate production.

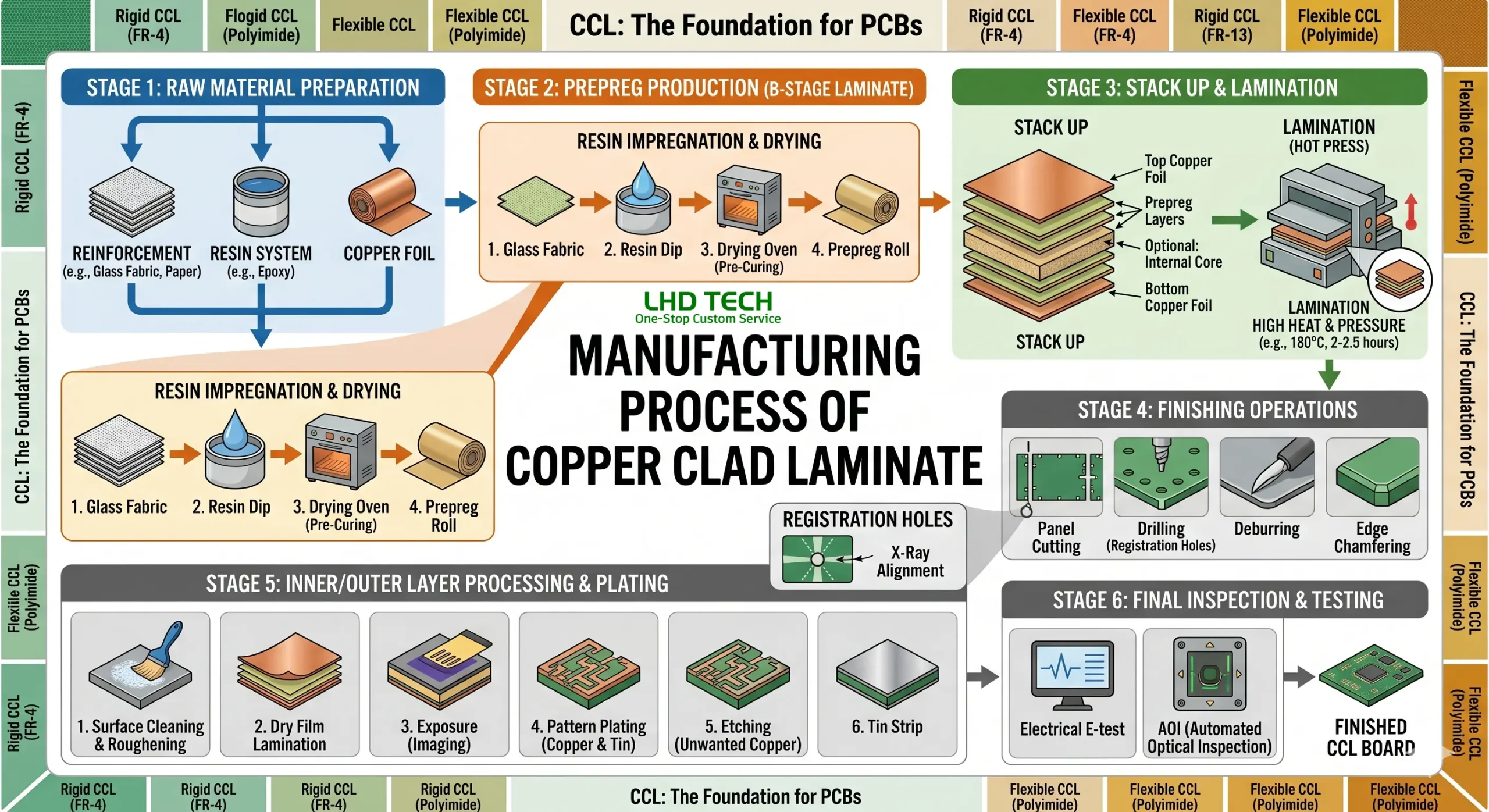

Step-by-Step Process of Copper Clad Laminate

Substrate Preparation

• The substrate (such as fiberglass cloth for FR-4 or special polymer films for flexible copper clad laminate) is was cleaned and pre-treated.

Resin Impregnation

• The substrate is soaked in our formulated resin (epoxy, polyimide, PTFE, etc.) in order to improve the electrical and thermal stability of the CCL.
• Excess resin is removed,in order to ensure the consistent laminate thickness.

Drying (‘B-staging’)

• The impregnated substrate is partially cured so that it holds together without being fully hardened.

Laminating a Layer of Copper

• One or two sheets of high-purity copper foil are laminated onto the resin-soaked substrate under extreme heat and pressure, to bond the copper foil to the substrate.

Hot Pressing

• When we place the components into the lamination, the resin cures & bonds the copper to the core material stable copper-clad laminate.

Cooling and Cutting

• The panel is cooled under the conditions, in order to prevent warp age, then cut to standard or custom sizes.

Surface Treatment of Copper Foil

• Copper surfaces is roughened, oxidized, or chemically treated, in order to improve peel strength and prevent future delamination or corrosion.

Quality Testing

• It’s better to inspect the final copper clad laminate (CCL) thickness, mechanical strength, insulation resistance, surface defects, and required properties of the copper clad laminate.

Table: Key Stages in Copper Clad Laminate Manufacturing

Selecting Copper Clad Laminate: What to Consider When Choosing the Right CCL

To choose the right CCL, it can ensure our PCB boards to meet the performance requirements, manufacturing standards, and cost objectives. Here is to consider when selecting copper clad laminate:

Factors to Consider When Selecting Copper Clad Laminate

Type of PCB/Application

• Prototype PCBs: Standard FR-4 is also suitable.
• High-frequency PCBs: Choose low-Dk & Df materials such as PTFE-based, a specialty CCLs.
• Power electronics: Use the thick copper, metal-backed laminates for heat dissipation.
• Flexible designs: Polyimide-based FCCL for dynamic bending, wearable, or space-constrained devices.

Thickness of the Copper

• Standard is 1 oz /ft², thicker copper clad board (e.g., 2–4 oz) may be needed for high-current applications.

Properties of Copper Clad Laminate

• Glass transition temperature (Tg), CTE, peel strength, and chemical resistance—all affect PCB manufacturing and final end-use.

Cost and Supply Chain

• Consider CCL price, standard sizes, panel options, especially reliability of the leading PCB or laminate factory.

Environmental & Regulatory Standards

• Ensure RoHS/REACH compliance, UL ratings, or other field certifications.

Standards for CCL: Quality and Certification

Standards for CCL guarantee consistency, safety, and interchangeability in the whole PCB field. To Understand and adhering to these standards is very important for professional PCB manufacturing.

Key International Standards for Copper Clad Laminates

• IPC-4101: This standard primarily defines the physical, thermal, and electrical properties required for different grades of copper-clad laminates used in PCB manufacturing..
• IPC-4204: Governs flexible copper clad laminate, it set quality requirements for properties unique to FCCL.
• UL-94V-0: Defines fire resistance of materials, an essential safety requirement in consumer and automotive products.
• RoHS/REACH: Certification is important for environmentally-friendly, lead-free PCBs— in global markets.

Professional Tips for PCB Fabrication Using CCL

1. Always inspect the laminate when we start PCB produce—check for scratches, war page, and the copper thickness.
2. Select the most appropriate type of copper clad laminate for your process: Single-sided for simple control boards; double-sided or multilayer CCL for advanced board
3. In PCB assembly, ensure the copper surface is free from oxidation. Clean it if necessary in order to ensure the strong solder joints, also prevent future reliability issues.
4. For flexible designs, use FCCL with high peel strength and compatible adhesives. Test bend cycles before finalizing your PCB assembly process.
5. If fabricating prototype PCBs, request technical data sheets (TDS) for your laminate in PCBs, then need confirm the copper layer whether matches the design’s requirements.

Tip for Engineers: If you don’t want copper on prototype PCB edges or holes after etching, it can often be traced back to poor quality CCL or inconsistent copper layer thickness. We always work with trustable suppliers.

Frequently Asked Questions on Copper Clad Laminates for PCB

Q: What is the difference between copper clad laminate and a finished PCB?

A: Copper clad laminate is the raw composite material (substrate + copper layer),  the finished PCB is the result of fabricating and assembling the laminate pn a board with etched circuits, drilled holes, and soldered components.

Q: Can I use any type of CCL for high-frequency designs?

A: No. High-frequency or RF PCB usually require copper clad laminates with a low dielectric constant (Dk) ,the loss tangent (Df) to keep signal integrity and performance.

Q: What is the standard thickness of the copper on laminate for PCBs?

A: Typically 1 oz/ft² (35 μm),however a professional PCB applications maybe require more or less depending the design and customer’s requirements.

Q: How important is the chemical resistance of the CCL in harsh environments?

A: Extremely important. For industrial or automotive field, chemical resistance can ensure the material for PCB keep stable and reliable for years.

Conclusion: Understanding Copper Clad Laminate for Superior PCB Boards

Copper clad laminate is not just the industrial material—it is important for PCB manufacturing, it enable the performance, durability, and reliability required in everything from our daily gadgets to space technology. A thorough understanding of copper clad laminate—from basic structure of CCL to our properties, types, and selection criteria—it give engineer an edge in producing a robust, innovative, and cost-effective boards.

Focus on the properties of copper clad, to choos the right CCL for our application, and working with the leading PCB suppliers in PCB industry, you can ensure that the PCB fabrication process results in products , it can meet today’s demanding electrical and mechanical standards.
