Introduction to Resistor Color Codes
Engineers from LHD TECH are here to talk about the most common component in electronic circuit design – resistors. Resistors are almost everywhere: they can control the size of the current, achieve voltage distribution, and precisely adjust every link from the timing circuit to the amplifier bias. To quickly determine the resistance value and error range of a resistor, the internationally recognized resistor color code system is required.
The principle of this system is quite simple: different color rings of various colors are applied to the resistor body – usually four or five rings, and sometimes six rings – with each color corresponding to a number or multiplier. Whether you are a professional engineer, a student or an electronics enthusiast, learning to interpret resistor color codes, such as how to read the classic 4.7k resistor color code, is crucial for understanding circuit diagrams, selecting the right components and troubleshooting. Ok. See you next time.
Understanding the Resistor Color Code System
The resistance color code system is a standardized coding scheme based on color, used to indicate the resistance value, multiple and error of resistors. Each color on the color wheel corresponds to a specific number, thus making the color code an efficient and globally applicable identification method.
Why Use Color Codes on Resistors?
- Space-saving: The surface area of microelectronic components is limited, making it impossible to print digital labels.
- Universal: The color code system is not restricted by language, and engineers all over the world can interpret resistance values.
- Durable: Color ring coatings can withstand moderate heat and mechanical wear, but they need to withstand heat and overload.
The Anatomy of the Resistor Color Code
Common resistors use either a 4-band, 5-band, or even a 6-band color code. Here’s what each band means:
- First two bands (4-band resistor): These are the first two digits of the resistance value.
- Third band (multiplier band): This multiplies the two-digit number by a power of ten.
- Fourth band (tolerance band): Gold or silver, indicating how much the actual resistance may vary from stated value.
- Fifth band (for 1% or 0.1% tolerance): A third digit in precision resistors.
- Sixth band (very rare, temperature coefficient): Used in special applications.
Color Codes Help users to quickly identify resistor values, even on high-density circuit boards.
Color Bands and Decoding the 4.7k Resistor
The 4.7k resistor (or 4.7k ohm resistor) is one of the most standard resistor values. Its color code, following the color coding system, is simple to remember and fundamental to know.

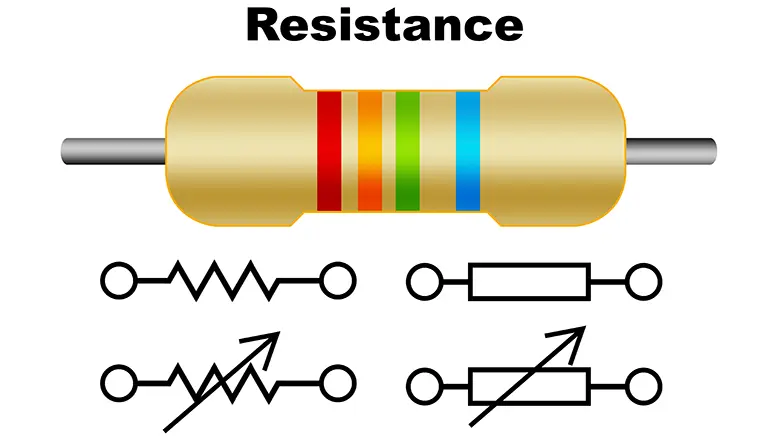

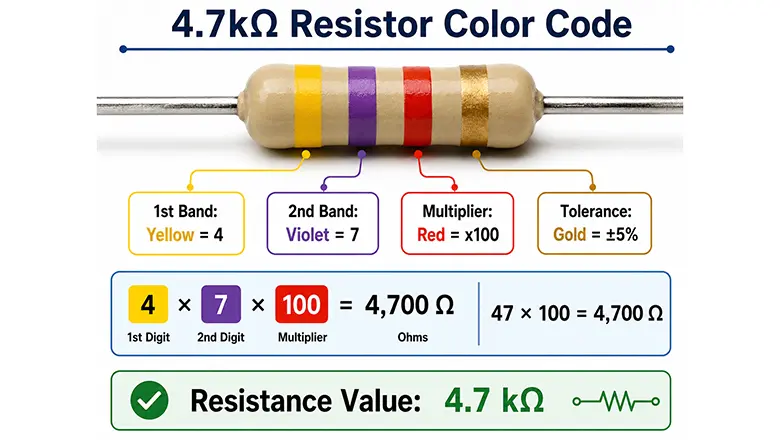

4-Band Resistor Color Code for 4.7k
| Band Position | Color | Corresponds To | Meaning |
| First Band | Yellow | 4 | 1st significant digit |
| Second Band | Violet | 7 | 2nd significant digit |
| Third Band | Red | ×100 (multiplier) | 3rd band multiplies value |
| Fourth Band | Gold | ±5% (tolerance) | Tolerance band |
Thus, yellow-violet-red-gold is the resistor color code for 4-band 4.7k ohm resistor.
Calculation: “47” (from the first two bands) × 100 (third band/multiplier) = 4,700 ohms.
5-Band Resistor Color Code for 4.7k Ohms
| Band Position | Color | Value |
| 1st Band | Yellow | 4 |
| 2nd Band | Violet | 7 |
| 3rd Band | Black | 0 |
| 4th Band | Brown | ×10 (multiplier) |
| 5th Band | Brown | ±1% (tolerance) |
“470” × 10 = 4,700 ohms. Brown as the fifth band means ±1% tolerance for high-precision circuits.
SMD and Numeric Codes for 4.7k Resistors
In SMD (surface mount device) technology, you’ll often see three-digit markings like “472.” Here’s how that SMD code decodes:
- First two digits: “47”
- Third digit: Number of zeros to append (“2” means ×100)
So, 472 = 4,700 ohms.
How to Use the Resistor Color Code to Read 4.7k Ohm and Other Values
Step-by-Step: Read the Color Bands on a Resistor
- Hold the resistor so the gold or silver band (tolerance) is on the right.
- Read the first two bands: These are the first two significant digits of the resistance value.
- Find the third band: This is the multiplier, meaning “how many zeros” to add to your two digits.
- Identify the tolerance band (fourth band in most 4-band resistors).
Understanding 6-Band and Advanced Color Codes
- 6-band resistors add a band for temperature coefficient, useful for high-stability reference circuits.
- The following picture clearly shows each color on the color wheel in the resistance color code system at a glance.
| Color | Digit | Multiplier | Tolerance |
| Black | 0 | 1 | |
| Brown | 1 | 10 | 1% |
| Red | 2 | 100 | 2% |
| Orange | 3 | 1,000 | 0.05% |
| Yellow | 4 | 10,000 | 0.02% |
| Green | 5 | 100,000 | 0.5% |
| Blue | 6 | 1M | 0.25% |
| Violet | 7 | 10M | 0.1% |
| Gray | 8 | 100M | 0.01% |
| White | 9 | 1G | |
| Gold | 0.1 | 5% | |
| Silver | 0.01 | 10% |
This comprehensive guide and resistor color code chart above lets you quickly identify any resistor value, not just the 4.7k ohm resistor, but also values such as 1k, 10k, 100k, 220 ohms, and many more, making it indispensable in any electronics toolkit.
Comprehensive Guide to Tolerance Bands: Precision Matters
Why Tolerance is Vital
The tolerance band is usually the fourth color on a 4-band resistor, and the fifth on 5-band types. It defines how much the actual resistance value can deviate from the nominal value due to unavoidable variations in the manufacturing process. Tolerance is critical in circuit design—for example, a resistor with too wide a tolerance in a timing circuit could throw off your RC oscillator, or a pull-up resistor with loose tolerance could cause logic level errors in a microcontroller input.
Typical Tolerance Values
| Color | Tolerance Value | Typical Use |
| Brown | ±1% | Precision measurement, analog |
| Red | ±2% | Instrumentation |
| Gold | ±5% | Standard general use |
| Silver | ±10% | Less-critical, cost-effective |
The fourth ring is a gold band resistor with an error of ±5%, which is the most commonly used general-purpose resistor. Whether it’s for household appliances or DIY small projects, this is a reliable choice.
How Actual Resistance Affects Circuits
Take a resistor of 4.7 kΩ with an error of ±5% (color band: yellow – purple – red – gold) as an example. If it is used in a voltage divider circuit, its actual resistance value will vary between 4,465 Ω and 4,935 Ω. For most LED current limiting or digital pull-up resistors, this is perfectly acceptable. But for high-end audio gear, analog synthesizers, or metrology, you may need to specify a ±1% (brown band) part.
Quick Tips for Engineers and Hobbyists
- For timing and filtering: Always use tighter tolerance (1% or 2%) for predictable frequency or delay.
- For signal biasing, logic pull-ups/downs, or LED current limiters: ±5% is usually sufficient.
- In low-cost educational kits: ±10% silver band is common, but double-check that the actual resistance stays in a safe range.
Choosing the Right 4.7k Resistor: Selection, Types, and Applications
How to Choose the Right Resistor
Resistor selection is not just about picking up the nearest 4.7 kΩ resistor (color band yellow – purple – red – gold) from the component box. Several details need to be considered
Type of Resistor:
- Carbon Film: Cheap, for basic circuits; color bands easy to read. Not great for high temp or low noise circuits.
- Metal Film: Lower noise, better temperature stability, best for audio/RF/precision analog.
- SMD Resistor: Marked “472,” invaluable for PCBA and SMT lines to save space.
Power Rating: Make sure the resistor can withstand high temperatures. In the signal level circuit, 1/4 W is basically sufficient. If it is powered or motor-driven, 1/2 W or more is required.
Tolerance: According to the circuit requirements, select the appropriate error color band, such as gold, brown or silver.
Voltage Rating: Although the withstand voltage parameter is not marked on the color ring, the general resistance withstand voltage is between 50 V and 250 V. for specific details, please refer to the data sheet.
Where 4.7k Resistors Are Used
See how 4.7k resistors dominate across electronic systems:
- Voltage Divider: Two 4.7Ks strung together are suitable for biasing in combination with a transistor base or analog input.
- Pull-Up & Pull-Down Resistor: There should be I²C and SPI buses on the MCU pins to ensure that the logic levels remain stable.
- Current Limiting: Combine with an LED to protect it from overcurrent—especially in indicator circuits.
- RC Timing Circuit: Sets delay or oscillation in timers (used with capacitors).
- Signal Conditioning: Determine the input impedance of the operational amplifier and apply bias to the analog stage.
- Impedance Matching/Network Termination: On CAN bus and RS232, prevent signal reflection and ensure communication quality.
Comparing 4.7k Ohm Resistor Color Codes Across Technologies
Modern Color Codes in SMD and Through-Hole
- Through-Hole (4-Band): Yellow – purple – red – gold, most frequently used in hand-welded, old-fashioned kits and teaching experiment boards.
- Through-Hole (5-Band): Yellow – purple – black – brown – brown (or ending in gold), commonly seen in precision resistors or military-grade resistors.
- SMD (Surface Mount): “472”—the quick decoder for automated pick-and-place assembly floors worldwide.
Band Codes for Key Resistor Values
| Ohm Resistor Value | 4-Band Color Code | 5-Band Color Code | SMD Marking |
| 470 Ω | Yel-Vio-Brown-Gold | Yel-Vio-Black-Black-Brown | 471 |
| 1 kΩ | Brn-Blk-Red-Gold | Brn-Blk-Black-Brown-Brown | 102 |
| 3.3 kΩ | Org-Org-Red-Gold | Org-Org-Black-Brown-Brown | 332 |
| 4.7 kΩ | Yel-Vio-Red-Gold | Yel-Vio-Black-Brown-Brown | 472 |
| 10 kΩ | Brn-Blk-Org-Gold | Brn-Blk-Black-Red-Brown | 103 |
| 100 kΩ | Brn-Blk-Yel-Gold | Brn-Blk-Black-Orange-Brown | 104 |
Color ring patterns are consistent globally, and the resistor chart shows how the bands map to the actual resistance.

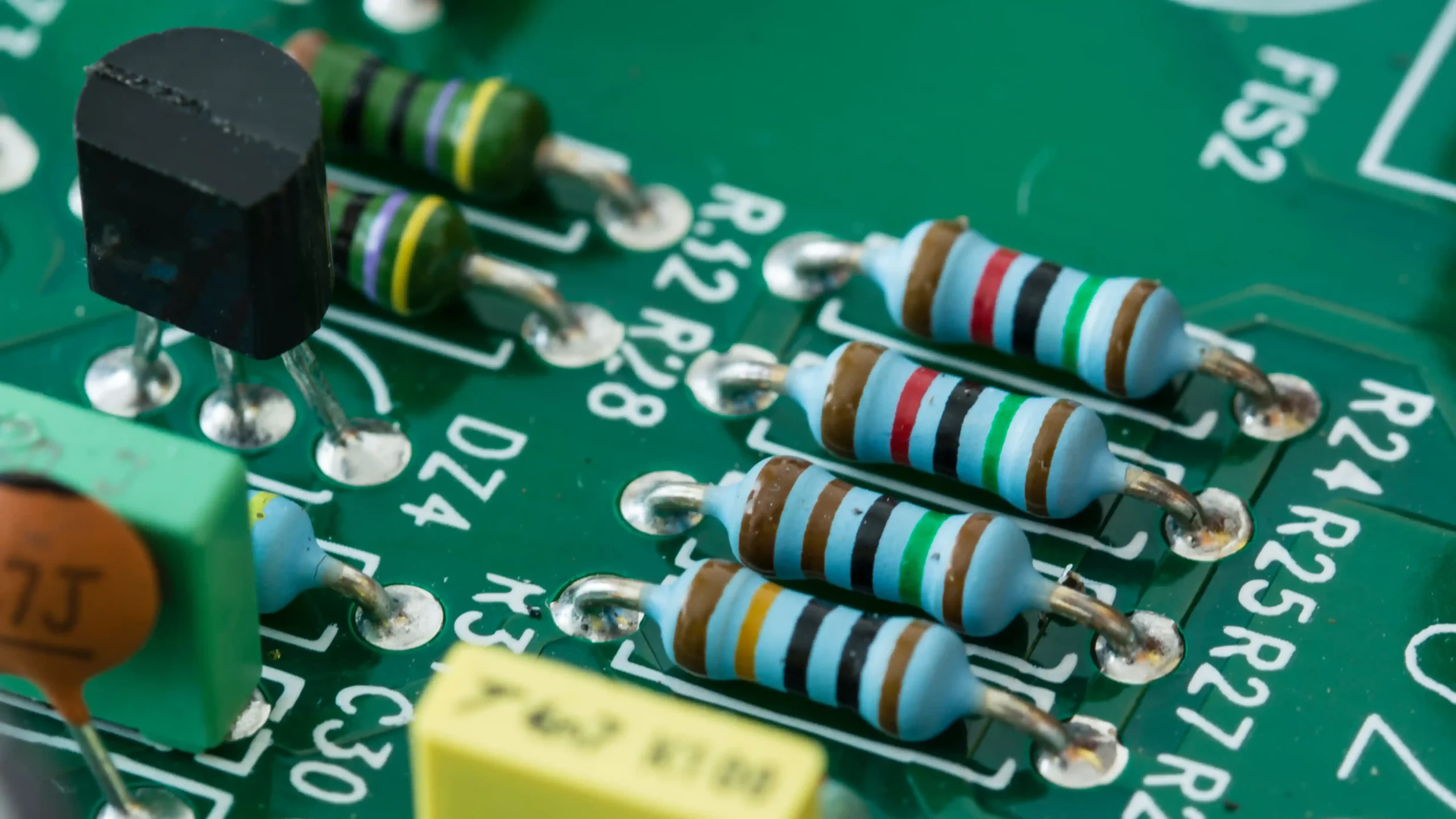

Resistor Value, Bands, and Color Coding in Practice

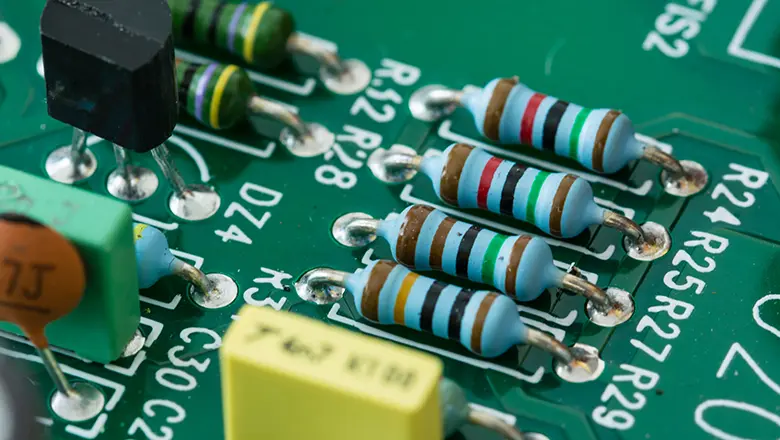

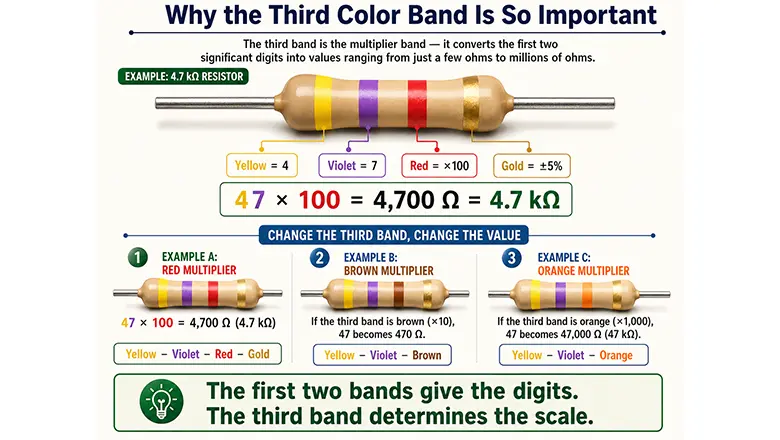

Why the Third Band is Critical
The third band is a multiplier band—it turns the first two significant digits into values ranging from single ohms to millions. For 4.7k resistors, the third band is red (which means ×100).
- If the third band is brown (×10), 47 becomes 470 ohms (yellow-violet-brown).
- If orange (×1000), 47 becomes 47,000 ohms (47k, yellow-violet-orange).
How to Read a Resistance Value
- Hold the resistor so that the gold or silver band (if present) is at the rightmost side.
- Read from the left side (the end with the bands closest to the edge).
- Translate each color to its digit according to the resistor color code chart.
- Multiply total by the third band value.
Tolerance Band’s Real-World Impact
Suppose you install a 4.7k resistor with a gold tolerance band in a bias circuit. The resistor’s value and tolerance mean your bias voltage might shift slightly, but the circuit will work reliably. If you only have 4.7k with a silver band, be aware of a wider potential drift—so only use where precision isn’t critical.
Advanced Tips for Identifying and Reading Resistor Color Bands
Tips for 4-Band Resistor and SMD “472” Decoding
- For 4-band resistors, check both color and position—the band closest to the end is always first.
- “472” SMD: Two significant digits (47), third digit multiplier (2 → ×100).
Handling Faded or Burned Color Bands
- Clean gently with isopropyl alcohol.
- Use a magnifier or phone camera zoom.
- If unreadable, always verify value with a digital multimeter.
Troubleshooting & Common Issues in Reading Resistor Color Codes
Common Mistakes
- Bands read backwards: Gold band is usually to the right.
- Confusing red for orange or brown for black: Double-check under good light.
- Ignoring tolerance: Never overlook the importance of the fourth color band.
Diagnosing Burned or Out-of-Tolerance Resistors
- Use a meter: A 4.7k resistor measuring 10k+ likely suffered thermal or electrical overstress.
- Replace immediately if visual damage is apparent or the reading is outside the tolerance band(for a 4.7k ohm resistor with 5% tolerance, replace if resistance is outside 4,465–4,935Ω).
“Reading Its Color Bands”—A Quick Checklist
- Hold the resistor: Place the tolerance color ring (gold or silver) of the resistor on the right side.
- Read the first two bands: Interpret the colors of the first two rings as the first two significant figures of the resistance value.
- Third band multiplies: Determine the multiplier (to the power of 10) using the color of the third ring.
- Fourth color: The fourth ring always represents tolerance. This value is crucial for ensuring that the resistance can meet the precision design requirements of the circuit.
Real-World Diagnostic Scenario
When repairing an audio preamplifier, when measuring an input pull-down resistor, the meter showed 4580 ohms. Its color bands are yellow – purple – red – gold, which is the 4.7k, ±5% marking for the four bands. 4580 ohms is within the error range (between 4465 and 4935). If it is 5200 ohms, it exceeds 5% and the resistor needs to be replaced.
Frequently Asked Questions: Resistor Codes, Values, Bands, and More
Q: What is the color code for a 4.7k resistor?
A: For four-ring resistors, the color bands are yellow – purple – red – gold. Among them:
- Yellow =4, purple =7 (the first two significant figures)
- Red = Multiplier ×100 → 47×100=4700Ω=4.7kΩ
- Gold = Tolerance ±5%
Q: How do I read a 4.7k SMD resistor?
A: Surface mount resistors are usually marked with three digits, for example, 472:
- The first two “47s” are significant figures
- The third “2” represents the multiplier (×10²=×100).
- Therefore, 47×100=4700Ω=4.7kΩ
Q: How does the color coding system ensure accuracy in electronic circuits?
A: By providing both the value and tolerance on the resistor itself, color codes help ensure that the resistor selection matches the requirements for actual resistance and performance in your circuit design.
Q: Can I use a different tolerance for a 4.7k resistor?
A: The color ring system directly marks the resistance value and tolerance on the resistor body, enabling designers and maintenance personnel to immediately determine whether the component meets the resistance value and performance requirements of the circuit, thereby reducing errors during assembly and troubleshooting.
Q: Are all 4.7k resistors the same?
A: Yes. Tolerance selection depends on the application scenario:
- For key circuits (such as timing, filtering, and precision reference), select resistors with a tolerance of 1% or even 0.1%
- A general circuit (pull-up, current limiting) → 5% (golden ring) is sufficient.
- Low-demand, non-critical parts → 10% (silver ring) is sometimes acceptable, but it is less used in modern design.
Q: How do I calculate the resistor value from its bands?
A: Use the color code chart:
- First two bands = first two digits
- Third band = multiplier
- Fourth band = tolerance value So for yellow-violet-red-gold: 47 × 100 = 4,700Ω, ±5%
Summary, Best Practices, and Final Thoughts
Having understood 4.7k resistor color code, you will be better at designing circuits, repairing boards and finding faults. The 4.7k resistor is particularly commonly used. The four-ring ones are yellow – purple – red – gold, and the surface mount ones are marked with 472.
Best Practice Checklist
- Always read from the correct end of the resistor: When reading the value, turn the gold or silver end to the right.
- Use the color code chart: Stick a color code chart on the workbench for easy reference at any time.
- Check tolerance needs: Select the tolerance as needed – 1% for precision analog circuits and 5% for general circuits are sufficient.
- Verify with a meter: If the color wheel is not clear, burnt or you are not sure, just measure it with a multimeter.
- Substitute carefully: When replacing resistors, try to find the closest standard value, and the tolerance should at least not be worse than the original one.
